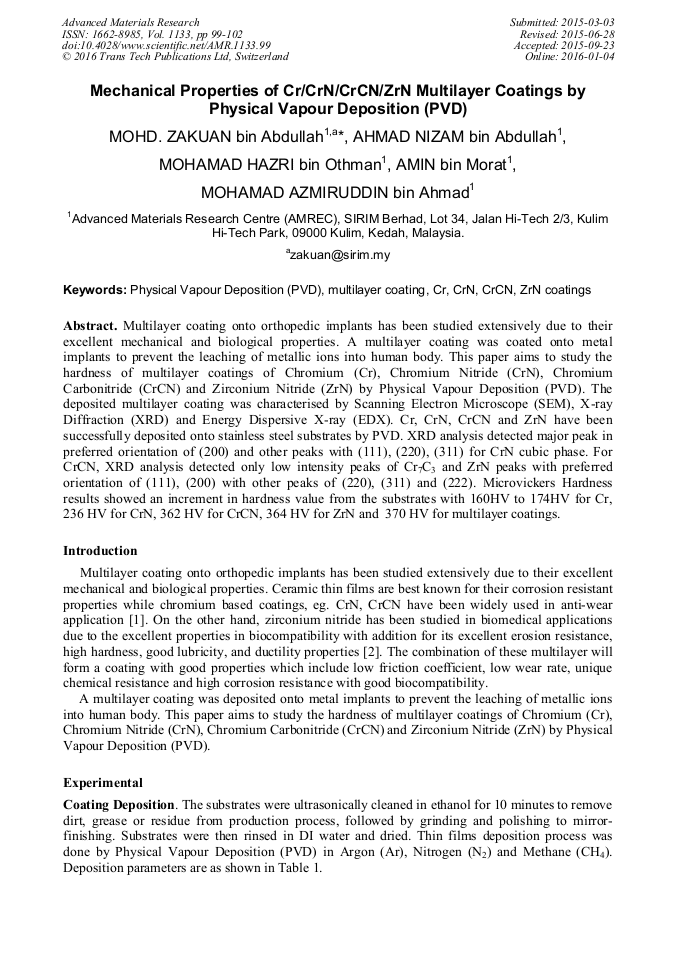

Mechanical Properties of Cr/CrN/CrCN/ZrN Multilayer Coatings by Physical Vapour Deposition (PVD)

Abstract:

Multilayer coating onto orthopedic implants has been studied extensively due to their excellence mechanical and biological properties. A multilayer coating was coated onto metal implants to prevent the leaching of metallic ions into human body. This paper aims to study the hardness of multilayer coatings of Chromium (Cr), Chromium Nitride (CrN), Chromium Carbonitride (CrCN) and Zirconium Nitride (ZrN) by Physical Vapour Deposition (PVD). The deposited multilayer coating was characterised by Scanning Electron Microscope (SEM), X-ray Diffraction (XRD) and Energy Dispersive X-ray (EDX). Cr, CrN, CrCN and ZrN have been successfully deposited onto stainless steel substrates by PVD. XRD analysis detected major peak in preferred orientation of (200) and other peaks with (111), (220), (311) for CrN cubic phase. For CrCN, XRD analysis detected only low intensity peaks of Cr₇C₃ and ZrN peaks with preferred orientation of (111), (200) with other peak (220), (311) and (222). Microvickers Hardness results showed an increment in hardness value from substrates with 160HV to 174HV for Cr, 236HV for CrN, 362HV for CrCN, 364HV for ZrN and 370HV for multilayer coatings.

• Periodical: Advanced Materials Research (Volume 1133)
• Pages: 99-102
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1133.99
• Online since: January 2016
• Authors: Mohd Zakuan bin Abdullah*, Ahmad Nizam bin Abdullah, Mohamad Hazri bin Othman, Amin bin Morat, Mohamad Azmiruddin bin Ahmad
• Keywords: Cr, CrCN, CrN, Multilayer Coating, Physical Vapour Deposition (PVD), ZrN Coatings

References

[1] B. Warcholin ́ski, A. Gilewicz, Z. Kuklin ́ski, P. Myslin, Arc-evaporated CrN, CrN and CrCN coatings, Vacuum. 83 (2009) 715 - 718.

DOI: 10.1016/j.vacuum.2008.05.005

[2] Y. Xin, Chenglong Liu, Kaifu Huo, Guoyi Tang, Xiubo Tian, Paul K. Chu, Corrosion behavior of ZrN/Zr coated biomedical AZ91 magnesium alloy, Surface & Coatings Technology. 203 (2009) 2554 - 2557.

DOI: 10.1016/j.surfcoat.2009.02.074

[3] G.G. Fuentes, M.J. Díaz de Cerio, J.A. García, R. Martínez, R. Bueno, R.J. Rodríguez, M. Rico, F. Montalá, Yi Qin, Gradient CrCN cathodic arc PVD coatings, Surface & Coatings Technology. 203 (2008) 670 - 674.

DOI: 10.1016/j.surfcoat.2008.08.079

[4] J. Romero, E. Martinez, J. Esteve, A. Lousa, Nanometric chromium nitride-chromium carbide multilayers by R.F. magnetron sputtering, Surface and Coatings Technology. 180 - 181 (2004) 335 - 340.

DOI: 10.1016/j.surfcoat.2003.10.082

[5] B. Warcholinski, A. Gilewicz, Z. Kuklin ski, P. Myslinski, Arc-evaporated CrN, CrN and CrCN coatings, Vacuum. 83 (2009) 715 - 718.

DOI: 10.1016/j.vacuum.2008.05.005

[6] S. H. Huang, Siao-Fan Chen, Yu-Chu Kuo, Chaur-Jeng Wang, Jyh-Wei Lee, Yu-Chen Chan, Hsien-Wei Chen, Jenq-Gong Duh, Tsung-Eong Hsieh, Mechanical and tribological properties evaluation of cathodic arc deposited CrN/ZrN multilayer coatings, Surface & Coatings Technology. 206 (2011).

DOI: 10.1016/j.surfcoat.2011.10.029

[7] B. Warcholinski N, A. Gilewicz, J. Ratajski, Cr2N/CrN multilayer coatings for wood machining tools, Tribology International. 44 (2011) 1076 - 1082.

DOI: 10.1016/j.triboint.2011.05.004
