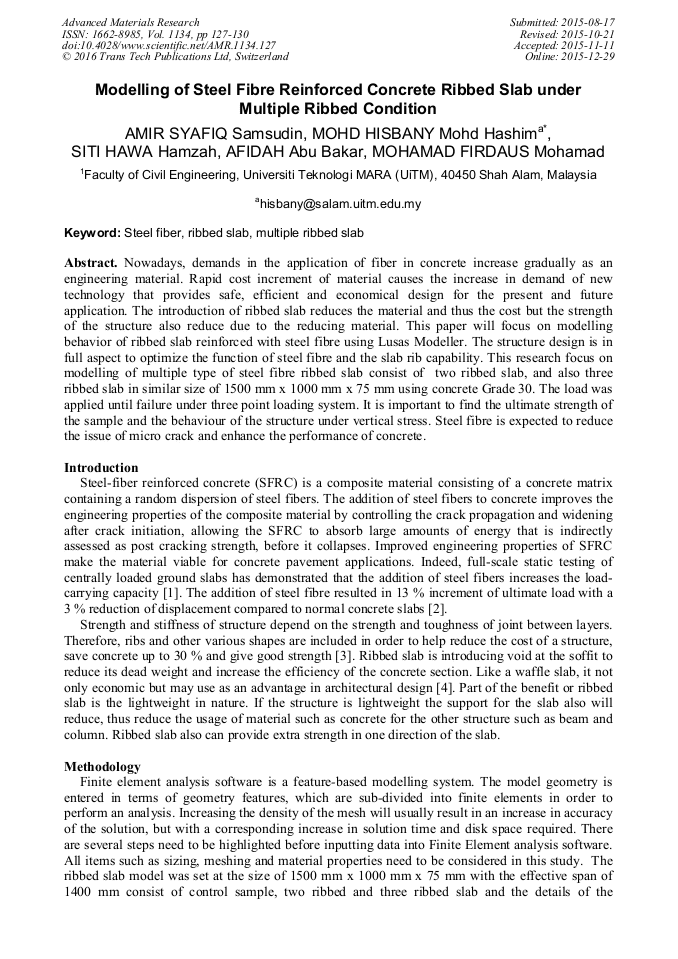

Modelling of Steel Fibre Reinforced Concrete Ribbed Slab under Multiple Ribbed Condition

Abstract:

Nowadays, demands in the application of fiber in concrete increase gradually as an engineering material. Rapid cost increment of material causes the increase in demand of new technology that provides safe, efficient and economical design for the present and future application. The introduction of ribbed slab reduces the material and thus the cost but the strength of the structure also reduce due to the reducing material. This paper will focus on modelling behavior of ribbed slab reinforced with steel fibre using Lusas Modeller. The structure design is in full aspect to optimize the function of steel fibre and the slab rib capability. This research focus on modelling of multiple type of steel fibre ribbed slab consist of two ribbed slab, and also three ribbed slab in similar size of 1500mm x 1000mm x 75mm using concrete Grade 30. Load was applied until failure under three point loading system. It is importance to find the ultimate strength of the sample and the behavior of structure under vertical stress. Steel fibre is expected to reduce the issue of micro crack and enhance the performance of concrete.

You might also be interested in these eBooks

Current Materials for Industrial Technologies and Engineering Practice

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1134)

Pages:

127-130

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1134.127

Citation:

Cite this paper

Online since:

December 2015

Authors:

Amir Syafiq Samsudin, Mohd Hisbany Mohd Hashim*, Siti Hawa Hamzah, Afidah Abu Bakar, Mohamad Firdaus Mohamad

Keywords:

Multiple Ribbed Slab, Ribbed Slab, Steel Fiber

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Chanh, N.V. Steel Fibre Reinforced Concrete. Faculty of Civil Engineering. Ho Chi Minh City University of Technology, Seminar Material, pp.108-116. Ho Chi Minh City. (2004).

DOI: 10.32508/stdjet.v5i2.972

Google Scholar

[2] Nurhaniza A. R, Sit Hawa, H. and Abdulrazzaq. A. Effectiveness of Stefib in Composite Structural Member. In Journal of Engineering Science and Technology Vol. 7, No. 5 (2012). Kuala Lumpur. 2012, 552 – 562.

Google Scholar

[3] Mindaugas P. & Juozas V. Analysis of bending capacity of composite steel-concrete slabs with steel fibre reinforced concrete. (2010).

Google Scholar

[4] Abdul-Wahab, H.M.S. and Khalil, M.H. Rigidity and strength of Orthotropic Reinforced Concrete Waffle Slab. In Journal of Structural Engineering, Vol 126. Brighton. 200.

DOI: 10.1061/(asce)0733-9445(2000)126:2(219)

Google Scholar

[5] Nurhaniza A. R, Sit Hawa, H. and Wong, E.T. Effective Performance of Steel Fibre Reinforced Concrete Wall Panel. In IBS Component. In ICCBT 2008 - C - (18) –. 2008, pp.203-212.

Google Scholar

[6] Timuran Engineering Sdn. Bhd., How to Choose Your Required Steel Fibres, IEM JURUTERA Bulletin, 2007, 4, 32.

Google Scholar

[7] Oliveira, J., Araújo, D. L., Guerra, E.A., and Gomes, F.M.P., The Influnce of Steel Fibre Aspect Ratio on the Mechanical Performance of Concrete, Journal of Construction and Building Materials, 2007, 1-6.

Google Scholar
