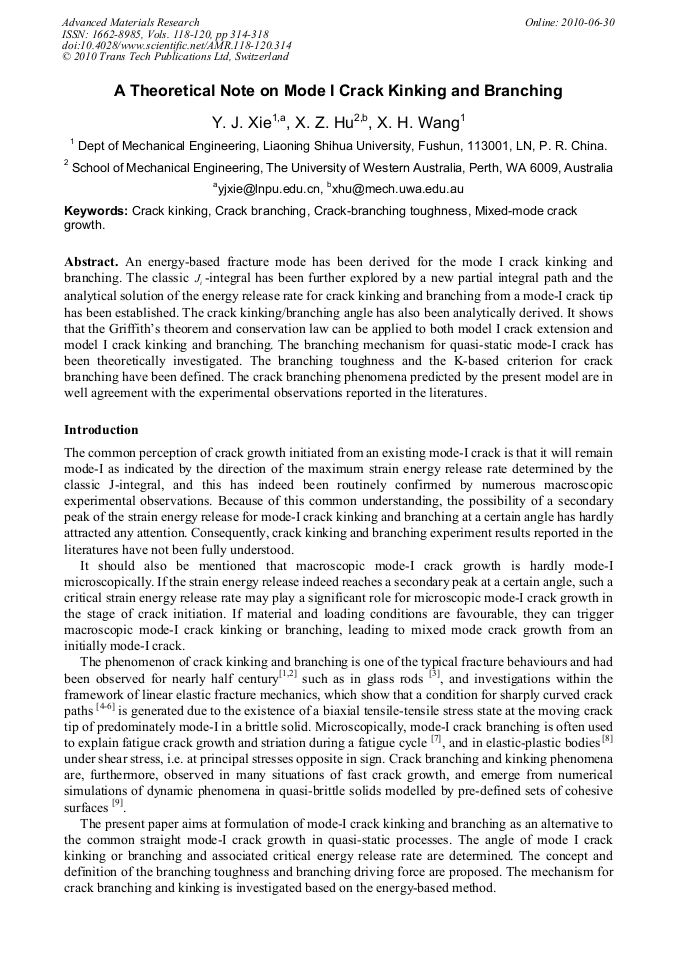

A Theoretical Note on Mode I Crack Kinking and Branching

Abstract:

An energy-based fracture mode has been derived for the mode I crack kinking and branching. The classic -integral has been further explored by a new partial integral path and the analytical solution of the energy release rate for crack kinking and branching from a mode-I crack tip has been established. The crack kinking/branching angle has also been analytically derived. It shows that the Griffith’s theorem and conservation law can be applied to both model I crack extension and model I crack kinking and branching. The branching mechanism for quasi-static mode-I crack has been theoretically investigated. The branching toughness and the K-based criterion for crack branching have been defined. The crack branching phenomena predicted by the present model are in well agreement with the experimental observations reported in the literatures.

• Periodical: Advanced Materials Research (Volumes 118-120)
• Pages: 314-318
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.118-120.314
• Online since: June 2010
• Authors: Y.J. Xie, Xiao Zhi Hu, X.H. Wang
• Keywords: Crack Branching, Crack Kinking, Crack-Branching Toughness, Mixed-Mode Crack-Growth

References

[1] A.B. J. Clark, G.R. Irwin: Exp. Mech. Vol. 6(1966), p.321.

[2] S. Mostovoy, H.R. Smiths, R.G. Lingwall, E.J. Ripling: Eng. Fract. Mech. Vol. 3(1971), p.291.

[3] V. K. Kinra, H. Kolsky: Eng. Frac. Mech. Vol. 9(1977), p.423.

[4] B. Cotterell, J. R. Rice: Int. J. Fract. Vol. 16(1980), p.155.

[5] G. Bolzon, G. Cocchetti: Arch. of Appl. Mech. Vol. 68(1998), p.513.

[6] Y. Sumi, S. Nemat-Nasser, L.M. Keers: Eng. Fracture Mech. 22(1985), p.759.

[7] R. Zeng, M.O. Wang: Eng. Fract. Mech. Vol. 49(1994), p.487.

[8] M. Erbe, K. Galanulis, R. Ritter, E. Steck: Eng. Fract. Mech. 48(1994), p.103.

[9] Xu, X. P., A. Needleman: J. Mech. Phys. Solids. Vol. 42(1994), p.397.

[10] Y.J. Xie, D.A. Hills: Eng. Fract. Mech. Vol. 75 (2008) p.1223.

[11] Y.J. Xie, K.Y. Lee, X.Z. Hu, Y.M. Cai: Eng Fract. Mech. Vol. 76(2009), p.949.

[12] Y.J. Xie, X.H. Wang, Y.Y. Wang: Int. J. of Solids and Struct. Vol. 44(2007), p.4830.

[13] J. D. Eshelby: Phil. Trans. Roy. Soc. London Ser. Vol. A, 244(1951), p.87.

[14] G. C. Sih: Inelastic Behavior of Solids, (Mc-Graw-Hill Co., New York 1969).

[15] B. Budiansky, J. R Rice: ASME J. Appl. Mech. Vol. 40(1973), p.201.

[16] Y. J. Xie, H. Xu, P. N. Li: Theorl. App. Fract. Mech. Vol. 29(1998), p.195.

[17] Y. J. Xie:. Int. J. Pres. Vessels and Piping, Vol. 75(1998), p.865.

[18] Y.J. Xie, X. Zhang, X. H. Wang: Int. J. Solids and Struct. Vol. 38(2001), p.6953.

[19] Y. J. Xie: Int. J. Solids Struct., Vol. 37(2000), p.5189.
