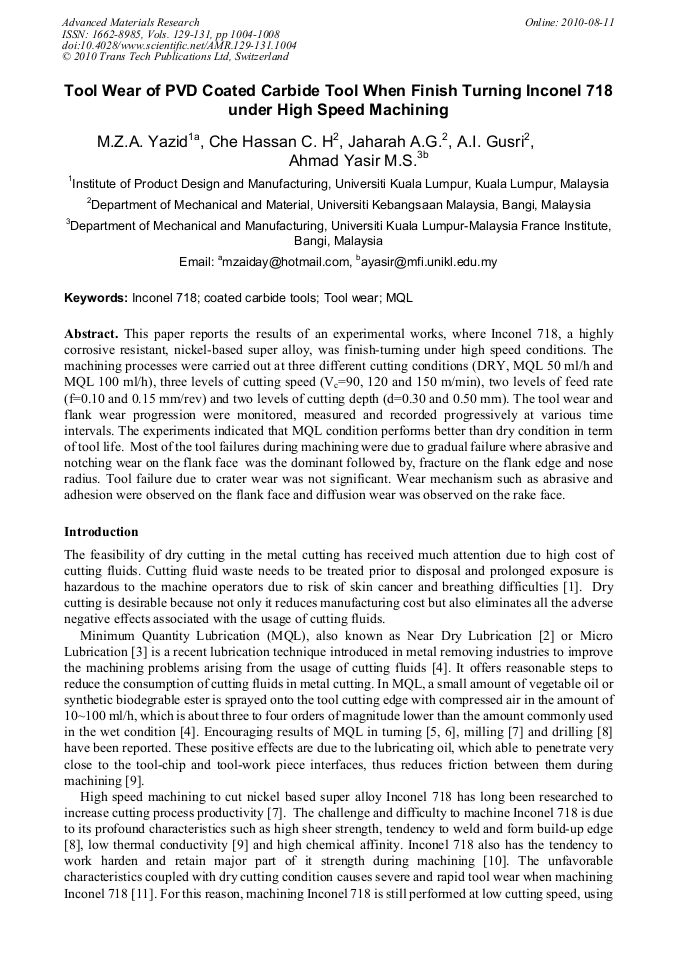

Tool Wear of PVD Coated Carbide Tool when Finish Turning Inconel 718 under High Speed Machining

Abstract:

This paper reports the results of an experimental works, where Inconel 718, a highly corrosive resistant, nickel-based super alloy, was finish-turning under high speed conditions. The machining processes were carried out at three different cutting conditions (DRY, MQL 50 ml/h and MQL 100 ml/h), three levels of cutting speed (Vc=90, 120 and 150 m/min), two levels of feed rate (f=0.10 and 0.15 mm/rev) and two levels of cutting depth (d=0.30 and 0.50 mm). The tool wear and flank wear progression were monitored, measured and recorded progressively at various time intervals. The experiments indicated that MQL condition performs better than dry condition in term of tool life. Most of the tool failures during machining were due to gradual failure where abrasive and notching wear on the flank face was the dominant followed by, fracture on the flank edge and nose radius. Tool failure due to crater wear was not significant. Wear mechanism such as abrasive and adhesion were observed on the flank face and diffusion wear was observed on the rake face.

• Periodical: Advanced Materials Research (Volumes 129-131)
• Pages: 1004-1008
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.129-131.1004
• Online since: August 2010
• Authors: M.Z.A. Yazid, C.H. Che Hassan, A.G. Jaharah, A.I. Gusri, M.S. Ahmad Yasir
• Keywords: Coated Carbide Tool, Inconel 718, MQL, Tool Wear

References

[1] M. Nalbant, A. Altin, and H. Gokkaya, The effect of cutting speed and cutting tool geometry on machinability properties of nickel-base Inconel 718 super alloys, Materials & Design, vol. 28, pp.1334-1338, (2007).

DOI: 10.1016/j.matdes.2005.12.008

[2] F. Klocke and G. Eisenblätter, Dry Cutting, CIRP Annals - Manufacturing Technology, vol. 46, pp.519-526, (1997).

DOI: 10.1016/s0007-8506(07)60877-4

[3] Y. Kamata and T. Obikawa, High speed MQL finish-turning of Inconel 718 with different coated tools, Journal of Materials Processing Technology, vol. 192-193, pp.281-286, (2007).

DOI: 10.1016/j.jmatprotec.2007.04.052

[4] N. R. Dhar, M. W. Islam, S. Islam, and M. A. H. Mithu, The influence of minimum quantity of lubrication (MQL) on cutting temperature, chip and dimensional accuracy in turning AISI-1040 steel, Journal of Materials Processing Technology, vol. 171, pp.93-99, (2006).

DOI: 10.1016/j.jmatprotec.2005.06.047

[5] A. Attanasio, M. Gelfi, C. Giardini, and C. Remino, Minimal quantity lubrication in turning: Effect on tool wear, Wear, vol. 260, pp.333-338, (2006).

DOI: 10.1016/j.wear.2005.04.024

[6] P. S. Sreejith, Machining of 6061 aluminium alloy with MQL, dry and flooded lubricant conditions, Materials Letters, vol. 62, pp.276-278, (2008).

DOI: 10.1016/j.matlet.2007.05.019

[7] A. S. M. Rahman, M.U. Salam, Experimental Evaluation on the Effect of Minimal Quantities of Lubricant in Milling, International Journal of Machine Tools & Manufacture, vol. 42, pp.539-547, (2002).

DOI: 10.1016/s0890-6955(01)00160-2

[8] F. Klocke and G. Eisenblatter, Machinability Investigation of the Drilling Process Using Minimal Cooling Lubrication Techniques, Production Engineering, vol. 4, pp.19-24, (1997).

[9] E. O. Ezugwu, J. Bonney, and Y. Yamane, An overview of the machinability of aeroengine alloys, Journal of Materials Processing Technology, vol. 134, pp.233-253, (2003).

DOI: 10.1016/s0924-0136(02)01042-7

[10] Metal Handbook vol. Vol. 9: ASM International, USA, (1990).

[11] A. Devillez, F. Schneider, S. Dominiak, D. Dudzinski, and D. Larrouquere, Cutting forces and wear in dry machining of Inconel 718 with coated carbide tools, Wear, vol. 262, pp.931-942, (2007).

DOI: 10.1016/j.wear.2006.10.009

[12] E. O. Ezugwu, Z. M. Wang, and A. R. Machado, The machinability of nickel-based alloys: a review, Journal of Materials Processing Technology, vol. 86, pp.1-16, (1998).

[13] P. C. Jindal, A. T. Santhanam, U. Schleinkofer, and A. F. Shuster, Performance of PVD TiN, TiCN, and TiAlN coated cemented carbide tools in turning, International Journal of Refractory Metals and Hard Materials, vol. 17, pp.163-170, (1999).

DOI: 10.1016/s0263-4368(99)00008-6

[14] C. H. H. A. Jawaid, A. Abdullah., Tool wear characteristics in Turning Titanium Alloy Ti-6246, Journal of Materials Processing Technology, vol. 92-93, pp.329-334, 1999.E. O.

DOI: 10.1016/s0924-0136(99)00246-0

[15] Y. Kamata and T. Obikawa, High speed MQL finish-turning of Inconel 718 with different coated tools, Journal of Materials Processing Technology, vol. 192-193, pp.281-286, (2007).

DOI: 10.1016/j.jmatprotec.2007.04.052

[16] Y.S. Liao, H.M. Lin. 'Mechanism of minimum quantity lubrication in high speed milling of hardened steel, Journal of Machine Tool and Manufacture, 47, pp.1660-1666, (2007).

DOI: 10.1016/j.ijmachtools.2007.01.007

[17] Ezugwu, J. Bonney, D. A. Fadare, and W. F. Sales, Machining of nickel-base, Inconel 718, alloy with ceramic tools under finishing conditions with various coolant supply pressures, Journal of Materials Processing Technology, vol. 162-163, pp.609-614, (2005).

DOI: 10.1016/j.jmatprotec.2005.02.144
