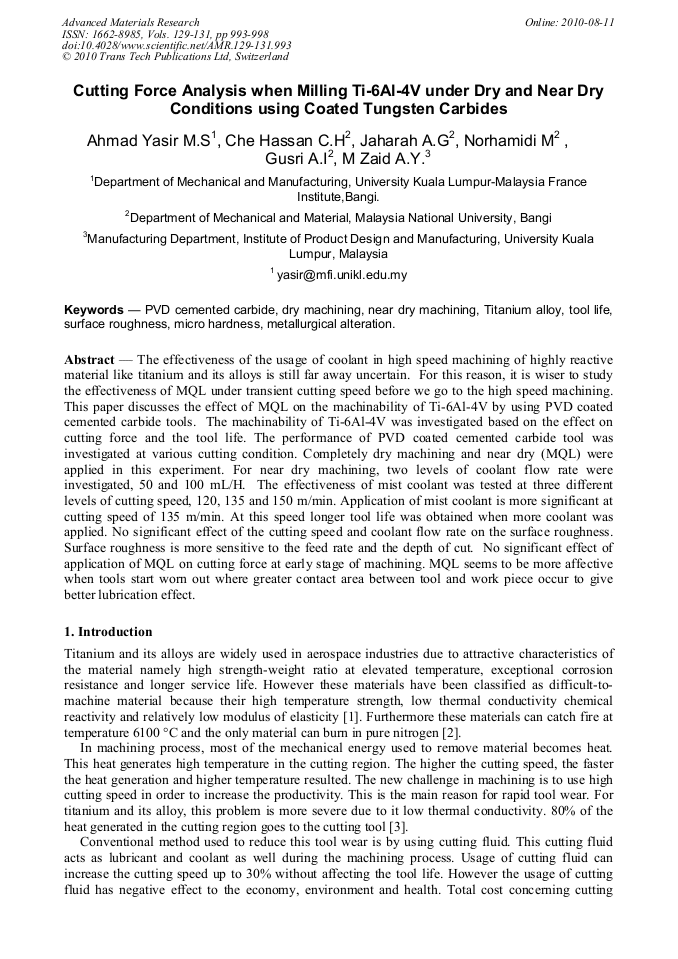

Cutting Force Analysis when Milling Ti-6Al-4V under Dry and Near Dry Conditions Using Coated Tungsten Carbides

Abstract:

The effectiveness of the usage of coolant in high speed machining of highly reactive material like titanium and its alloys is still far away uncertain. For this reason, it is wiser to study the effectiveness of MQL under transient cutting speed before we go to the high speed machining. This paper discusses the effect of MQL on the machinability of Ti-6Al-4V by using PVD coated cemented carbide tools. The machinability of Ti-6Al-4V was investigated based on the effect on cutting force and the tool life. The performance of PVD coated cemented carbide tool was investigated at various cutting condition. Completely dry machining and near dry (MQL) were applied in this experiment. For near dry machining, two levels of coolant flow rate were investigated, 50 and 100 mL/H. The effectiveness of mist coolant was tested at three different levels of cutting speed, 120, 135 and 150 m/min. Application of mist coolant is more significant at cutting speed of 135 m/min. At this speed longer tool life was obtained when more coolant was applied. No significant effect of the cutting speed and coolant flow rate on the surface roughness. Surface roughness is more sensitive to the feed rate and the depth of cut. No significant effect of application of MQL on cutting force at early stage of machining. MQL seems to be more affective when tools start worn out where greater contact area between tool and work piece occur to give better lubrication effect.

• Periodical: Advanced Materials Research (Volumes 129-131)
• Pages: 993-998
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.129-131.993
• Online since: August 2010
• Authors: M.S. Ahmad Yasir, C.H. Che Hassan, A.G. Jaharah, M. Norhamidi, A.I. Gusri, A.Y. Zaid
• Keywords: Dry Machining, Metallurgical Alteration, Microhardness, Near Dry Machining, PVD Cemented Carbide, Surface Roughness (SR), Titanium Alloy, Tool Life

References

[1] E.O. Ezugwu, Key improvements in the machining of difficult-to-cut aerospace superalloys, International Journal of Machine Tools and Manufacturer, pp.1353-1367, (2005).

DOI: 10.1016/j.ijmachtools.2005.02.003

[2] Machining Titanium and its alloys, (2006).

[3] E.O. Ezugwu, J Booney, and Y. Yamane, An overview of the machinability of earoengine alloys, Journal of Materials Processing Technology, pp.233-253, (2003).

DOI: 10.1016/s0924-0136(02)01042-7

[4] Titanium, (2004).

[5] N.R. Dhar, M.W. Islam, S. Islam, and M.A.H. Mithu, The influence of minimum quantity of lubrication (MQL) on cutting temperature, chip and dimensional accuracy in turning AISI-1040 steel, Journal of Materials Processing Technology, pp.93-99, (2006).

DOI: 10.1016/j.jmatprotec.2005.06.047

[6] N.R. Dhar, M.T. Ahmed, and S. Islam, An experimental investigation on effect of minimum quantity lubrication in machining AISI 1040 steel, International Journal of Machine Tools and Manufacturer, pp.748-753, (2007).

DOI: 10.1016/j.ijmachtools.2006.09.017

[7] C.H. Che Haron, Tool life and surface integrity in turning titanium alloy, Journal of Materials Processing Technology, pp.231-237, (2001).

DOI: 10.1016/s0924-0136(01)00926-8

[8] Sandro Cardoso Santos, Wisley Falco Sales, Flavio Jose da Silva , Sinesio Domingues Franco, and Marcio Bacci da Silva, Tribological characterization of PVD coatings for cutting tools, International Journal of Surface and Coating Technology, pp.141-148, (2003).

DOI: 10.1016/j.surfcoat.2003.10.153

[9] M. Rahman, A. Senthil Kumar, and M.U. Salam, Experimental evaluation on the effect of minimal quantities of lubricant in milling, International Journal of Machine Tools and Manufacturer, pp.539-547, (2002).

DOI: 10.1016/s0890-6955(01)00160-2

[10] N.R. Dhar, M. Kamruzzaman, and Mahiuddin Ahmed, Effect of minimum quantity lubrication (MQL) on tool wear and surface roughness in turning AISI-4340 steel, Journal of Materials Processing Technology, pp.299-304, (2006).

DOI: 10.1016/j.jmatprotec.2005.09.022

[11] M. Sokovic, J. Kopac, L.A. Dobrzanski, and M. Adamiak, Wear of PVD-coated solid carbide end mills in dry high-speed cutting, Journal of Materials Processing Technology, pp.422-426, (2004).

DOI: 10.1016/j.jmatprotec.2004.09.066

[12] M. Rahman, A. Senthil Kumar, and M. U. Salam, Experimental evaluation on the effect of minimal quantities of lubricant in milling, International Journal of Machine Tools and Manufacturer, pp.539-547, (2002).

DOI: 10.1016/s0890-6955(01)00160-2

[13] L.N. Lopez de Lacalle, C. Angulo, A. Lamikiz, and J.A. Sanchez, Experimental and numerical investigation of the effect of spray cutting fluids in high speed milling, Journal of Materials Processing Technology, (2005).

DOI: 10.1016/j.jmatprotec.2005.08.014

[14] Mustafizur Rahman, Zhi-Gang Wang, and Yoke-San Wong, High speed machining of Titanium alloys, presented at International Conference on Manufacturing Science and Technology, Malaysia, (2006).
