Preparation and Characterization of Degradable Poly(silyl ester) and the Self-Crosslinking Reaction of Poly(silyl ester) without Solvent

De Jie Zhou; Nian Feng Han; Xin De Tang

doi:10.4028/www.scientific.net/AMR.129-131.862

Paper Titles

Structures and Properties of Alkyl-Phosphate Potassium Salts
p.842

TiO₂-HY(FeY) Composites Used as Photocatalysts on Methyl Orange Degradation
p.848

Statistical Models to Predict Fresh Properties of Self-Consolidating Concrete
p.853

Study on Synthesis and Properties of a Novel Borate Ester Surfactant
p.857

Preparation and Characterization of Degradable Poly(silyl ester) and the Self-Crosslinking Reaction of Poly(silyl ester) without Solvent
p.862

Numerical Simulation of Welding Distortion Using Shrinkage Force Approach and Application
p.867

Study on Preparation and Properties of Copolymer of Phenol and Acrylamide by Enzyme Catalyzed Polymerization
p.872

Protection of Nano Coating to the Through-Flow Parts of Hydraulic Turbine
p.877

Design and Implementation of the Block Cipher-SMS4 IP Core
p.881

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 129-131Preparation and Characterization of Degradable...

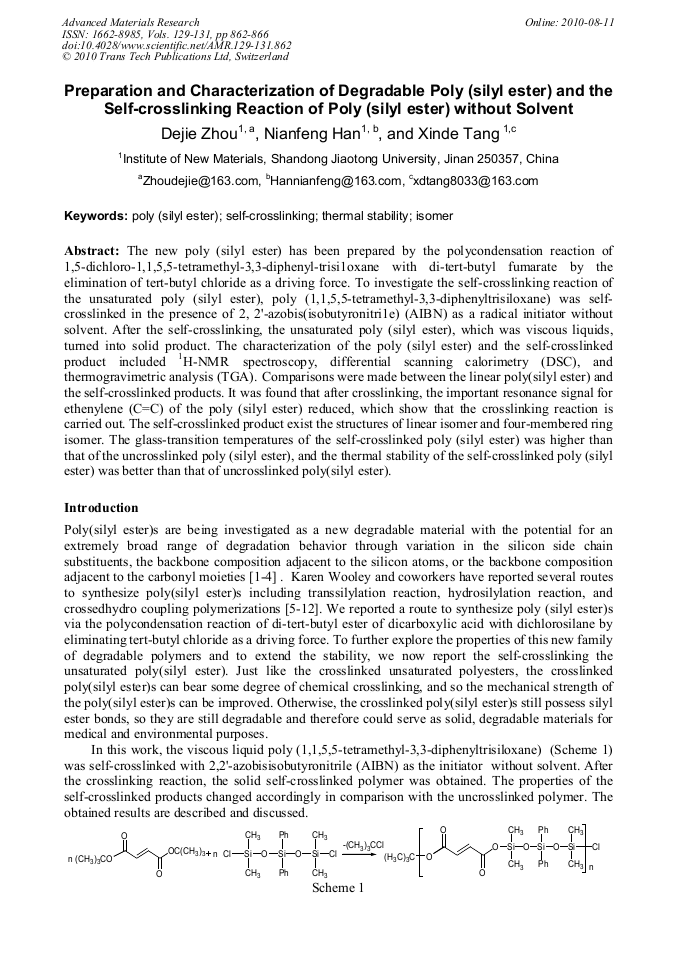

Preparation and Characterization of Degradable Poly(silyl ester) and the Self-Crosslinking Reaction of Poly(silyl ester) without Solvent

Abstract:

The new poly(silyl ester) has been prepared by the polycondensation reaction of 1,5-dichloro-1,1,5,5-tetramethyl-3,3-diphenyl-trisi1oxane with di-tert-butyl fumarate by the elimination of tert-butyl chloride as a driving force. To investigate the self-crosslinking reaction of the unsaturated poly(silyl ester), poly(1,1,5,5-tetramethyl-3,3-diphenyltrisiloxane) was self- crosslinked in the presence of 2, 2'-azobis(isobutyronitri1e) (AIBN) as a radical initiator without solvent. After the self-crosslinking, the unsaturated poly(silyl ester), which was viscous liquids, turned into solid product. The characterization of the poly(silyl ester) and the self-crosslinked product included 1H-NMR spectroscopy, differential scanning calorimetry (DSC), and thermogravimetric analysis (TGA). Comparisons were made between the linear poly(silyl ester) and the self-crosslinked products. It was found that after crosslinking, the important resonance signal for ethenylene (C=C) of the poly(silyl ester) reduced, which show that the crosslinking reaction is carried out. The self-crosslinked product exist the structures of linear isomer and four-membered ring isomer. The glass-transition temperatures of the self-crosslinked poly(silyl ester) was higher than that of the uncrosslinked poly(silyl ester), and the thermal stability of the self-crosslinked poly(silyl ester) was better than that of uncrosslinked poly(silyl ester).
