Experiment Research on Grinding of Optical Glass with Indigenously Developed Monolayer Brazed Diamond Grinding Wheel

Abstract:

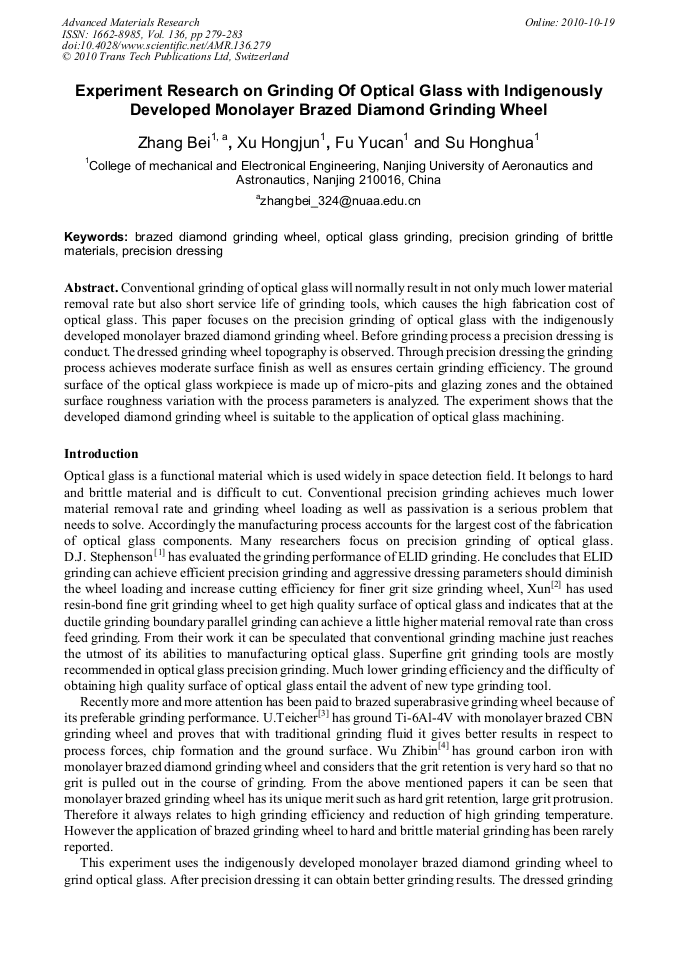

Article Preview

Conventional grinding of optical glass will normally result in not only much lower material removal rate but also short service life of grinding tools, which causes the high fabrication cost of optical glass. This paper focuses on the precision grinding of optical glass with the indigenously developed monolayer brazed diamond grinding wheel. Before grinding process a precision dressing is conduct. The dressed grinding wheel topography is observed. Through precision dressing the grinding process achieves moderate surface finish as well as ensures certain grinding efficiency. The ground surface of the optical glass workpiece is made up of micro-pits and glazing zones and the obtained surface roughness variation with the process parameters is analyzed. The experiment shows that the developed diamond grinding wheel is suitable to the application of optical glass machining.

Info:

Periodical:

Edited by:

Dunwen Zuo, Hun Guo, Hongli Xu, Chun Su, Chunjie Liu and Weidong Jin

Pages:

279-283

Citation:

B. Zhang et al., "Experiment Research on Grinding of Optical Glass with Indigenously Developed Monolayer Brazed Diamond Grinding Wheel", Advanced Materials Research, Vol. 136, pp. 279-283, 2010

Online since:

October 2010

Export:

Price:

$41.00

[1] D.J. Stephenson, X. Sun and C. Zervos: International Journal of Machine Tools & Manufacture Vol. 46 (2006), p.1053.

[2] X. Sun, D.J. Stephenson, O. Ohnishi and A. Baldwin: Journal of Precision Engineering Vol. 30 (2006), p.145.

[3] U. Teicher, A. Ghosh, A.B. Chattopadhyay and K. Künanz: International Journal of Machine Tools & Manufacture Vol. 46 (2006), p.620.

[4] Wu Zhibin, Xiao Bing and Xu Hongjun: Journal of Aviation precision manufacturing Technology Vol. 37 (2001), p.18.

[5] Xu Hongjun, Fu Yucan, Xiao bing, Xu Jiuhua and Su Honghua: Chinese patentCN 1528565A (2004).

[6] Bifano. Thomas: Gary (Ph. D dissertation of North Carolina State University, 1988). (a) (b) (c) (d) Fig 5 microscopic vision of the ground surface of workpiece K9 (a), (c) workpiece speed 1m/min; (b), (d) workpiece speed 10m/min; (a), (b) magnification of 350; (c), (d) magnification of 1750 grinding texture micro-fractured pits.
