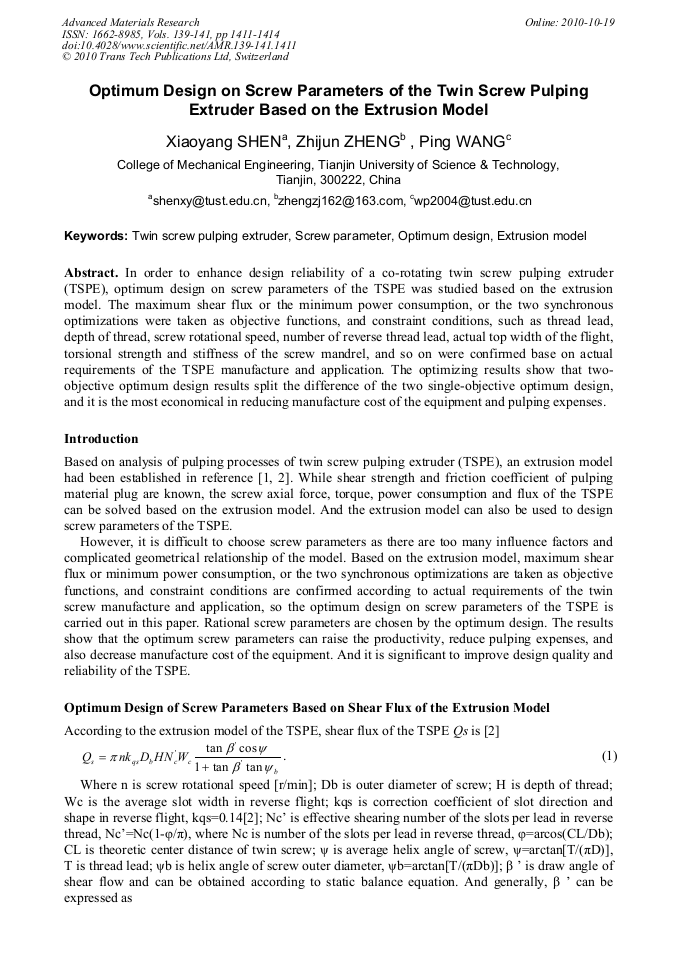

Optimum Design on Screw Parameters of the Twin Screw Pulping Extruder Based on the Extrusion Model

Abstract:

In order to enhance design reliability of a co-rotating twin screw pulping extruder (TSPE), optimum design on screw parameters of the TSPE was studied based on the extrusion model. The maximum shear flux or the minimum power consumption, or the two synchronous optimizations were taken as objective functions, and constraint conditions, such as thread lead, depth of thread, screw rotational speed, number of reverse thread lead, actual top width of the flight, torsional strength and stiffness of the screw mandrel, and so on were confirmed base on actual requirements of the TSPE manufacture and application. The optimizing results show that two-objective optimum design results split the difference of the two single-objective optimum design, and it is the most economical in reducing manufacture cost of the equipment and pulping expenses.

You might also be interested in these eBooks

Manufacturing Engineering and Automation I

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 139-141)

Pages:

1411-1414

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.139-141.1411

Citation:

Cite this paper

Online since:

October 2010

Authors:

Xiao Yang Shen, Zhi Jun Zheng, Ping Wang

Keywords:

Extrusion Model, Optimization Design, Screw Parameter, Twin Screw Pulping Extruder

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] X.Y. Shen, P. Wang and J.T. Dong: Journal of Tianjin University of Science & Technology Vol. 23 (2008), No. 3, p.52 (In Chinese).

Google Scholar

[2] X. Y. Shen, P. Wang and S. G. Liu: Advanced Materials Research Vol. 97-101 (2010), p.240.

Google Scholar

[3] X. Z. Geng: Twin Screw Extrusion & Its Application (Light Industry Press in China, China 2003). (In Chinese).

Google Scholar

[4] P. Wang, X. Y. Shen and X. L. Zong: Advanced Materials Research Vol. 97-101(2010), p.245.

Google Scholar

[5] P. Wang, X. Y. Shen, J. H. Sun and et al: Journal of Tianjin University of Science & Technology Vol. 24(2009), No. 6, p.45 (In Chinese).

Google Scholar

[6] J. L. White: Twin screw extrusion-technology and principles (Carl Hanser Publishers, USA 1990).

Google Scholar

[7] Klemens Kohlgruber: Co-rotating twin-screw extruders fundamentals, technology, and applications (Carl Hanser Verlag, Germany 2008).

Google Scholar
