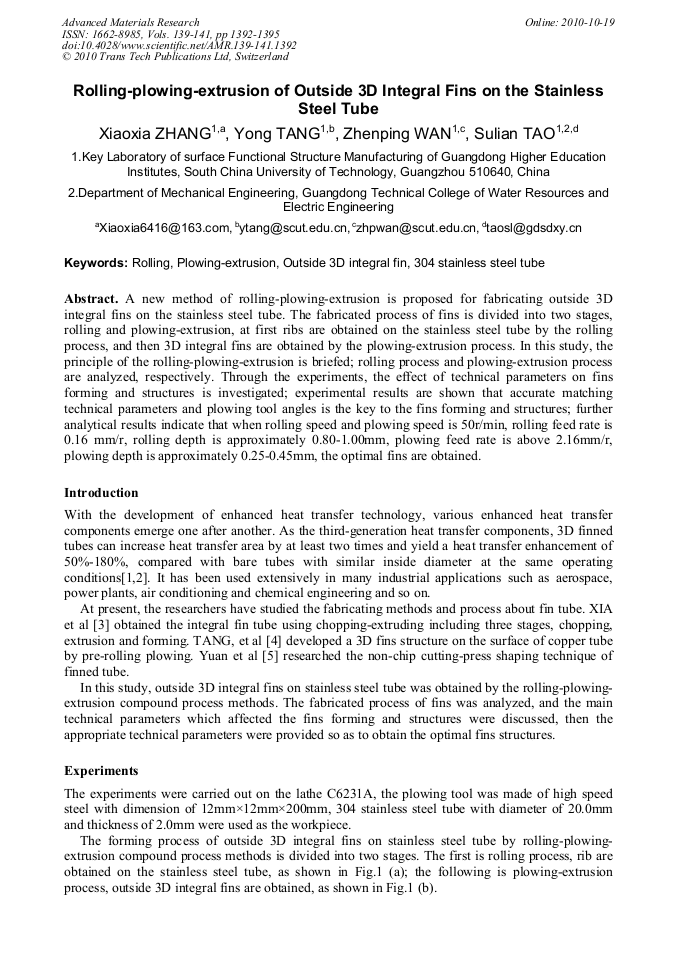

Rolling-Plowing-Extrusion of Outside 3D Integral Fins on the Stainless Steel Tube

Abstract:

A new method of rolling-plowing-extrusion is proposed for fabricating outside 3D integral fins on the stainless steel tube. The fabricated process of fins is divided into two stages, rolling and plowing-extrusion, at first ribs are obtained on the stainless steel tube by the rolling process, and then 3D integral fins are obtained by the plowing-extrusion process. In this study, the principle of the rolling-plowing-extrusion is briefed; rolling process and plowing-extrusion process are analyzed, respectively. Through the experiments, the effect of technical parameters on fins forming and structures is investigated; experimental results are shown that accurate matching technical parameters and plowing tool angles is the key to the fins forming and structures; further analytical results indicate that when rolling speed and plowing speed is 50r/min, rolling feed rate is 0.16 mm/r, rolling depth is approximately 0.80-1.00mm, plowing feed rate is above 2.16mm/r, plowing depth is approximately 0.25-0.45mm, the optimal fins are obtained

• Periodical: Advanced Materials Research (Volumes 139-141)
• Pages: 1392-1395
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.139-141.1392
• Online since: October 2010
• Authors: Xiao Xia Zhang, Yong Tang, Zhen Ping Wan, Su Lian Tao
• Keywords: Rolling , 304 Stainless Steel Tube, Outside 3D Integral Fin, Plowing-Extrusion

References

[1] BERGILES A E: Advanced enhancement-Third generation heat transfer technology, or the Final Frontier, Transaction of the Institute of Chemistry Engineering (Part A), Vol 79 (2001), pp.437-444.

[2] J.L. Lage: Tube-to-tube heat transfer degradation effect on finned-tube heat exchangers, Numerical Heat Transfer, Vol 39 (2001), pp.321-337.

DOI: 10.1080/10407780151063115

[3] W Xia, B Wu, Y Tang and B.Y. Ye: On chopping-extrusion of integral-fin copper tubes, Journal of Materials Processing Technology, Vol 138 (2003), pp.385-389.

DOI: 10.1016/s0924-0136(03)00103-1

[4] Y TANG, W XIA, S.D. LIU, Z.X. ZENG and B.Y. YE: Fin formation model during pre-roll ploughing of copper 3D outside fin tube, Trans Nonferrous Met Soc China, Vol 11(2001) no. 5, pp.712-716.

[5] Q. L Yuan, Y Li, J.M. Zheng and P. Y Li: Research on Cutting-press Shaping Process of Fin Tube, Chinese Journal of Mechanical Engineering, Vol 16(2005) no. 17, pp.1550-1553(in Chinese).
