Numerical Study on Influences of Process Parameters on Laser Tube Bending

Abstract:

Laser bending process of tubes is a new flexible forming process without rigid tools and external forces. The tube is formed by internal thermal stress induced by laser irradiation. The process simulation of laser bending of tubes is realized numerically. When the other parameters remain invariable, the laser bending angle augments with the increase of the laser power. The laser bending angle decreases with the increase of the scanning velocity. Meanwhile, the bending angle varies with the diameter of the laser spot. The angle begins to decrease when the laser spot diameter get to an optimum value. The bending angle enlarges if the scanning wrap angle augments. The bending angle is largest when the scanning wrap angle is 180°. When the scanning wrap angle is over 180°, the bending angle decreases with the increase of the scanning wrap angle. The relationship between the number of scans and the bending angle is about in direct ratio. The bending angle induced by the first irradiated time is the largest.

You might also be interested in these eBooks

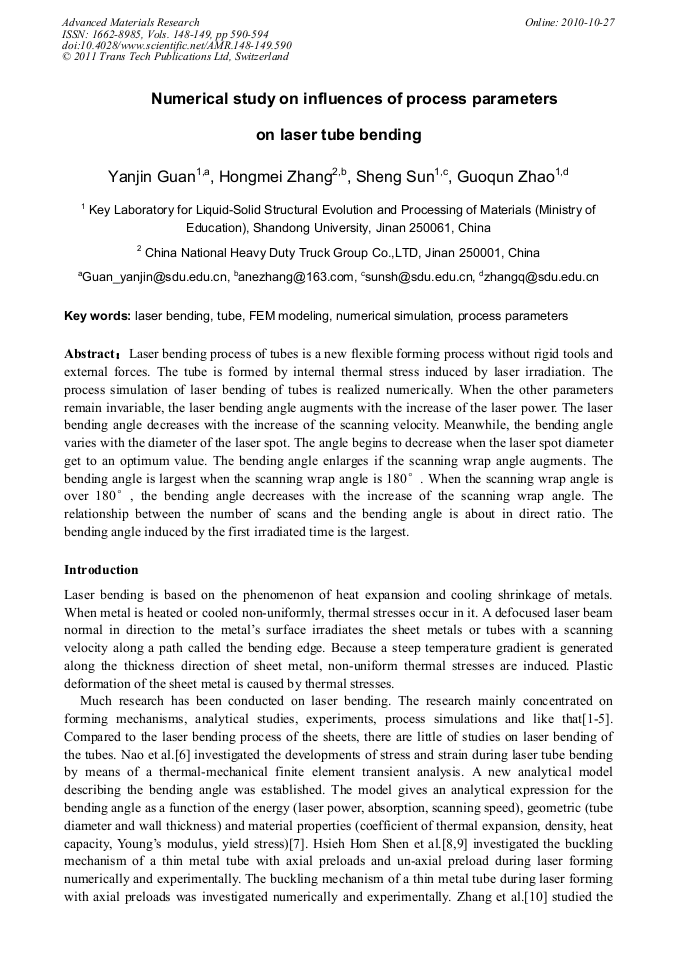

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 148-149)

Pages:

590-594

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.148-149.590

Citation:

Cite this paper

Online since:

October 2010

Authors:

Yan Jin Guan, Hong Mei Zhang, Sheng Sun, Guo Qun Zhao

Keywords:

FEM Modeling, Laser Bending, Numerical Simulation, Process Parameter, Tube

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M Geiger and F Vollertsen: CIRP Annals Vol. 42(1993), p.301.

Google Scholar

[2] Yan C. L, Chan K C amd Lee W B: J. Mater. Process. Tech. Vol. 82 (1998), p.117.

Google Scholar

[3] Guofei Chen and Xianfan Xu: J. Manuf. Sci. Eng. Vol. 123 (2001), p.66.

Google Scholar

[4] An K Kyrsanidi, Th B Kermanidis and Sp G Pantelakis: J. Mater. Process. Tech. Vol. 87 (1999), p.281.

Google Scholar

[5] Z Hu, M Labudovic, H Wang and R Kovacevic: Int. J. Mach. Tool Manufact. Vol. 41 (2001), p.589.

Google Scholar

[6] N. Hao and L. Li: Appl. Surf. Sci. Vol. 208-209 (2003), p.437.

Google Scholar

[7] N. Hao and L. L: Appl. Surf. Sci. Vol. 208-209 (2003), p.432.

Google Scholar

[8] Hsieh Hom-Shen and Lin Jehnming: Optic Laser Tech. Vol. 37 (2005), p.402.

Google Scholar

[9] Hsieh Hom-Shen and Lin Jehnming: Int. J. Mach. Tool Manufact. Vol. 45 (2005), p.1368.

Google Scholar

[10] Zhang Jie, Cheng Peng, Zhang Wenwu, Graham Michael, Jones Jerry, Jones Marshall and Lawrence Yao Y: J. Manuf. Sci. Eng., Transactions of the ASME Vol. 128 (2006), p.20.

Google Scholar
