A Newly Solve Project on Rupture of Connected-Mold Bearing of Roller Foam Machine Based on Finite Element Theory

Abstract:

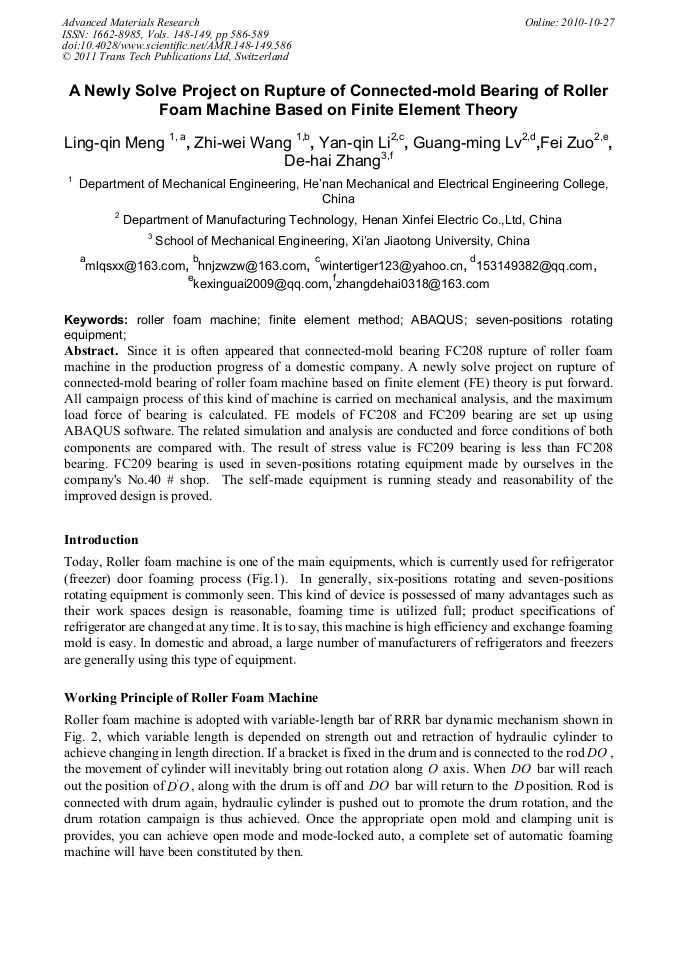

Since it is often appeared that connected-mold bearing FC208 rupture of roller foam machine in the production progress of a domestic company. A newly solve project on rupture of connected-mold bearing of roller foam machine based on finite element (FE) theory is put forward. All campaign process of this kind of machine is carried on mechanical analysis, and the maximum load force of bearing is calculated. FE models of FC208 and FC209 bearing are set up using ABAQUS software. The related simulation and analysis are conducted and force conditions of both components are compared with. The result of stress value is FC209 bearing is less than FC208 bearing. FC209 bearing is used in seven-positions rotating equipment made by ourselves in the company's No.40 # shop. The self-made equipment is running steady and reasonability of the improved design is proved.

• Periodical: Advanced Materials Research (Volumes 148-149)
• Pages: 586-589
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.148-149.586
• Online since: October 2010
• Authors: Ling Qin Meng, Zhi Wei Wang, Yan Qin Li, Guang Ming Lv, Fei Zuo, De Hai Zhang
• Keywords: ABAQUS, Finite Element Model (FEM), Roller Foam Machine, Seven-Positions Rotating Equipment
