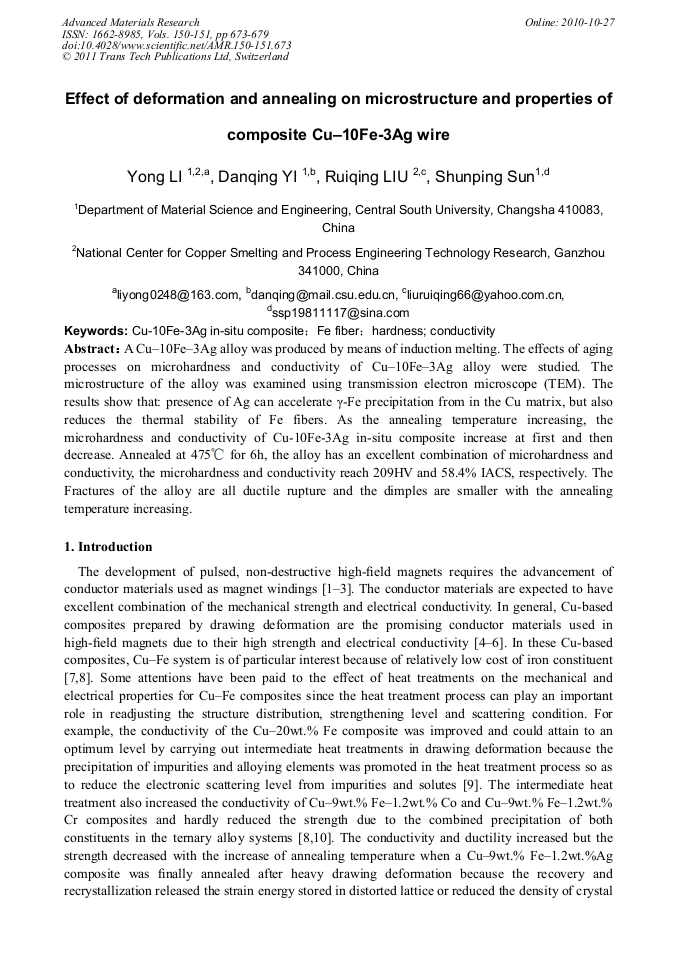

Effect of Deformation and Annealing on Microstructure and Properties of Composite Cu-10Fe-3Ag Wire

Abstract:

A Cu–10Fe–3Ag alloy was produced by means of induction melting. The effects of aging processes on microhardness and conductivity of Cu–10Fe–3Ag alloy were studied. The microstructure of the alloy was examined using transmission electron microscope (TEM). The results show that: presence of Ag can accelerate γ-Fe precipitation from in the Cu matrix, but also reduces the thermal stability of Fe fibers. As the annealing temperature increasing, the microhardness and conductivity of Cu-10Fe-3Ag in-situ composite increase at first and then decrease. Annealed at 475 for 6h, the alloy has an excellent combination of microhardness and conductivity, the microhardness and conductivity reach 209HV and 58.4% IACS, respectively. The Fractures of the alloy are all ductile rupture and the dimples are smaller with the annealing temperature increasing.

• Periodical: Advanced Materials Research (Volumes 150-151)
• Pages: 673-679
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.150-151.673
• Online since: October 2010
• Authors: Yong Li, Dan Qing Yi, Rui Qing Liu, Shun Ping Sun
• Keywords: Conductivity, Cu-10Fe-3Ag In Situ Composite, Fe Fiber, Hardness

References

[1] W. Grunberger, M. Heilmaier, L. Schultz, Physica B 294–295 (2001) 643–647.

[2] K. Inoue, T. Takeuchi, T. Kiyoshi, T. Asano, Y. Sakai, K. Itoh, G. Kido, H. Maeda, Physica B 211 (1995) 17–22.

DOI: 10.1016/0921-4526(94)00930-t

[3] H. Maeda, K. Inoue, T. Kiyoshi, T. Asano, Y. Sakai, T. Takeuchi, K. Itoh, H. Aoki, G. Kido, Physica B 216 (1996) 141–145.

DOI: 10.1016/0921-4526(95)00459-9

[4] J.T. Wood, J.D. Embury, M.F. Ashby, Acta Mater. 45 (1997) 1099–1104.

[5] J. Freudenberger, N. Kozlova, A. Gaganov, L. Schultz, H. Witte, H. Jones, Cryogenics 46 (2006) 724–729.

DOI: 10.1016/j.cryogenics.2006.06.002

[6] L. Meng, J.B. Liu, Mater. Sci. Forum 539–543 (2007) 2798–2803.

[7] C. Biselli, D.G. Morris, Acta Mater. 44 (1996) 493–504.

[8] S.I. Hong, J.S. Song, Metall. Mater. Trans. A 32A (2001) 985–991.

[9] G.A. Jerman, I.E. Anderson, J.D. Verhoeven, Metall. Trans. A 24A (1993)35–42.

[10] J.S. Song, S.I. Hong, J. Alloy. Compd. 311 (2000) 265–269.

[11] J.S. Song, S.I. Hong, Y.G. Park, J. Alloy. Compd. 388 (2005) 69–74.

[12] J.P. GE, Z.Q. YAO. Journal of DALIAN Railway Institute. 25(2004)57-63.

[13] Y. Watanabe, J. Murakami and H. Miura. Mater. Sci. Eng. A 338(2002)299-304.

[14] W. W. Mullins. Acta Metall., 6(1958)414-423.

[15] J. W. S. Rayleigh. Mater. Sci. Eng. 11 (1980)57-69.

[16] T. H. Courtney, J.C. M. Kampe. Acta Metall., 37(1989)1747-1758.

[17] M.S. LI,Z.Q. YAO, S.H. LIU. Hot working technology. 2(2004)27-28.

[19] H.Y. GAO, J. WANG, D. SHU. Scripta Mater, 53(2005)1105-1109.
