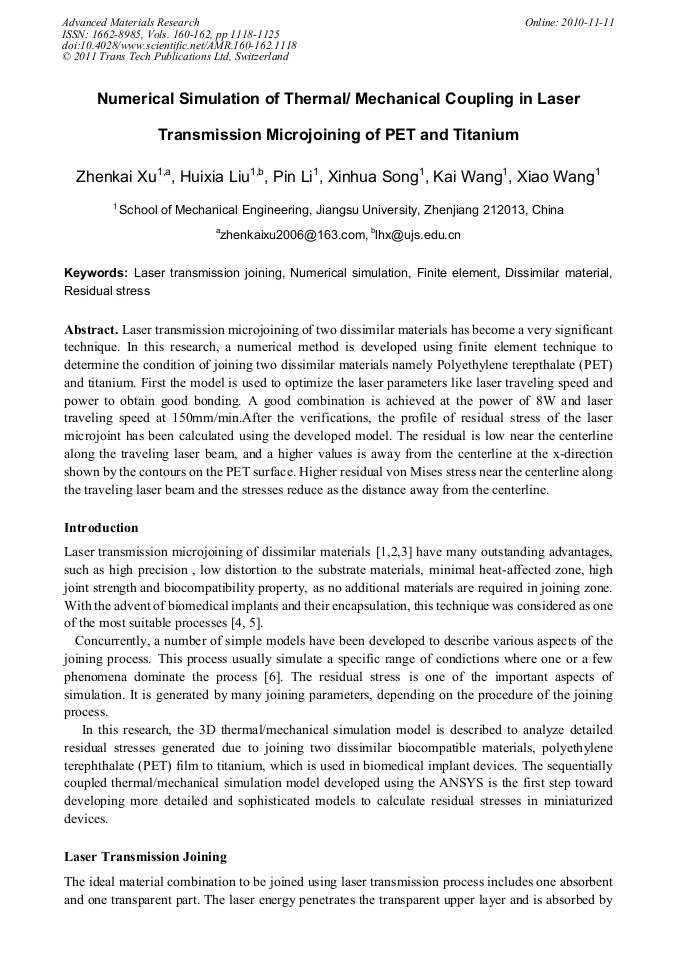

Numerical Simulation of Thermal/Mechanical Coupling in Laser Transmission Microjoining of PET and Titanium

Abstract:

Laser transmission microjoining of two dissimilar materials has become a very significant technique. In this research, a numerical method is developed using finite element technique to determine the condition of joining two dissimilar materials namely Polyethylene terepthalate (PET) and titanium. First the model is used to optimize the laser parameters like laser traveling speed and power to obtain good bonding. A good combination is achieved at the power of 8W and laser traveling speed at 150mm/min.After the verifications, the profile of residual stress of the laser microjoint has been calculated using the developed model. The residual is low near the centerline along the traveling laser beam, and a higher values is away from the centerline at the x-direction shown by the contours on the PET surface. Higher residual von Mises stress near the centerline along the traveling laser beam and the stresses reduce as the distance away from the centerline.

• Periodical: Advanced Materials Research (Volumes 160-162)
• Pages: 1118-1125
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.160-162.1118
• Online since: November 2010
• Authors: Zhen Kai Xu, Hui Xia Liu, Pin Li, Xin Hua Song, Kai Wang, Xiao Wang
• Keywords: Dissimilar Material, Finite Element, Laser Transmission Joining (LTJ), Numerical Simulation, Residual Stress

References

[1] I. Bauer, U.A. Russek, H. J. Herfurth, et al: SPIE , Vol. 5339(2004).

[2] A. Min, G. Newaz, L. Vendra, et al: Journal of Materials Science: Materials in Medicine, Vol. 16 (2005), p.229.

[3] Wang Xiao, Li Pin, Xu Zhenkai , et al: Journal of Materials Processing Technology, Vol. 210 (2010), p.1767.

[4] T.U. Magmood: Wayne State University（2008）.

[5] H.J. Herfurth, R. Witte and S. Heinemann: SPIE , Vol. 5063(2003), p.292.

[6] A.P. Dhorajiya, M.S. Mayeed, G.W. Auner, et al: Journal of Engineering Materials and Technology, Vol. 132(2010), pp.011004-1.

[7] Liu Huixia, Xing An, Zhang Huizhong, et al: Chinese Journal of Lasers, Vol. 35 (2008), p.1081 (in Chinese).

[8] Wang Xiao , Li Pin, Liu Huixia, et al: Chinese Journal of Lasers, Vol. 37 (2010), p.1391(in Chinese).

[9] T. Mahmood , A. Mian , M.R. Amin, et al: Journal of Materials Processing Technology, Vol. 186 (2007), p.37.

[10] D.G. Georgiev, R.J. Baird, G. Newaz, , et al: Applied Surface Science , Vol. 236 (2004), p.71.

[11] T. Mahmood, A. Main, M.R. Amin, et al: Materials Processing Technology, Vol. 186(2007), p.37.

[12] O. C . Zienkiwicz, R. L. Taylor, The Finite Element Method, McGraw-Hill, New York, Chap. 5. ( 1991).

[13] Zhang Guozhi, Hu Renxi, Chen Jigang, et al, ANSYS 11. 0 Examples of Thermodynamics Finite Element Analysis Guide, Edited by Qu Caiyun Publications/Yang XI Publising, Mechanical Industry Press, Bei Jing(2007).

[14] Auner, G. Herfurth, H. Mahmood, T. Mian, et al. Materials Research Society, Vol. 926(2009), p.90.

[15] Information on http: /www. matweb. com.
