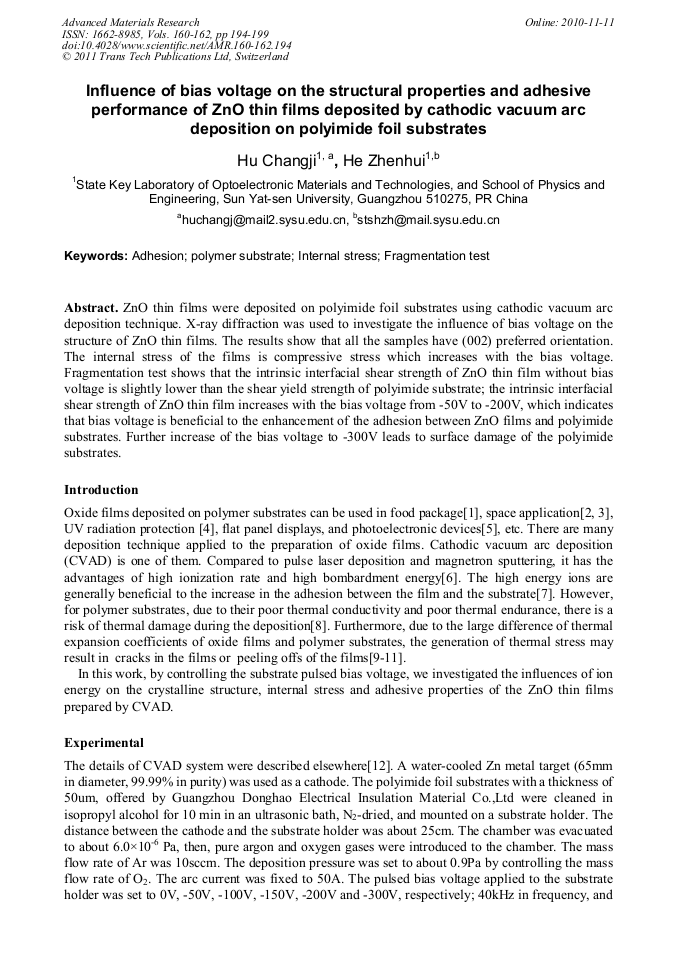

Influence of Bias Voltage on the Structural Properties and Adhesive Performance of ZnO Thin Films Deposited by Cathodic Vacuum Arc Deposition on Polyimide Foil Substrates

Abstract:

ZnO thin films were deposited on polyimide foil substrates using cathodic vacuum arc deposition technique. X-ray diffraction was used to investigate the influence of bias voltage on the structure of ZnO thin films. The results show that all the samples have (002) preferred orientation. The internal stress of the films is compressive stress which increases with the bias voltage. Fragmentation test shows that the intrinsic interfacial shear strength of ZnO thin film without bias voltage is slightly lower than the shear yield strength of polyimide substrate; the intrinsic interfacial shear strength of ZnO thin film increases with the bias voltage from -50V to -200V, which indicates that bias voltage is beneficial to the enhancement of the adhesion between ZnO films and polyimide substrates. Further increase of the bias voltage to -300V leads to surface damage of the polyimide substrates.

• Periodical: Advanced Materials Research (Volumes 160-162)
• Pages: 194-199
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.160-162.194
• Online since: November 2010
• Authors: Chang Ji Hu, Zhen Hui He
• Keywords: Adhesion, Fragmentation Test, Internal Stress, Polymer Substrate

References

[1] Joachim Schneider, Dennis Kiesler, Martina Leins, Andreas Schulz, Matthias Walker, Uwe Schumacher and Ulrich Stroth: Plasma Process and Polymers Vol. 4(2007), pp.155-159.

DOI: 10.1002/ppap.200730602

[2] Ing H. Tan , Mario Ueda , Renato S. Dallaqua , Nicole R. Demarquette and Leon Gengembre: Plasma Process. Polym Vol. 4(2007), p. S1081-S1085.

DOI: 10.1002/ppap.200732409

[3] Russell Cooper , Hari P. Upadhyaya , Timothy K. Minton, Michael R. Berman, Xiaohua Du and Steven M. George: Thin solid films Vol. 516(2008), pp.4036-4039.

DOI: 10.1016/j.tsf.2007.07.150

[4] L. Guedri S. Ben Amor, J.L. Gardette, M. Jacquet and A. Rivaton: Polymer Degradation and Stability Vol. 88(2005), pp.199-205.

DOI: 10.1016/j.polymdegradstab.2004.05.015

[5] A. Miyake, T. Yamada, H. Makino,N. Yamamoto and T. Yamamoto: Thin solid films Vol. 517(2009), pp.3130-3133.

DOI: 10.1016/j.tsf.2008.11.129

[6] Sanders D M, Anders A: Surface and coatings technology Vol. 133-134(2000), pp.78-90.

[7] Othon R Monteiro: Annu. Rev. Mater. Res. Vol. 31(2001), pp.111-137.

[8] S. Goldsmith, R.L. Boxman: Thin solid films Vol. 236(1993), pp.341-346.

[9] Ohring M: Materials Science of Thin Films: Deposition and Structure(2006).

[10] C. Chaiwong, D.R. McKenzie and M.M.M. Bilek: Surface and Coatings Technology Vol. 201(2007), pp.5596-5600.

DOI: 10.1016/j.surfcoat.2006.07.200

[11] V.N. Zhitomirsky, I. Grimberg, M.C. Joseph, R.L. Boxman, A. Matthews and B.Z. Weiss: Surface and Coatings Technology Vol. 120-121(1999), pp.373-377.

DOI: 10.1016/s0257-8972(99)00387-4

[12] Zhu Daoyun, Zheng Changxi, Liu Yi, Chen Dihu, He Zhenhui, Wen Lishi, Cheung W Y and Wong S P: Surface and coatings technology Vol. 201(2006), pp.2387-2391.

[13] Hsu Y-H, Lin J and Tang W C: J. Mater. Sci: Mater. Electron. Vol. 19(2008), pp.653-661.

[14] Yves Leterrier: Progress in Materials Science Vol. 48(2003), pp.1-55.

[15] N. A. Marks: Phys. Rev. B Vol. 56(1997), pp.2441-2446.

[16] P. F. Carcia, R. S. McLean, M. H. Reilly, and G. Nunes Applied Physics Letters Vol. 82(2003), p.1117.

[17] Aki Miyake, Takahiro Yamada, Hisao Makino, Naoki Yamamoto and Tetsuya Yamamoto: Thin solid films Vol. 517(2008), pp.1037-1041.

DOI: 10.1016/j.tsf.2008.06.052

[18] John A. Thornton and D. W . Hoffman: Thin solid films Vol. 171(1989), pp.5-31.

[19] Y. S. Touloukian, R. K. Kirby, R. E. Taylor and T. Y. Lee: Thermal Expansion: Nonmetallic Solids, Vol. 13 of Thermophysical Properties of Matter (1977).

[20] Xiaoyan Wang, Hongbin Geng, Shiyu He, Y.O. Pokhyl and K.V. Koval: International Journal of Adhesion and Adhesives Vol. 27(2007), pp.288-297.

DOI: 10.1016/j.ijadhadh.2006.01.011

[21] M.M.M. Bileka, D.R. McKenzie, R.N. Tarrant, S.H.M. Lim and D.G. McCulloch: Surface and Coatings Technology Vol. 156(2002), pp.136-142.

[22] Yushkov G Y, Anders A, Oks E M and Brown I G: J. Appl. Phys Vol. 88(2000), pp.5618-5622.

[23] H. W. Lee, S. P. Lau, Y. G. Wang, B. K. Tay and H. H. Hng: Thin solid films Vol. 458(2004), pp.15-19.

[24] Kelly A: J. Mech. Phys. Solids Vol. 13(1965), p.329.

[25] G. Rochat, Y. Leterrier, P. Fayet and J. -A.E. Månsona: Thin Solid Films Vol. 437(2003), pp.204-210.

[26] Howells D G, Henry B M, Leterrier Y, Månson J-A E, Madocks J and Assender H E: Surface and Coatings Technology Vol. 202(2008), pp.3529-3537.

DOI: 10.1016/j.surfcoat.2007.12.030

[27] K.L. Mittal: The First International Symposium on Adhesion Measurement of Films and Coatings Vol. Netherlands USA: VSP, (1995).
