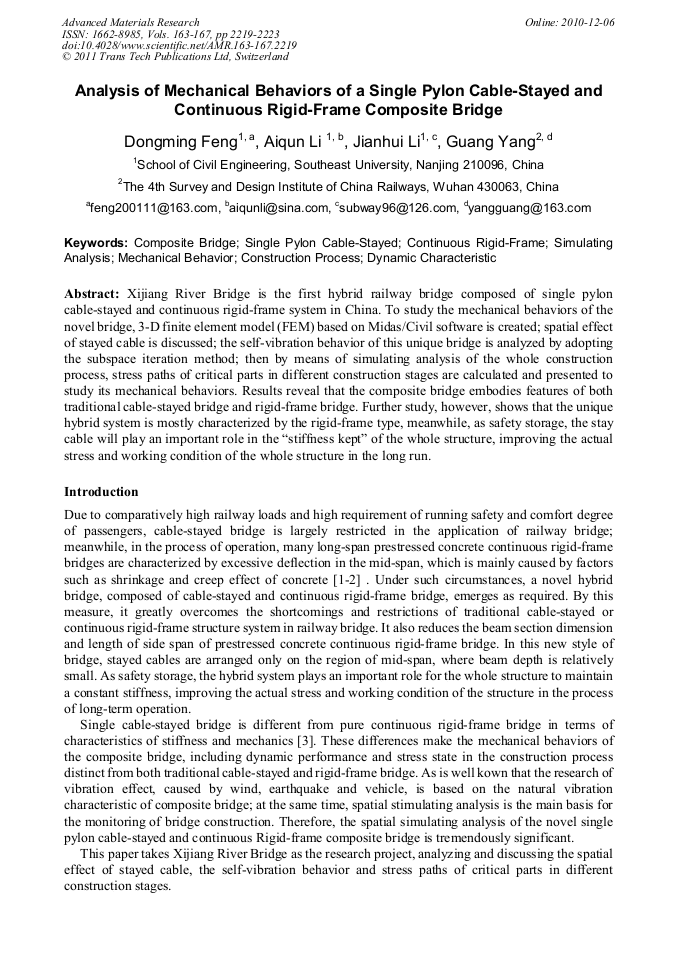

Analysis of Mechanical Behaviors of a Single Pylon Cable-Stayed and Continuous Rigid-Frame Composite Bridge

Abstract:

Xijiang River Bridge is the first hybrid railway bridge composed of single pylon cable-stayed and continuous rigid-frame system in China. To study the mechanical behaviors of the novel bridge, 3-D finite element model (FEM) based on Midas/Civil software is created; spatial effect of stayed cable is discussed; the self-vibration behavior of this unique bridge is analyzed by adopting the subspace iteration method; then by means of simulating analysis of the whole construction process, stress paths of critical parts in different construction stages are calculated and presented to study its mechanical behaviors. Results reveal that the composite bridge embodies features of both traditional cable-stayed bridge and rigid-frame bridge. Further study, however, shows that the unique hybrid system is mostly characterized by the rigid-frame type, meanwhile, as safety storage, the stay cable will play an important role in the “stiffness kept” of the whole structure, improving the actual stress and working condition of the whole structure in the long run.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 2219-2223
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.2219
• Online since: December 2010
• Authors: Dong Ming Feng, Ai Qun Li, Jian Hui Li, Guang Yang
• Keywords: Composite Bridge, Construction Process, Continuous Rigid Frame, Dynamic Characteristic, Mechanical Behavior, Simulating Analysis, Single Pylon Cable-Stayed

References

[1] Guomin Yan. Mordern Cable Stayed Bridge[M]. Southwest Jiaotong University Press, Chengdu, (1996).

[2] Baolin Ma, Linqing Li. Long-span Continuous Rigid Frame Bridge with Tall Piers [M]. China Communications Press, Beijing, (2001).

[3] Dongming Feng, Aiqun Li, Jianhui Li, and Guang Yang. Research on dynamic behavior and parameter influence of sngle pylon cable-stayed and continuous rigid-frame composite bridge [J]. Journal of Chongqing Jiaotong University ( Nature Science), 2010, 29(3): 329-332(in chinese).

DOI: 10.4028/www.scientific.net/amr.163-167.2219

[4] Shidong Luo, Zhenbiao Liu, Yong Chen, Guang Yang. Conceptual design and research of main bridge of xijiang river bridge on guangzhou-zhuhai intercity rapid rail transit [J]. Bridge Construction, 2006(supplement 2) : 36-39 (in chinese).

[5] Jianhui Li, Aiqun Li, Shidong Luo, Zhenbiao Liu. 3-Dimensional finite element analysis of Xijiang River Bridge on Guangzhou-Zhuha i intercity rapid rail transit [J]. Journal of Southeast University (N atural Science Edition), 2009, 39(1) : 96-100 (in chinese).

[6] Baochu Yu, Zhe Zhang, Weizhi Zhu. Analysis of dynamic characteristics of collaborated system with long-span cable-stayed bridge and T-shape rigid structure [J]. Journal of Highway and Transportation Research and Development, 2007 24(4) : 84-88(in chinese).
