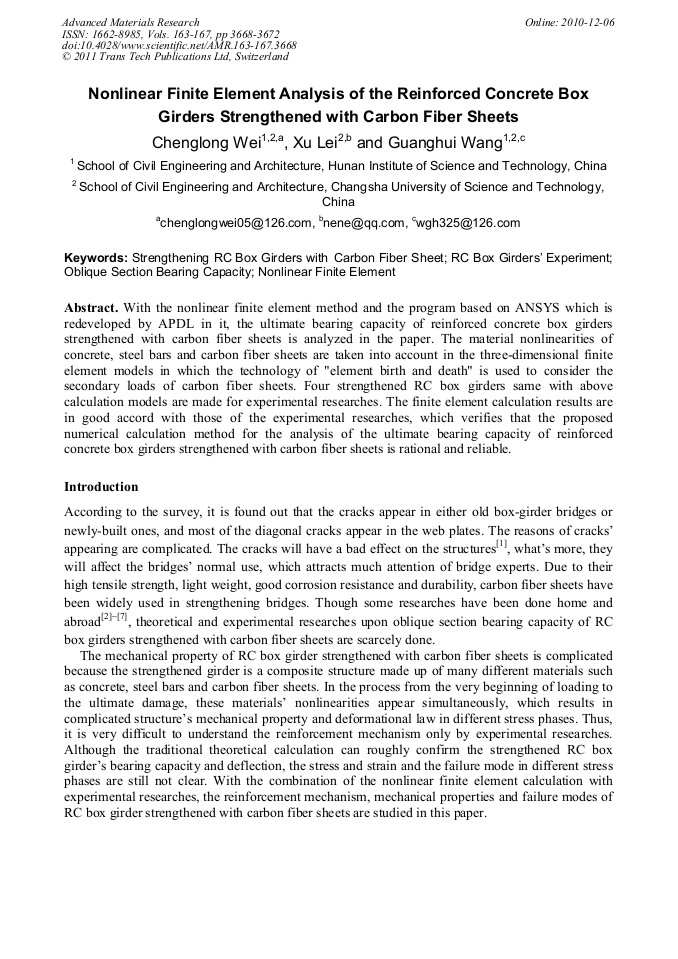

Nonlinear Finite Element Analysis of the Reinforced Concrete Box Girders Strengthened with Carbon Fiber Sheets

Abstract:

With the nonlinear finite element method and the program based on ANSYS which is redeveloped by APDL in it, the ultimate bearing capacity of reinforced concrete box girders strengthened with carbon fiber sheets is analyzed in the paper. The material nonlinearities of concrete, steel bars and carbon fiber sheets are taken into account in the three-dimensional finite element models in which the technology of "element birth and death" is used to consider the secondary loads of carbon fiber sheets. Four strengthened RC box girders same with above calculation models are made for experimental researches. The finite element calculation results are in good accord with those of the experimental researches, which verifies that the proposed numerical calculation method for the analysis of the ultimate bearing capacity of reinforced concrete box girders strengthened with carbon fiber sheets is rational and reliable.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 3668-3672
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.3668
• Online since: December 2010
• Authors: Cheng Long Wei, Xu Lei, Guang Hui Wang
• Keywords: Nonlinear Finite Element, Oblique Section Bearing Capacity, RC Box Girders’ Experiment, Strengthening RC Box Girders with Carbon Fiber Sheet

References

[1] Wang Huiyong: The Research on Crack Cause and Stress Limit Value Webs of Continuous Rigid Frame Structures. Changsha: Changsha University of Science &Technology, 2005(In Chinese).

[2] Hongseob Oh, Jongsung Sim, Christian Meyer: Composites Part B: Engineering, 2003, 34(6): 527-538.

[3] G. Ramos, J. R. Casas, A. Alarcon: Engineering Structures, 2004, 26(5): 609-618.

[4] Kasidit Chansawat, Solomon C. S. Yim et al: Journal of Bridge Engineering, 2006, 11(1): 21-32.

[5] Liu Xiaoyan，Wang Liangbo et al: World Bridges, 2004(2): 59-61(In Chinese).

[6] Hu Kongguo, Yue Qingrui et al: Journal of Building Structures, 2000, 30(7): 44-48(In Chinese).

[7] Liu Xiaoyan, Yan Donghuang et al: China Journal of Highway and Transport, 2006, 19(1): 58-61(In Chinese).

[8] Wei Chenglong: Analysis of the Ultimate Load for Long Span Cable-Stayed Bridge with a Plate-Truss Composite Beam. Changsha: Central South University, 2003(In Chinese).

[9] Zhu Weiqing: Theoretical and Experimental Research on Inclined Section Bearing Capacity of Reinforced Concrete Box Beams Strengthened with CFS. Changsha: Changsha University of Science＆Technology, 2008(In Chinese).

[10] Jiang Jianqiong: Nonlinear Finite Element Analysis of the Reinforced Concrete Structures. Xi'an: Shaanxi Science and Technology Press, 1994(In Chinese).
