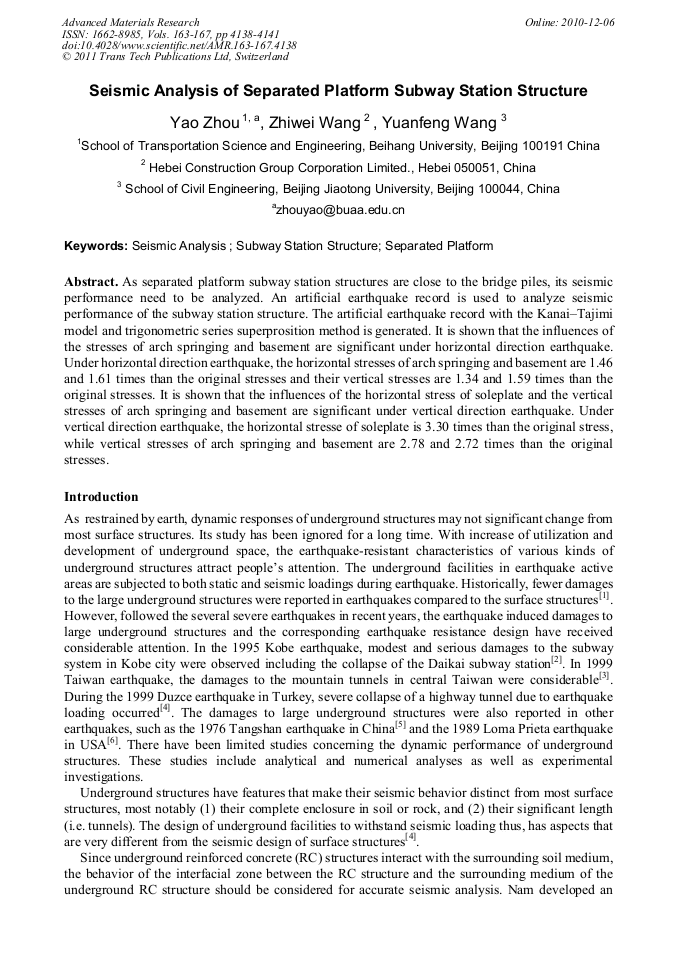

Seismic Analysis of Separated Platform Subway Station Structure

Abstract:

As separated platform subway station structures are close to the bridge piles, its seismic performance need to be analyzed. An artificial earthquake record is used to analyze seismic performance of the subway station structure. The artificial earthquake record with the Kanai–Tajimi model and trigonometric series superprosition method is generated. It is shown that the influences of the stresses of arch springing and basement are significant under horizontal direction earthquake. Under horizontal direction earthquake, the horizontal stresses of arch springing and basement are 1.46 and 1.61 times than the original stresses and their vertical stresses are 1.34 and 1.59 times than the original stresses. It is shown that the influences of the horizontal stress of soleplate and the vertical stresses of arch springing and basement are significant under vertical direction earthquake. Under vertical direction earthquake, the horizontal stresse of soleplate is 3.30 times than the original stress, while vertical stresses of arch springing and basement are 2.78 and 2.72 times than the original stresses.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 4138-4141
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.4138
• Online since: December 2010
• Authors: Yao Zhou, Zhi Wei Wang, Yuan Feng Wang
• Keywords: Seismic Analysis, Separated Platform, Subway Station Structure

References

[1] Huabei Liu, Erxiang Song. Seismic response of large underground structures in liquefiable soils subjected to horizontal and vertical earthquake excitations. Computers and Geotechnics, Vol. 32(2005), pp.223-244.

DOI: 10.1016/j.compgeo.2005.02.002

[2] M. Tajimi. Damage done by the great earthquake disaster of the Hanshin-Awaji district to the Kobe Municipal Subway System and restoration works of the damage. Jpn Railway Eng, Vol. 137(1996) , pp.19-23.

[3] W.L. Wang, T.T. Wang, J.J. Su, et al. Assessment of damage in mountain tunnels due to the Taiwan Chi-Chi Earthquake. Tunnel Underground Space Technol, 16(2001) , pp.133-150.

DOI: 10.1016/s0886-7798(01)00047-5

[4] Youssef M.A. Hashash, Jeffrey J Hook, Birger Schmidt, et al. Seismic design and analysis of underground structures. Tunnelling and Underground Space Technology, 16(2001) , pp.247-293.

DOI: 10.1016/s0886-7798(01)00051-7

[5] J.M. Wang. Distribution of earthquake damage to underground facilities during the 1976 Tang-shan earthquake. Earthquake Spectra, 1(1985) , pp.741-757.

DOI: 10.1193/1.1585291

[6] B. Schmidt, Y. Hashash, T. Stimac. US immersed tube retrofit. Tunnels Tunneling Int. 30(1998) , pp.22-24.

[7] Sang-Hyeok Nam, Ha-Won Song, Byun Keun-Joo, et al. Seismic analysis of underground reinforced concrete structures considering elasto-plastic interface element with thickness. Engineering Structures, 28(2006) , pp.1122-1131.

DOI: 10.1016/j.engstruct.2005.12.003

[8] Mohammad C. Pakbaz, Akbar Yareevand. 2-D analysis of circular tunnel against earthquake loading. Tunnelling and Underground Space Technology, 20 (2005) , p.411–417.

DOI: 10.1016/j.tust.2005.01.006

[9] Hong Xu, Dengbang Lu, Xiaoliang Yu, et al. Seismic Response Analysis of Nanjing Double- deck Subway Station. Jiangsu Architecture, 1(2008) , pp.26-28. (In Chinese).

[10] Limin Lin, Jianyun Chen. Analysis of Earthquake-resistant Capacity of Shallow-buried Subway Station Structures in Soft Soil. Journal of Disaster Prevention and Mitigation Engineering, 26(2006) , p.268–273. (In Chinese).

[11] Y. F Wang, B. Han, Y Zhou, et al. Structural Health Monitoring for Subway Station Structure. Proceedings of International Conference on Health Monitoring of Structure, Material and Environment, Nanjing, China(2007) , pp.342-346.

[12] F. R Rofooei., Aghababaii Mobarake, G Ahmadi. Generation of artificial earthquake records with a nonstationary Kanai-Tajimi model[J]. Engineering Structures, 23(2001) , p.827–837.

DOI: 10.1016/s0141-0296(00)00093-6
