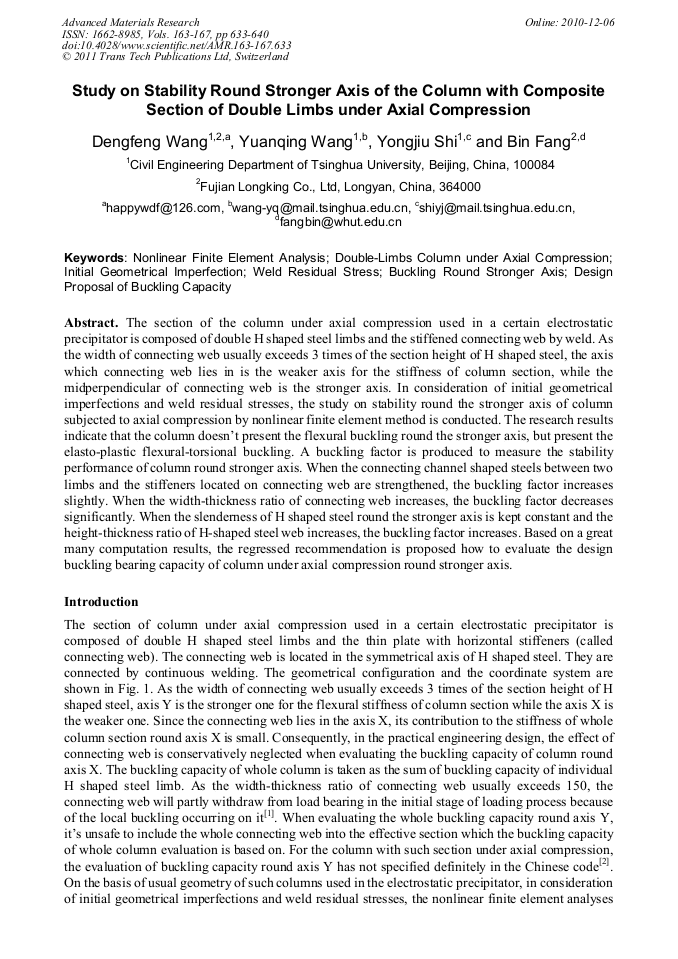

Study on Stability Round Stronger Axis of the Column with Composite Section of Double Limbs under Axial Compression

Abstract:

The section of the column under axial compression used in a certain electrostatic precipitator is composed of double H shaped steel limbs and the stiffened connecting web by weld. As the width of connecting web usually exceeds 3 times of the section height of H shaped steel, the axis which connecting web lies in is the weaker axis for the stiffness of column section, while the midperpendicular of connecting web is the stronger axis. In consideration of initial geometrical imperfections and weld residual stresses, the study on stability round the stronger axis of column subjected to axial compression by nonlinear finite element method is conducted. The research results indicate that the column doesn’t present the flexural buckling round the stronger axis, but present the elasto-plastic flexural-torsional buckling. A buckling factor is produced to measure the stability performance of column round stronger axis. When the connecting channel shaped steels between two limbs and the stiffeners located on connecting web are strengthened, the buckling factor increases slightly. When the width-thickness ratio of connecting web increases, the buckling factor decreases significantly. When the slenderness of H shaped steel round the stronger axis is kept constant and the height-thickness ratio of H-shaped steel web increases, the buckling factor increases. Based on a great many computation results, the regressed recommendation is proposed how to evaluate the design buckling bearing capacity of column under axial compression round stronger axis.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 633-640
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.633
• Online since: December 2010
• Authors: Deng Feng Wang, Yuan Qing Wang, Yong Jiu Shi, Bin Fang
• Keywords: Buckling Round Stronger Axis, Design Proposal of Buckling Capacity, Double-Limb Column under Axial Compression, Initial Geometrical Imperfection, Nonlinear Finite Element Analysis, Weld Residual Stress

References

[1] D.F. Wang, Y.Q. Wang, H.J. Dai, Y.J. Shi and Z. A Liao, Spatial overall analysis of the electrostatic precipitator casing load bearing performance, in Asia-Pacific Power and Energy Engineering Conference Proceedings, IEEE eXpress Conference Publishing, Chengdu, China, (2010).

DOI: 10.1109/appeec.2010.5448654

[2] GB 50017-2003: Code for Design of Steel Structures (China Planning Press, Beijing China 2003). (In Chinese).

[3] G.Y. Grondin, A.E. Elwi, J.J.R. Cheng: Journal of Constructional Steel Research, Vol. 50 (1999), pp.151-175.

[4] J. Singer, J. Arbocz and T. Weller: Buckling Experiments: Experimental Methods in Buckling of Thin-walled Structures (John Wiley& Sons, Chichester England 1998).

DOI: 10.1002/9780470172995

[5] J. Chen: Stability of Steel Structures Theory and Design (Science Press, Beijing China 2003). (In Chinese).
