Effect of Particle Sizes of Magnesium Oxide on Zirconia Toughened Alumina Vickers Hardness

Abstract:

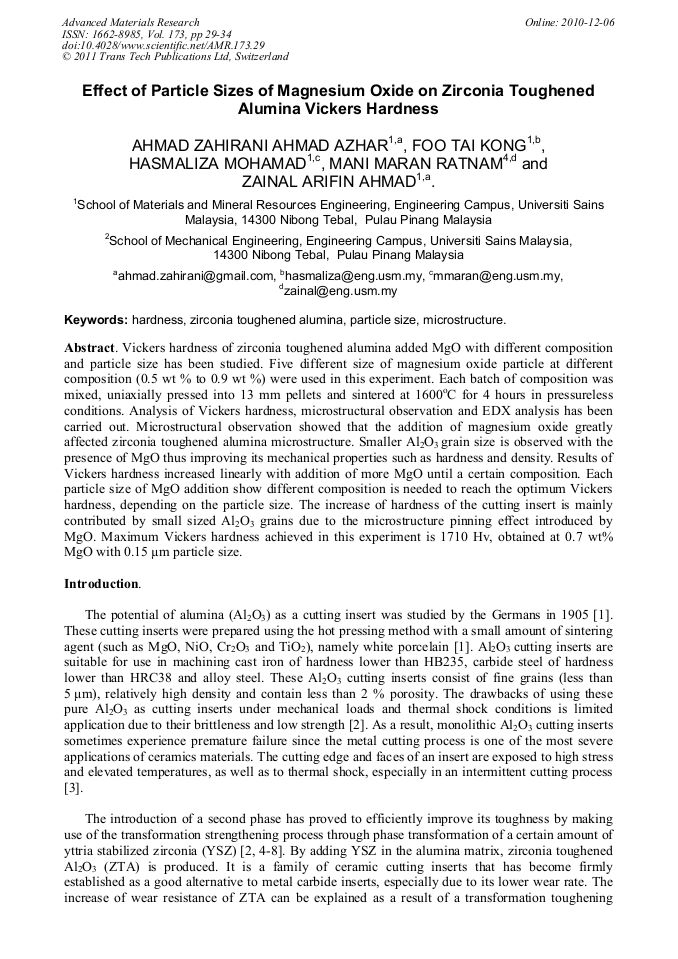

Vickers hardness of zirconia toughened alumina added MgO with different composition and particle size has been studied. Five different size of magnesium oxide particle at different composition (0.5 wt % to 0.9 wt %) were used in this experiment. Each batch of composition was mixed, uniaxially pressed into 13 mm pellets and sintered at 1600oC for 4 hours in pressureless conditions. Analysis of Vickers hardness, microstructural observation and EDX analysis has been carried out. Microstructural observation showed that the addition of magnesium oxide greatly affected zirconia toughened alumina microstructure. Smaller Al2O3 grain size is observed with the presence of MgO thus improving its mechanical properties such as hardness and density. Results of Vickers hardness increased linearly with addition of more MgO until a certain composition. Each particle size of MgO addition show different composition is needed to reach the optimum Vickers hardness, depending on the particle size. The increase of hardness of the cutting insert is mainly contributed by small sized Al2O3 grains due to the microstructure pinning effect introduced by MgO. Maximum Vickers hardness achieved in this experiment is 1710 Hv, obtained at 0.7 wt% MgO with 0.15 µm particle size.

• Periodical: Advanced Materials Research (Volume 173)
• Pages: 29-34
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.173.29
• Online since: December 2010
• Authors: Ahmad Zahirani Ahmad Azhar, Foo Tai Kong, Hasmaliza Mohamad, Manimaran Ratnam, Zainal Arifin Ahmad
• Keywords: Hardness, Microstructure, Particle Size, Zirconia-Toughened Alumina (ZTA)

References

[1] Q. Like, L. Xikun, P. Yang, M. Weimin, Q. Guanming, and S. Yanbin, Journal of Rare Earths Vol. 25, No. Supplement 2, 2007, pp.322-326.

DOI: 10.1016/s1002-0721(07)60495-5

[2] B. Smuk, M. Szutkowska, and J. Walter, Journal of Materials Processing Technology Vol. 133, No. 1-2, 2003, pp.195-198.

[3] A. Xing, Z. Jun, H. Chuanzhen, and Z. Jianhua, Materials Science and Engineering A Vol. 248, No. 1-2, 1998, pp.125-131.

[4] A.Z.A. Azhar, , M.M. Ratnam, and Z.A. Ahmad, Journal of Alloys and Compounds Vol. 478, No. 1-2, 2009, pp.608-614.

[5] B. Basu, J. Vleugels, and O. Van Der Biest, Journal of Alloys and Compounds Vol. 372, No. 1-2, 2004, pp.278-284.

DOI: 10.1016/j.jallcom.2003.09.157

[6] T. Sornakumar, M.V. Gopalakrishnan, R. Krishnamurthy, and C.V. Gokularathnam, International Journal of Refractory Metals and Hard Materials Vol. 13, No. 6, 1995, pp.375-378.

DOI: 10.1016/0263-4368(95)00026-f

[7] P.M. Kelly and L.R. Francis Rose, Progress in Materials Science Vol. 47, No. 5, 2002, pp.463-557.

[8] Hao, J.K.C., A.Z.A. Azhar, M.M. Ratnam, and Z.A. Ahmad, Materials Science and Technology Vol. 26, No. 1, 2010, pp.95-103.

[9] M. Szutkowska, Journal of Materials Processing Technology Vol. 153-154, 2004, pp.868-874.

[10] R.L. Coble, , Journal Applied Physics Vol. 32, No. 5, 1961, pp.793-799.

[11] X. Teng, , H. Liu, and C. Huang, Materials Science and Engineering: A Vol. 452-453, 2007, pp.545-551.

[12] A.Z.A. Azhar, , H. Mohamed, M.M. Ratnam, and Z.A. Ahmad, Journal of Alloy and Compunds Vol. 497, 2010, pp.316-320.
