The Research of Rigid Lapping Technique on Diamond Grating Ruling Tool

Abstract:

One of the effective method of improving diamond tool life on rulling large diffraction gratings is developing precise double-cone edged on line edge transfering tool.But traditional died weight or manual lapping technique couldn't meet the precision requirement of on line edge transfering tool.So preliminary studied rigid lapping of diamond grating ruling tool.Choosing traditional BC6063 shaping machine and made a series of alteration on it, achieved the automation of lapping process of diamond grating ruling tool. Through lapping grating ruling tool and AFM measurement find that the surface roughness of tool is 1.51nm,the radius of tool edge is 160nm, edge quality is good enough,this verified the feasibility of rigid lapping of diamond grating ruling tool and lay the foundation for developing precision lapping machine.

You might also be interested in these eBooks

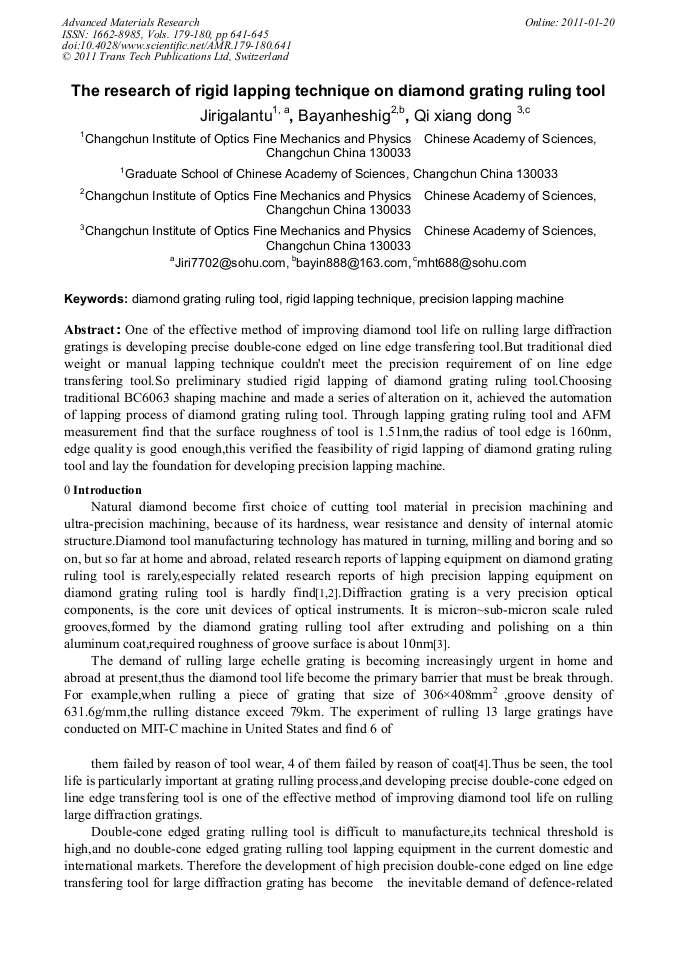

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 179-180)

Pages:

641-645

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.179-180.641

Citation:

Cite this paper

Online since:

January 2011

Authors:

Jirigalantu Jirigalantu, Bayanheshig Bayanheshig, Xiang Dong Qi

Keywords:

Diamond Grating Ruling Tool, Precision Lapping Machine, Rigid Lapping Technique

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] LI Zengqiang. Key technology of arc cutting diamond tool lapping [J]. Tool technology, 2004. 9.

Google Scholar

[2] Liu Zhiping. Li Huadong, etc The research of ultra-precision diamond tool lapping technology. synthetic crystals, 2001 (4): 413-41.

Google Scholar

[3] Li Yinghai. diamond diffraction gratings tool[J]. Optics and Precision Engineering, 1996, 4 (3): 81-84.

Google Scholar

[4] E W Palmer, M C Hutley, A franks, J F Verrill and B Gale. Diffraction gratings. Rep. Prog. Phys. 1975 38 975-1048.

DOI: 10.1088/0034-4885/38/8/002

Google Scholar

[5] Li Yinghai, Bayanheshig, Qi Xiangdong. The manufacture of ultra-precision diamond tool used the diffraction grating ruling. Microfabrication technology processes, 2006, 12: 15-17.

Google Scholar

[6] J.R. Hird, J.E. Field. A wear mechanism map for the diamond polishing process. Wear 258 (2005) 18–25.

DOI: 10.1016/j.wear.2004.09.001

Google Scholar

[7] Chen Shilin, Bandung, Liu Xiaopan etc. Superhard materials and tools. Chemical Industry Press. 2006-04-01.

Google Scholar
