Study on 2D Simulation Algorithm and Implementation for Loop Pile Tufted Carpet

Abstract:

To preview of the final appearance of tufted carpet, this paper devises a solution to simulate the color appearance of tufted carpet. The simulation adopts color blocks to represent a single loop pile in carpet surface, through resizing color block size to simulate the extrusion between loop piles. The solution starts from traversing the control pattern to get the pile height level information. Base on the current and surrounded loop piles height level to infer the size and start point of color block for current loop pile. According to patterns’ information to generate the color appearance simulation for loop pile tufted carpet. Base on the proposed simulation, devise the frame work and control logic for simulation software, and developed the simulation software with C++. Simulation test is carried out, the result shows the method can effectively generate carpet color appearance simulation for tufted carpet comprising of multicolor yarns.

You might also be interested in these eBooks

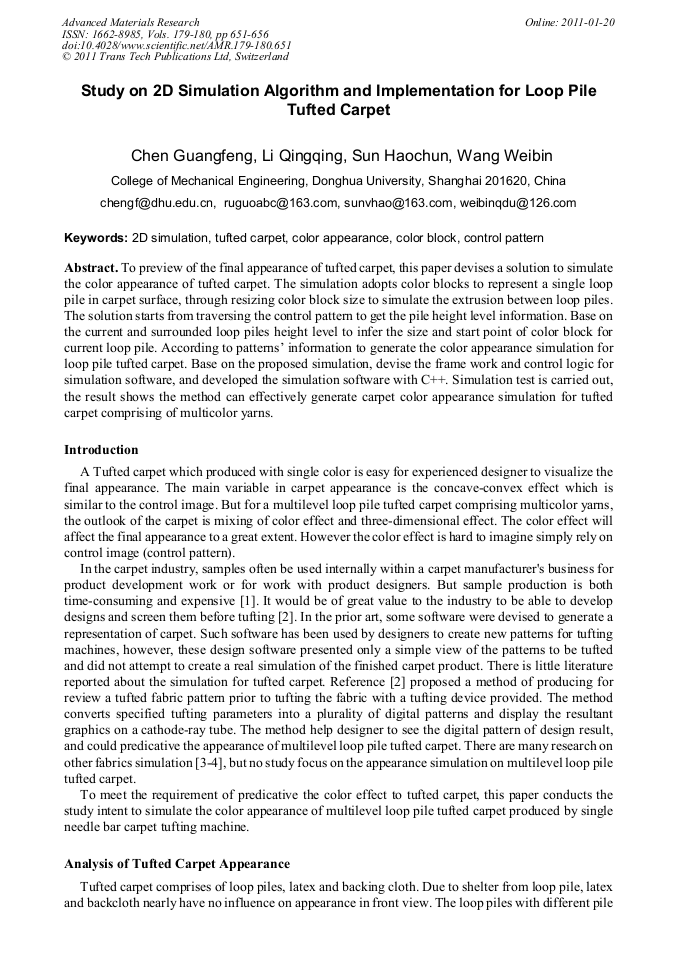

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 179-180)

Pages:

651-656

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.179-180.651

Citation:

Cite this paper

Online since:

January 2011

Authors:

Guang Feng Chen, Qing Qing Li, Hao Chun Sun, Wei Bin Wang

Keywords:

2D Simulation, Color Appearance, Color Block, Control Pattern, Tufted Carpet

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Andy Shipman, Leeds. Carpet simulation method,. U.S. Patent 2006/0080125 Al. (2006).

Google Scholar

[2] Ralph II. Bost, Jr. Method of producing for review a tufted fabric pattern, U.S. Patent 4, 469, 037. (1984).

Google Scholar

[3] Peter Allan Jansson, Hockessin, Del. Predictive simulation of heather fabric appearance, U. S . Patent 5, 680, 333. (1997).

Google Scholar

[4] Chen Junyan. Study on the Sotfware of Fabric Appeance Simulation,. Donghua University, (2006).

Google Scholar

[5] Zheng Tianyong. Research on 3D imitation for displaying structure and pattern of woven fabric,. Tianjin University of Technology, (2000).

Google Scholar

[6] Guangfeng Chen, YanzhuYang, Kun Zou. Electromagnetic clutch based high-low carpet jacquard control system,. Proceeding of IITA 2008 Workshop, 2008, pp.176-179.

DOI: 10.1109/iita.workshops.2008.265

Google Scholar

[7] Chen Guangfeng, Zhang Yawei, Jin Zhilei. Study on pattern preparing system for three-level loop tufting carpet,. Proceeding of CASE, 2009, pp.363-366.

DOI: 10.1109/case.2009.80

Google Scholar
