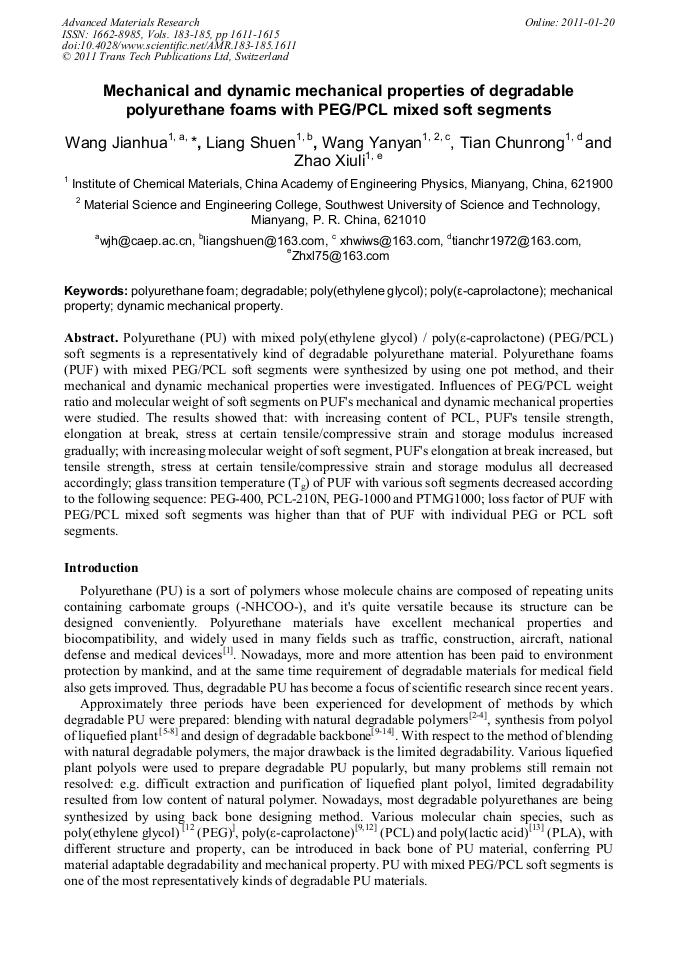

Mechanical and Dynamic Mechanical Properties of Degradable Polyurethane Foams with PEG/PCL Mixed Soft Segments

Abstract:

Polyurethane (PU) with mixed poly(ethylene glycol) / poly(ε-caprolactone) (PEG/PCL) soft segments is a representatively kind of degradable polyurethane material. Polyurethane foams (PUF) with mixed PEG/PCL soft segments were synthesized by using one pot method, and their mechanical and dynamic mechanical properties were investigated. Influences of PEG/PCL weight ratio and molecular weight of soft segments on PUF's mechanical and dynamic mechanical properties were studied. The results showed that: with increasing content of PCL, PUF's tensile strength, elongation at break, stress at certain tensile/compressive strain and storage modulus increased gradually; with increasing molecular weight of soft segment, PUF's elongation at break increased, but tensile strength, stress at certain tensile/compressive strain and storage modulus all decreased accordingly; glass transition temperature (T_g) of PUF with various soft segments decreased according to the following sequence: PEG-400, PCL-210N, PEG-1000 and PTMG1000; loss factor of PUF with PEG/PCL mixed soft segments was higher than that of PUF with individual PEG or PCL soft segments.

• Periodical: Advanced Materials Research (Volumes 183-185)
• Pages: 1611-1615
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.183-185.1611
• Online since: January 2011
• Authors: Jian Hua Wang, Shuen Liang, Yan Yan Wang, Chun Rong Tian, Xiu Li Zhao
• Keywords: Degradable, Dynamic Mechanical Property, Mechanical Property, Poly(ethylene glycol) (PEG), Poly(ε-Caprolactone), Polyurethane Foam

References

[1] L. M. Zhu and Y. J. Liu: Polyurethane Foam (3rd Edition), (Chemistry Industry Press, Beijing, 2005).

[2] P. Zeterlund, S. Hirose and T. Hatakeyama. Polymer International Vol. 42 (1997), p.1~8.

[3] Y. Li, D. J. Chen and Y. J. Li: China Synthetic Rubber Industry Vol. 21 (1998), p.359.

[4] R. Alfani, S. Iannace and L. Nicolais: Journal of Applied Polymer Science Vol. 68 (1998), p.739~745.

[5] D. Maldas and N. Shiraishi: International Journal of Polymeric Materials Vol. 33 (1996), p.61~63.

[6] M. Alina, M. Yoshioka, Y. Yao, et. al.: Wood Science and Technology Vol. 32 (1998), p.297~298.

[7] J. J. Ge, J. T. Xu and Z. N. Zhang: Acta Chemica Sinica Vol. 60 (2002), p.732~736.

[8] S. Lee: Journal of Applied Polymer Science Vol. 83 (2002), p.1482~1489.

[9] M. Harkonen, K. Hiltunen, M. Malin, et. al.: Journal of Macromolecular Science (Part A) Vol. 32 (1995), p.857~882.

[10] X. W. Zou, S. Y. Yang and L. B. Chen: Polymer Materials Science and Engineering (in Chinese) Vol. 17 (2001), p.173~174.

[11] T. Hashimoto: Journal of Polymer Science, Part A: Polymer Chemistry Vol. 42 (2004), p.2766~2773.

[12] K. Gorna and S. Gogolewski: Journal of Biomedical Materials Research Vol. (2003), p.813~826.

[13] Y. Nakayama, R. Yamaguchi, C. Tsutsumi, et. al.: Polymer Degradation and Stability Vol. 93 (2008), p.117~124.

[14] G. A. Skarja and K. A. Woodhouse: Journal of Applied Polymer Science Vol. 75 (2000), p.1522~1534.
