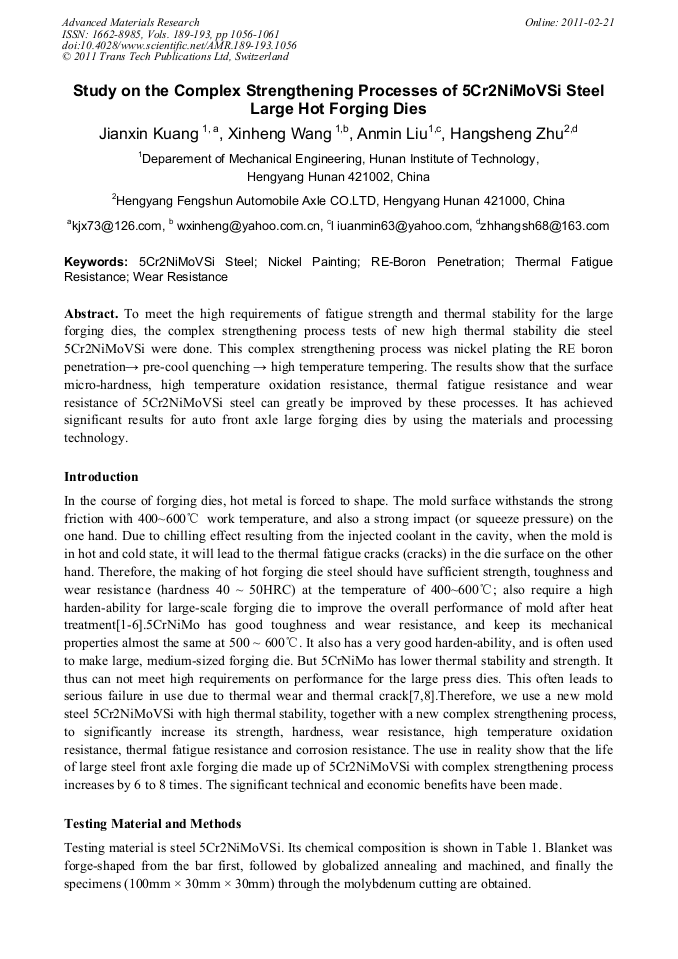

Study on the Complex Strengthening Processes of 5Cr2NiMoVSi Steel Large Hot Forging Dies

Abstract:

To meet the high requirements of fatigue strength and thermal stability for the large forging dies, the complex strengthening process tests of new high thermal stability die steel 5Cr2NiMoVSi were done. This complex strengthening process was nickel plating the RE boron penetration→ pre-cool quenching → high temperature tempering. The results show that the surface micro-hardness, high temperature oxidation resistance, thermal fatigue resistance and wear resistance of 5Cr2NiMoVSi steel can greatly be improved by these processes. It has achieved significant results for auto front axle large forging dies by using the materials and processing technology.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 1056-1061
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.1056
• Online since: February 2011
• Authors: Jian Xin Kuang, Xin Heng Wang, An Min Liu, Hang Sheng Zhu
• Keywords: 5Cr2NiMoVSi Steel, Nickel Painting, Re-Boron Penetration, Thermal Fatigue Resistance, Wear Resistance

References

[1] Wang shuqi, Cui xianghong. Toughness Requirements of Hot-forging Dies [J]. China Mechanical Engineering, 2004, (8) : 90-93.

[2] Wang yunyan, Ye shangchuan. Mechanical Engineering Materials [M]. Machinery Industry Press, 2004: 174-176.

[3] Xu wenXiao, Zhang man, Yang changqun, etc. Development of Build-up Welding Rod Used for Wear-Resistance and Cold-Heat Fatigue Resistance Hot Forging Die [J]. Automobile Technology & Material, 2004, (8) : 12-14.

[4] Li yueen, Zhao jun, Wang wei. Research on relationship between mold surface failure and life [J]. Forging & Stamping Technology, 2009, (2) : 91-93.

[5] Dong gengye, He xiaomei. The Research of Large-scale High-temperature Hot Forging Die Process of Quenching [J]. Mechanical & Electrical Engineering Technology, 2007, (9) : 18-20.

[6] Wang meng, Bao zhijian. Deficiency formation and analysis on automotive axle heat-forged mould [J]. Chinese Journal of Construction Machinery, 2008, (3) : 364-369.

[7] Sun weilian, Wang chengbiao. Analysis on the Quenching-Cracking for Hot-Forging Die Made of 3Cr2W8V Steel [J]. Heat Treatment of Metals, 2003, (6) : 52-54.

[8] Ai mingping, Lai kexian. Process study on overlaying welding repair of 5CrNiMo hot-working die [J]. Forging & Stamping Technology, 2009, (4) : 114-116.

[9] Hao, shaoxiang, Sun yufu, Yang kaijun. Microstructure and Properties of Boronizing Layer and Boronizing Process of Cr12MoV Steel [J]. Heat Treatment of Metals, 2006, (7) : 67-69.

[10] Wang xinheng, Kuang Jianxin, He helin, etc. Effect of Cerium Dioxide on the Structure and Wear-Resistance of Laser Cladding Ni-Based Cement Composite Coating [J]. Materials Protection , 2009, (2) : 13-15.
