Research on the Temperature Field and Roast Mechanism of Blast Furnace Tap-Hole Clay

Abstract:

The temperature field of blast furnace tap hole clay was analyzed by using ABAQUS software. Samples taken from the tap-hole clay in depth of 1200mm, 2200mm, 2600mm and 2800mm after roasted for 100 minutes were studied by using XRD and SEM to investigate their roast mechanism and microstructure at different temperatures. The results show that the ore phase of the tap-hole clay in depth of 1200mm remained unchanged but only tar and asphalt appear the carbonation phenomena. There is a large number of SiC crystalline phase appears in depth of 2200mm. At the same time, porosity increases and coke structure is formed. The air permeability is enhanced. In the tap-hole clay of 2600mm～2800mm depth, elongated rod-likeβ-Si3N4 grains obviously increase while the SiC grains decrease. A large number of high-temperature flocculent mullite phase appears and the high-temperature strength of the tap-hole clay is strengthened.

You might also be interested in these eBooks

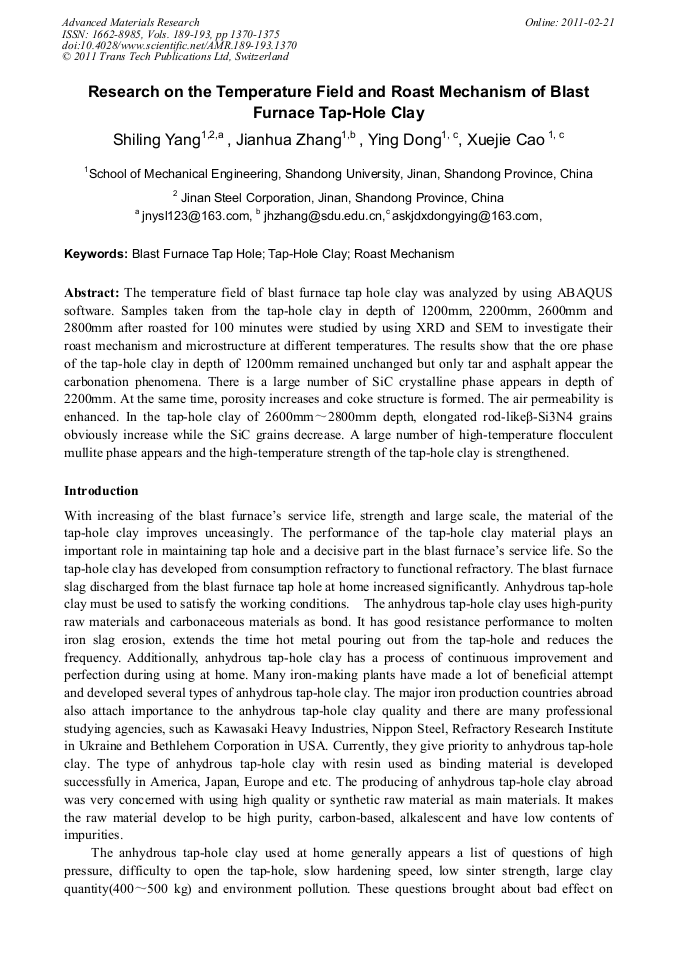

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

1370-1375

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.1370

Citation:

Cite this paper

Online since:

February 2011

Authors:

Shi Ling Yang, Jian Hua Zhang, Ying Dong, Xue Jie Cao

Keywords:

Blast Furnace Tap Hole, Roast Mechanism, Tap-Hole Clay

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] DONG Xiaochun, LIU Miao, GUAN Shanji. The Actuality and Development of Tap-hole Clay Used in Large Blast Furnace[J]. Laigang Science and Technology. 2007，(5)：81-83.

Google Scholar

[2] Reinforced Plastics Group. ABAQUS Wound Composite[J]. Reinforced Plastics. 2006， 50(2)：31.

Google Scholar

[3] Guido Dhondt. Mixed-Mode Intensity Distributions Calculated by the Program ABAQUS[J]. Werkstoffe und Bauteile. Technologien und Anwendungen. 2000，42(10)：396-400.

Google Scholar

[4] CHEN Junhong. The Composition and Structure of Ferrosilicon Nitride and the Effect on High-temperature Behavior of Al2O3 - SiC – C Materials [D]. Beijing: University of Science and Technology Beijing. 2006: 95.

Google Scholar

[5] CUI Ping. Research and Optimization Design on Blast Furnace and Drills[D]. Jinan: Shandong University. 2009：26-30.

Google Scholar

[6] ZHANG Xianpeng. Ferroalloy Dictionary[M]. Shenyang：Liaoning Science and Technology Press. (1996).

Google Scholar

[7] DU Mingxi. The Properties of Ferrosilicon Nitride in Blast Furnace Tap-hole Clay[J]. Foreign Refractories. 1998. (12)：41一44.

Google Scholar

[8] CHEN Junhong, SUN Jialin, HONG Yanruo, etc. Distribution Status of Fe in Ferro Silicon Nitride[J]. Journal of The Chinese Ceramic Society. 2004. 32(11)：1347 1350.

Google Scholar

[9] Cheng Laifen，Xu Yongdong，Zhang Litong，Yin Xiaowei．Oxidation Behaviors of Three-dimensional SiC/SiC Composites in Air and Combustion Environment. Composites PartA: Applied Science and Manufacturing (Incorporating Composites and Composites Manufacturing)，2000, 31(9)：1015-102.

DOI: 10.1016/s1359-835x(00)00045-2

Google Scholar

[10] GUO Haizhu, YU Sen. Handbook on Refractory Raw Materials[M]. Beijing: China Building Materials Industry Press. 2000：551.

Google Scholar

[11] LI Junxi. Effects of Ferrosilicon Nitride on Tap-hole Clay Property[D]. Beijing: University of Science and Technology Beijing. 2004：52-55.

Google Scholar
