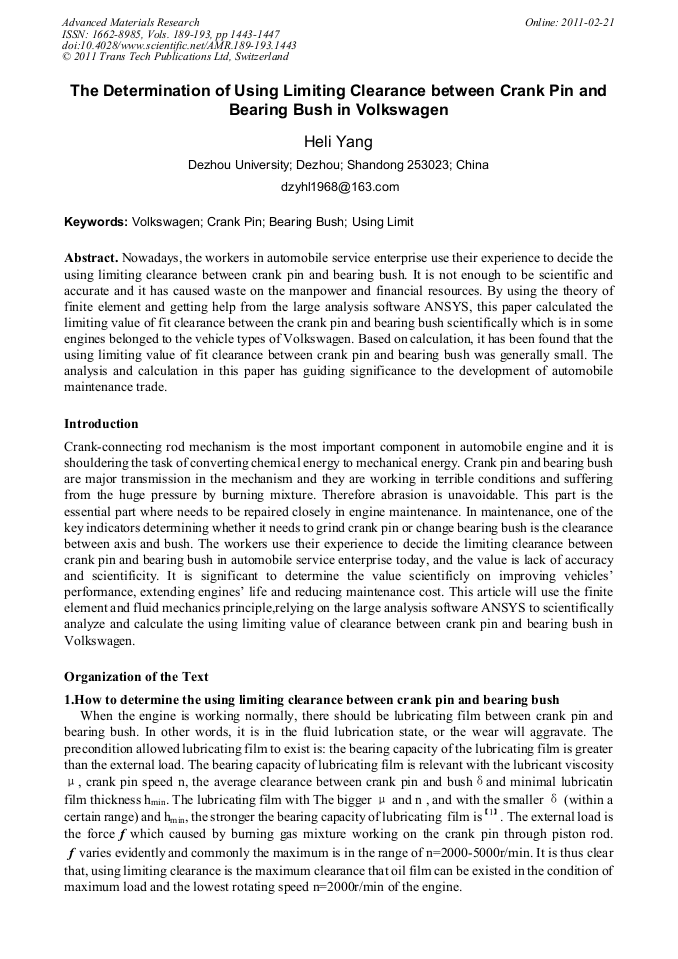

The Determination of Using Limiting Clearance between Crank Pin and Bearing Bush in Volkswagen

Abstract:

Nowadays, the workers in automobile service enterprise use their experience to decide the using limiting clearance between crank pin and bearing bush. It is not enough to be scientific and accurate and it has caused waste on the manpower and financial resources. By using the theory of finite element and getting help from the large analysis software ANSYS, this paper calculated the limiting value of fit clearance between the crank pin and bearing bush scientifically which is in some engines belonged to the vehicle types of Volkswagen. Based on calculation, it has been found that the using limiting value of fit clearance between crank pin and bearing bush was generally small. The analysis and calculation in this paper has guiding significance to the development of automobile maintenance trade.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 1443-1447
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.1443
• Online since: February 2011
• Authors: He Li Yang
• Keywords: Bearing Bush, Crank Pin, Using Limit, Volkswagen

References

[1] Yang Zhengmin. Vehicle Repair. Anhui; Anhui Science and Technology Press, (2001).

[2] Zhu Lin, Li Lin, Fan Ming, Wang Jianmei, Huang Qingxue. Sleeveless Bearings Oil Film Pressure Finite Element Theory. Shanxi Metallurgy, 2008, 2: 6.

[3] Chen Boxian, Qiu Zugan. Fluid Lubrication Theory and Application ［M］. Beijing: Mechanical Industry Press, (1991).

[4] Gao Qingshui, Yang Jiangang. Hydrodynamic Lubrication Sliding Bearing Dynamic Characteristic Research Based on the CFD. Lubrication and Sealing, 2008, 9: 65.

[5] Luo Dabing, Wu Luming, Shuai Qi. Radial Dynamic Pressure Sliding Bearing Spindle Axis Orbit Dynamic Simulation. Mechanical Design, 2006, 4: 51.
