Direct Electro-Magnetic Mechanical Analysis of U-Shape Coil

Abstract:

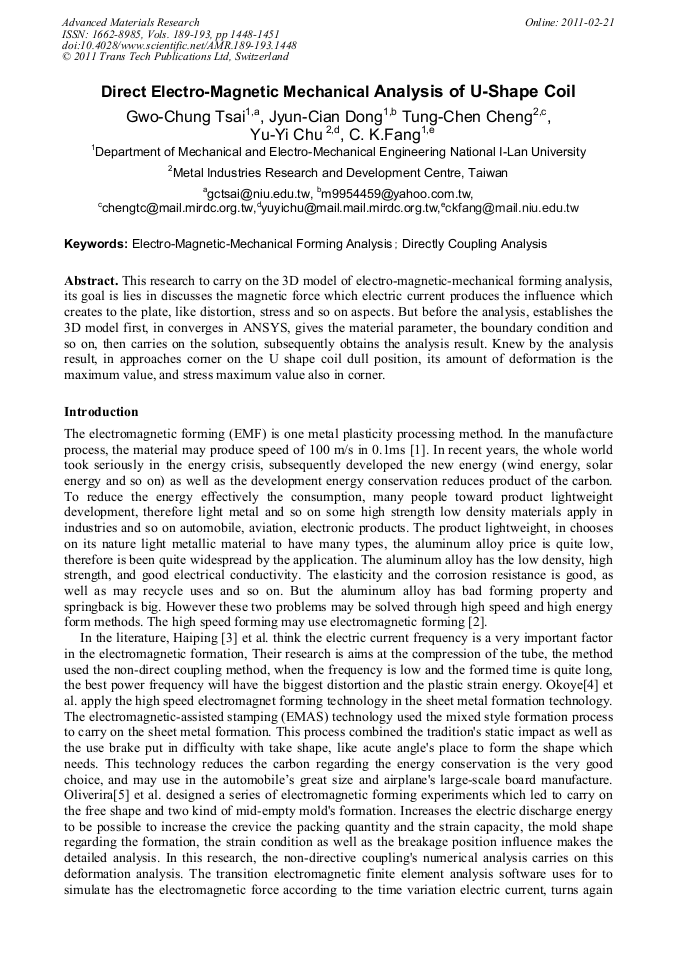

This research to carry on the 3D model of electro-magnetic-mechanical forming analysis, its goal is lies in discusses the magnetic force which electric current produces the influence which creates to the plate, like distortion, stress and so on aspects. But before the analysis, establishes the 3D model first, in converges in ANSYS, gives the material parameter, the boundary condition and so on, then carries on the solution, subsequently obtains the analysis result. Knew by the analysis result, in approaches corner on the U shape coil dull position, its amount of deformation is the maximum value, and stress maximum value also in corner.
