Experiment and Numerical Study of Annular Flow Entrainment Mechanism in Oil-Air Lubrication Pipe

Abstract:

Annular flow is a based flow pattern of two-phase in the pipe, and oil air flow in delivery pipe of Oil-Air lubrication (OAL) system is one of them. In order to learn the entrainment mechanism of annular flow in OAL pipe, both experiment adopted observational method and numerical simulation used Computational Fluid Dynamic (CFD) were carried out. The pipe diameter is 4mm and Volume of Fluid (VOF) model was used for two phase flow in simulation. The results shows that: it is a wave-annular flow in OAL pipe, and the oil wave in pipe is affected by air, when air velocity is low, the wave is clearly and regularly, but when air velocity increases, the wave become turbulent. When oil or air flow rate increases, the shear stress of pipe wall will be increased, the wave height will be increased as air velocity increases.

You might also be interested in these eBooks

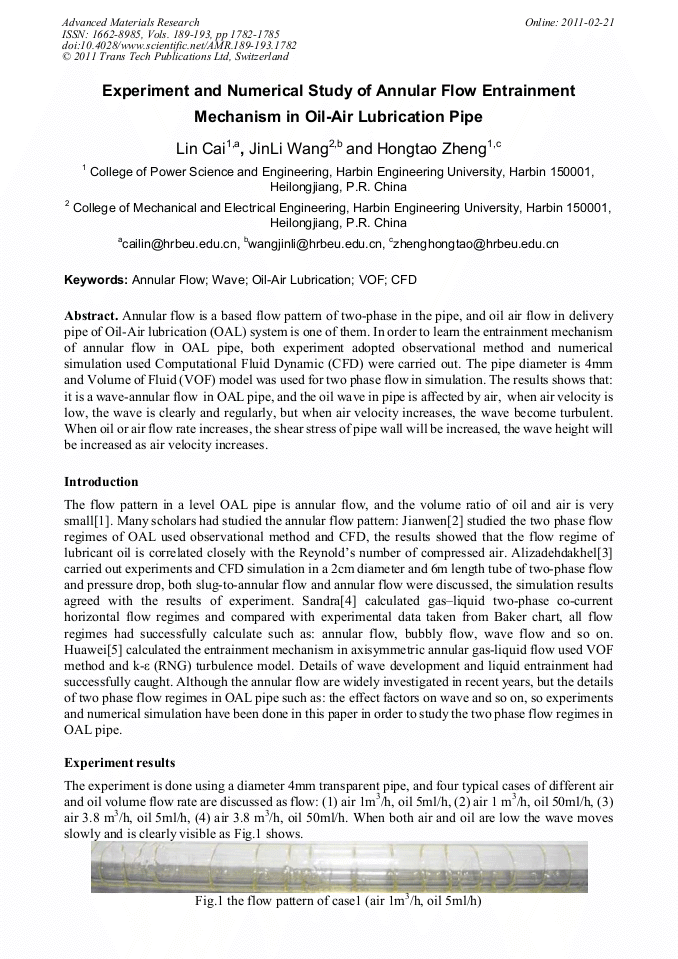

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

1782-1785

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.1782

Citation:

Cite this paper

Online since:

February 2011

Authors:

Lin Cai, Jin Li Wang, Hong Tao Zheng

Keywords:

Annular Flow, Computational Fluid Dynamics (CFD), Oil-Air Lubrication, Volume of Fluid (VOF), Wave

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L.X. Cheng, G. Ribatski and J.R. Thome. Two-Phase Flow Patterns and Flow-Pattern Maps: Fundamentals and Applications: Applied Mechanics Reviews. Vol. 61 (2008), pp.1-28.

DOI: 10.1115/1.2955990

Google Scholar

[2] J.W. Wang, AnQi. Investigation of Two Phase Flow Regimes in Transport Pipe in Oil Air Lubrication System. Journal of East China University of Science and Technology (Natural Science Edition). Vol. 35 (2009), pp.324-328.

Google Scholar

[3] A. Alizadehdakhel, M. Rahimi and J. Sanjari. CFD and artificial neural net work modeling of two-phase flow pressure drop. International Communications in Heat and Mass Transfer. Vol. 36 (2009), pp.850-856.

DOI: 10.1016/j.icheatmasstransfer.2009.05.005

Google Scholar

[4] C.K. Sandra, DeSchepper, and G.J. Heynderickx. CFD modeling of all gas-liquid and vapor-liquid flow regimes predicted by the Baker chart. Chemical Engineering Journal. Vol. 38 (2008), p.349–357.

DOI: 10.1016/j.cej.2007.06.007

Google Scholar

[5] H.W. Han, K. Gabriel. A Numerical Study of Entrainment Mechanism in Axisymmetric Annular Gas-Liquid Flow. Journal of Fluids Engineering. Vol. 129 (2007), pp.295-301.

DOI: 10.1115/1.2427078

Google Scholar
