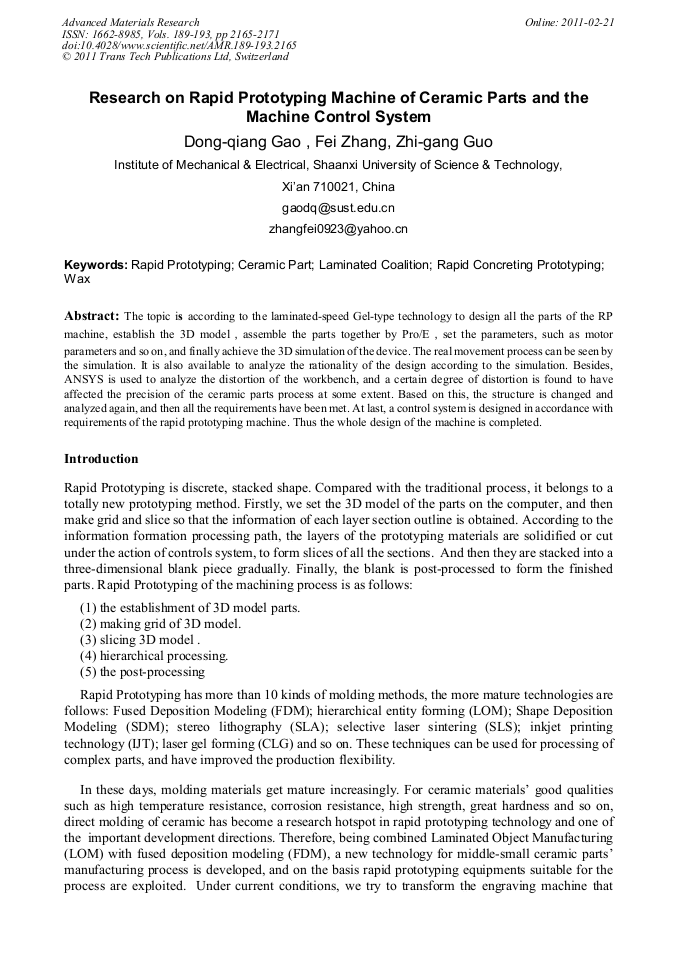

Research on Rapid Prototyping Machine of Ceramic Parts and the Machine Control System

Abstract:

The topic is according to the laminated-speed Gel-type technology to design all the parts of the RP machine, establish the 3D model，assemble the parts together by Pro/E，set the parameters, such as motor parameters and so on, and finally achieve the 3D simulation of the device. The real movement process can be seen by the simulation. It is also available to analyze the rationality of the design according to the simulation. Besides, ANSYS is used to analyze the distortion of the workbench, and a certain degree of distortion is found to have affected the precision of the ceramic parts process at some extent. Based on this, the structure is changed and analyzed again, and then all the requirements have been met. At last, a control system is designed in accordance with requirements of the rapid prototyping machine. Thus the whole design of the machine is completed.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 2165-2171
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.2165
• Online since: February 2011
• Authors: Dong Qiang Gao, Fei Zhang, Zhi Gang Guo
• Keywords: Ceramic Part, Laminated Coalition, Rapid Concreting Prototyping, Rapid Prototyping (RP), Wax

References

[1] Yang Wan-li, Wang Xiu-feng, Jiang Hong-tao, et al. Design of a new type of device about rapid prototyping manufacturing for ceramic parts [J]. Machinery Design & Manufacture, 2007, (4): 134-136.

[2] Wang Xiu-feng, Jiang Hong-tao, Sun Yong, et al. A rapid prototyping method for ceramic parts: China, CN200510041976. 4 [P]. (2005).

[3] Li Di-chen, Zhao Wan-hua, Lu Bing-heng, Development of rapid prototyping technology[J]. Manufacturing Technology & Machine, 2003 (3): 8-9.

[4] Zhong Ling, Ye Yuan-zhen, Zhang Jin-tao, et al. Automatic control refit of boring machine based on PLC [J]. Journal of Engineering Design, 2005, 12(3): 182-184.

[5] Sun Zhi-yong, Zhao Yan-jiang. Numerical control & electric control technology [M]. Beijing: China Machine Press, (2002).

[6] Zhang Ji-tang, Guo Ping-ying, Wang Hong-yu, et al. Rapid prototyping device for CNC machine tools[J]. Manufacturing Technology & Machine Tool, 1999(2): 19-20.

[7] Xu Lian-qiang. Rapid prototyping technology in the design of ceramic products [J]. Jiang su ceramic, 2009，5(42): 23-24.

[8] Li Zhong-yang, Xie Cun-xi, Yang Jia-hong. Rapid extraction of hierarchical algorithm for rapid prototyping and adjacent to the topology information based on STL [J]. Computer Engineering and Applications，2002，7.

[9] Li Li-ming, Practical Tutorial ANSYS finite element analysis [M], Beijing: Tsinghua University Press, (2005).

[10] Li Guo-hou, Yang Qing-jie, Hong Yuan. PLC Design Principles and Applications [M]. Beijing, Chemical Industry Press, (2005).

[11] Liu Mei-jun, Programmable Controller Technology [M]. Fujian, Fujian Science and Technology Press, (2006).

[12] Gao Dong-qiang , Tian Zhen-ya, Hao Da-jian, Guo Nan, Control system rapid prototyping for ceramic parts [J]. Machine Tool & Hydraulics, 2008，10（36）: 217-220.

[13] Zhu Hu, Yang Zhong-feng, Zhang Wei, The application and research of STL file [J]，Machine Tool & Hydraulics . 2009，6: 186-1.
