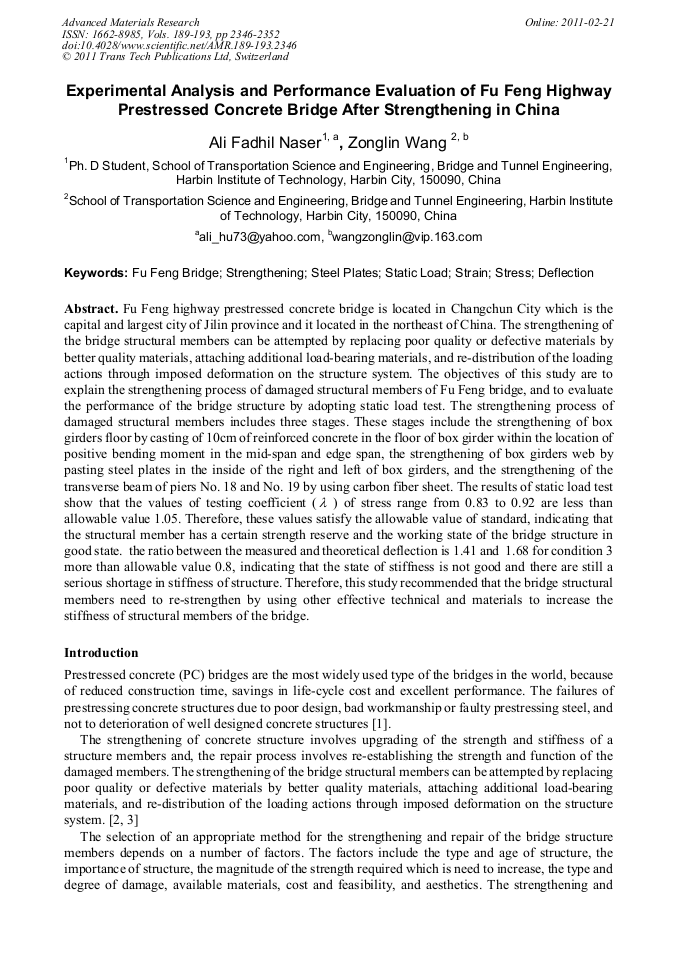

Experimental Analysis and Performance Evaluation of Fu Feng Highway Prestressed Concrete Bridge after Strengthening in China

Abstract:

Fu Feng highway prestressed concrete bridge is located in Changchun City which is the capital and largest city of Jilin province and it located in the northeast of China. The strengthening of the bridge structural members can be attempted by replacing poor quality or defective materials by better quality materials, attaching additional load-bearing materials, and re-distribution of the loading actions through imposed deformation on the structure system. The objectives of this study are to explain the strengthening process of damaged structural members of Fu Feng bridge, and to evaluate the performance of the bridge structure by adopting static load test. The strengthening process of damaged structural members includes three stages. These stages include the strengthening of box girders floor by casting of 10cm of reinforced concrete in the floor of box girder within the location of positive bending moment in the mid-span and edge span, the strengthening of box girders web by pasting steel plates in the inside of the right and left of box girders, and the strengthening of the transverse beam of piers No. 18 and No. 19 by using carbon fiber sheet. The results of static load test show that the values of testing coefficient ( ) of stress range from 0.83 to 0.92 are less than allowable value 1.05. Therefore, these values satisfy the allowable value of standard, indicating that the structural member has a certain strength reserve and the working state of the bridge structure in good state. the ratio between the measured and theoretical deflection is 1.41 and 1.68 for condition 3 more than allowable value 0.8, indicating that the state of stiffness is not good and there are still a serious shortage in stiffness of structure. Therefore, this study recommended that the bridge structural members need to re-strengthen by using other effective technical and materials to increase the stiffness of structural members of the bridge.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 2346-2352
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.2346
• Online since: February 2011
• Authors: Ali Fadhil Naser, Zong Lin Wang
• Keywords: Deflection, Fu Feng Bridge, Static Load, Steel Plate, Strain, Strengthening, Stress

References

[1] C. Nathalie, and L. Zoubir, Field Performance of prestressed Concrete Bridge Girder Protected by Cathodic Protection and Concrete Surface Treatment, 7th International Conference on Short and Medium Span Bridges, pp.1-10, Montreal, (2006).

[2] E. Naser, Repair and Strengthening of Reinforced Concrete Structure, R. V. Anderson Associated Limited, Toronto, Canada. (2005).

[3] F. Hugenschmidt, Strengthening of Existing Concrete Structures with Bonded Reinforcements, EMPA, Switzerland, (1981).

[4] A. W. Daly, Strengthening of Bridges Using External Post-Tensioning, The 2nd Conference of Eastern Asia Society for Transportation Studies ,P.P. 29-31, Seoul, Korea, , (1997).

[5] L. Hai, L. Wei, J. Daved, and H. Ai, Strengthening an in-Service Concrete with CFRP Bars, Journal of Zhejiang University SCIENCE A 10(5), p. pp.635-644, China, (2009).

[6] J. James, E. Issam, and C. Ching, Performance Evaluation of Bridges with Structural Bridge Deck Overlays (SBDO), Technical Report No. KTC-06-05/FRT 81-82-97F, Kentucky Transportation Center, University of Kentucky (2006).

[7] A. Aktan, R. Miller, B. Shahrooz, M. Zwick, M. Heckenmcreller, , I. Ho, W. Hrinko, and T. Toksoy, Nondestructive and destructive Testing of a Reinforced Concrete Slab Bridge and Associated Analytical Studies, Report FHWA/OH-93/017, U. S. Department of Transportation, Washington, D. C. (1992).

[8] R. Cook, F. Fagundo, A. Rozer, and H. Muyer, Service, Fatigue, and Ultimate Load Evaluation of a Continuous Prestressed Flat-Slab Bridge System, TRR, No. 1393, Washington, D. C. -104-111. (1993).

[9] A. Cherilyn, and S. Kim, Performance of Steel, Concrete, Prestressed Concrete, and Timber Bridges, Proceedings of 4th International conference on short and medium span bridges, The Canadian Society for Civil Engineering, 341-354. Halifax, Nova Scotia, Canada. Montreal, P.Q., Canada. (1994).

DOI: 10.14359/3755

[10] JTJ021-89, Design Code for Highway Bridge and Culverts, People's Republic of China, (1989).

[11] JTJ023-85, Design Code for Highway Reinforced Concrete and Prestressed Concrete Bridges and Culverts, People's Republic of China, (1985).

[12] Traffic Highway Research Institute, Experimental Method for Long Span Concrete Bridge, People's Republic of China, (1982).
