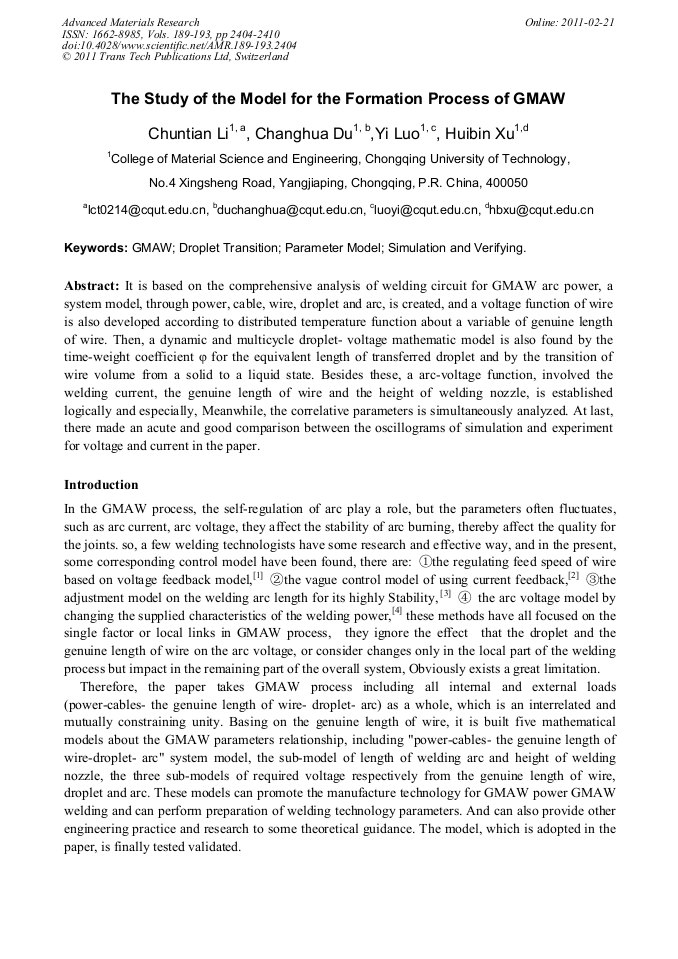

The Study of the Model for the Formation Process of GMAW

Abstract:

It is based on the comprehensive analysis of welding circuit for GMAW arc power, a system model, through power, cable, wire, droplet and arc, is created, and a voltage function of wire is also developed according to distributed temperature function about a variable of genuine length of wire. Then, a dynamic and multicycle droplet- voltage mathematic model is also found by the time-weight coefficient φ for the equivalent length of transferred droplet and by the transition of wire volume from a solid to a liquid state. Besides these, a arc-voltage function, involved the welding current, the genuine length of wire and the height of welding nozzle, is established logically and especially, Meanwhile, the correlative parameters is simultaneously analyzed. At last, there made an acute and good comparison between the oscillograms of simulation and experiment for voltage and current in the paper.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 2404-2410
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.2404
• Online since: February 2011
• Authors: Chun Tian Li, Chang Hua Du, Yi Luo, Hui Bin Xu
• Keywords: Droplet Transition, GMAW, Parameter Model, Simulation, Verifying

References

[1] Kang MJ, Rhee S. arc stability estimation and control for arc stabilization in short circuit transfer mode of C02 arc welding. Science and Technology of welding and Joining, 200l, 6 (2): 95-102.

DOI: 10.1179/136217101101538596

[2] Tusek, Janez, (Inst za varilstvo Ptujska). Influence of wire extension length on the welding process [J]. International Journal for the Joining of Materials, 1996, 8(3): 112-120.

[3] Zhiming, Zhu, Yunjie, Bao, Songtao, Yu. [J]. Transactions of the China Welding Institution, 2002, 23(3): 26-28.

[4] Mitat, Tanoueh. Automatic setting of the arc voltage using fuzzy logic. [J]. Welding Review Intemational, 1996: 130-133.

[5] Shuyan Yin. The Principles and Adjustment of the Welding Equipments for GMAW. [M]. Beijing: Mechanical Industry Press, 2000. 5-20, 40-44.

[6] Choisk. Yoocd, Kimys. The dynamic analysis of metal transfer in Pulsed current gas metal arc welding [J]. J . Phys. D: Appl. Phys. 1998, 31: 208-214.

[7] Nemchinsky V.A. The rate of melting of the electrode during arc welding-the influence of discrete removal of the melt [J].J. Phys. D: Appl. Phys. 1998, 31: 1566-1570.

DOI: 10.1088/0022-3727/31/13/010

[8] Shisheng, Huang. The power for arc welding and digital control. [M]. Beijing: Mechanical Industry Press, 2007. 35-36.

[9] Shisheng, Huang, Wensong, Yu, Jiaxiang, Xue. [J]. Transactions of the China Welding Institution, 1999, 20 (3)20-24.
