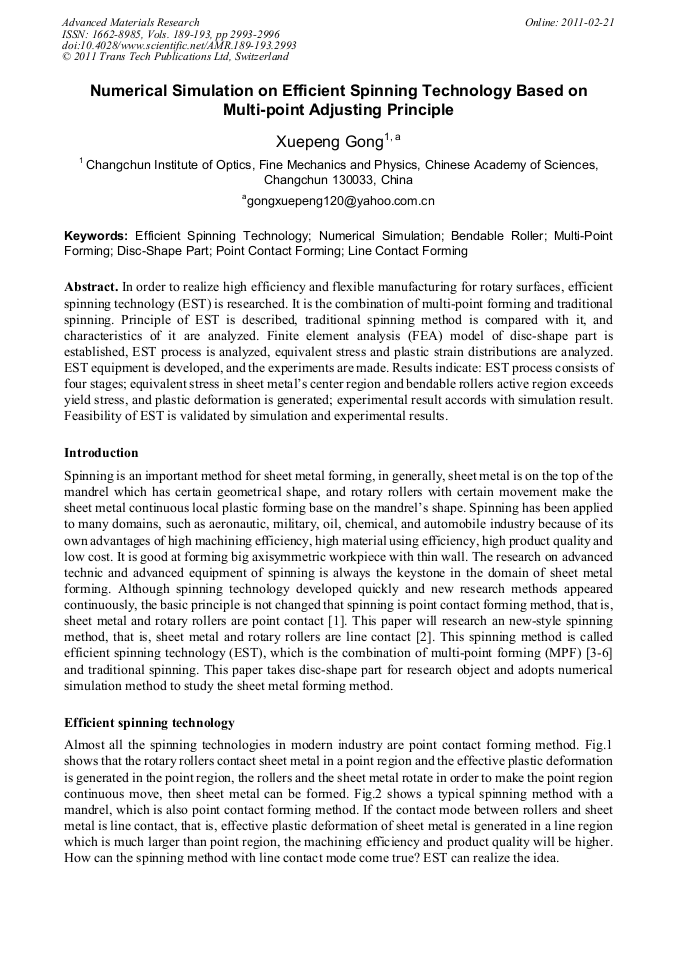

Numerical Simulation on Efficient Spinning Technology Based on Multi-Point Adjusting Principle

Abstract:

In order to realize high efficiency and flexible manufacturing for rotary surfaces, efficient spinning technology (EST) is researched. It is the combination of multi-point forming and traditional spinning. Principle of EST is described, traditional spinning method is compared with it, and characteristics of it are analyzed. Finite element analysis (FEA) model of disc-shape part is established, EST process is analyzed, equivalent stress and plastic strain distributions are analyzed. EST equipment is developed, and the experiments are made. Results indicate: EST process consists of four stages; equivalent stress in sheet metal’s center region and bendable rollers active region exceeds yield stress, and plastic deformation is generated; experimental result accords with simulation result. Feasibility of EST is validated by simulation and experimental results.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 2993-2996
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.2993
• Online since: February 2011
• Authors: Xue Peng Gong
• Keywords: Bendable Roller, Disc-Shape Part, Efficient Spinning Technology, Line Contact Forming, Multi-Point Forming, Numerical Simulation, Point Contact Forming

References

[1] M. Z. Li, Z. Q. Hu, Z. Y. Cai and X. P. Gong: Chinese Journal of Mechanical Engineering, Vol. 43 (2007)No. 12, pp.155-159 ( in chinese).

[2] Z. Q. Hu, M. Z. Li, Z. Y. Cai and X. P. Gong: J. Materials Science and Engineering A, Vol. 499 (2009), pp.234-237.

[3] Z. Y. Cai, M. Z. Li: J. Pressure Vessels Piping, Vol. 79 (2002), pp.289-296.

[4] C. G. Liu, M. Z. Li and W. Z. Fu: Int. J Adv Manuf Technol, Vol. 35 (2008), pp.1227-1233.

[5] M. Z. Li, Z. Y. Cai and Z. Sui: J. Mater. Process. Technol., Vol. 129 (2002), pp.333-338.

[6] Z. Y. Cai and M. Z. Li: J. Mater. Process. Technol., Vol. 110 (2001), pp.136-141.
