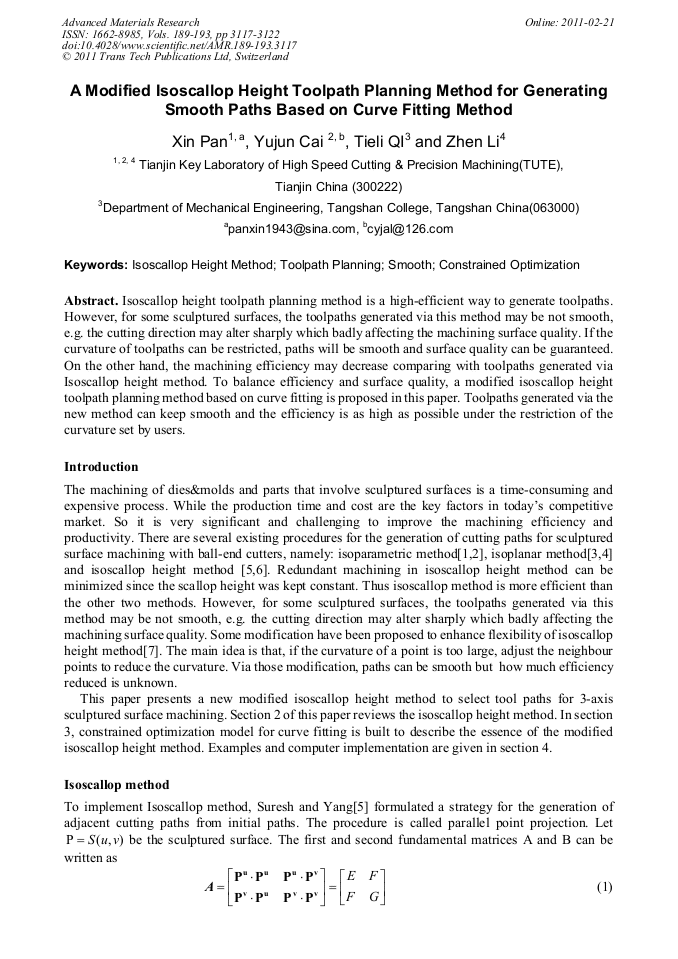

A Modified Isoscallop Height Toolpath Planning Method for Generating Smooth Paths Based on Curve Fitting Method

Abstract:

Isoscallop height toolpath planning method is a high-efficient way to generate toolpaths. However, for some sculptured surfaces, the toolpaths generated via this method may be not smooth, e.g. the cutting direction may alter sharply which badly affecting the machining surface quality. If the curvature of toolpaths can be restricted, paths will be smooth and surface quality can be guaranteed. On the other hand, the machining efficiency may decrease comparing with toolpaths generated via Isoscallop height method. To balance efficiency and surface quality, a modified isoscallop height toolpath planning method based on curve fitting is proposed in this paper. Toolpaths generated via the new method can keep smooth and the efficiency is as high as possible under the restriction of the curvature set by users.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 3117-3122
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.3117
• Online since: February 2011
• Authors: Xin Pan, Yu Jun Cai, Tie Li Qi, Zhen Li
• Keywords: Constrained Optimization, Isoscallop Height Method, Smooth, Tool-Path Planning

References

[1] G. A Catania: Computers in Industry Vol. 20(1992), p.275.

[2] G. C Loney and T. M Ozsoy: Computer Aided Design Vol. 19(1987), p.85.

[3] B.K. Choi and C.S. Lee, et al. Computer Aided Design Vol. 20(1988), p.127.

[4] Y. Huang and J. H. Oliver: The International Journal of Advanced Manufacturing Technology Vol. 9 (1994), p.281.

[5] K Suresh and D.C. H. Yang: Journal of Engineering for Industry (Transactions of the ASME) Vol. 116(1994), p.253.

[6] His-Yung Feng, Huiwen Li: Computer Aided Design Vol. 34(2002), p.647.

[7] Zhanjun Li, Xia Wang and Zhen Li:  Machinery Design & Manufacture (In Chinese) Vol. 6(2010), p.243.

[8] J. Nocedal and S. J. Wright: Numerical Optimization. Springer Series in Operations Research [M]. New York: Springer-Verlag, (1999).
