Interrelation between Microstructure and Mechanical Properties of Heavy Section Ductile Iron Casting

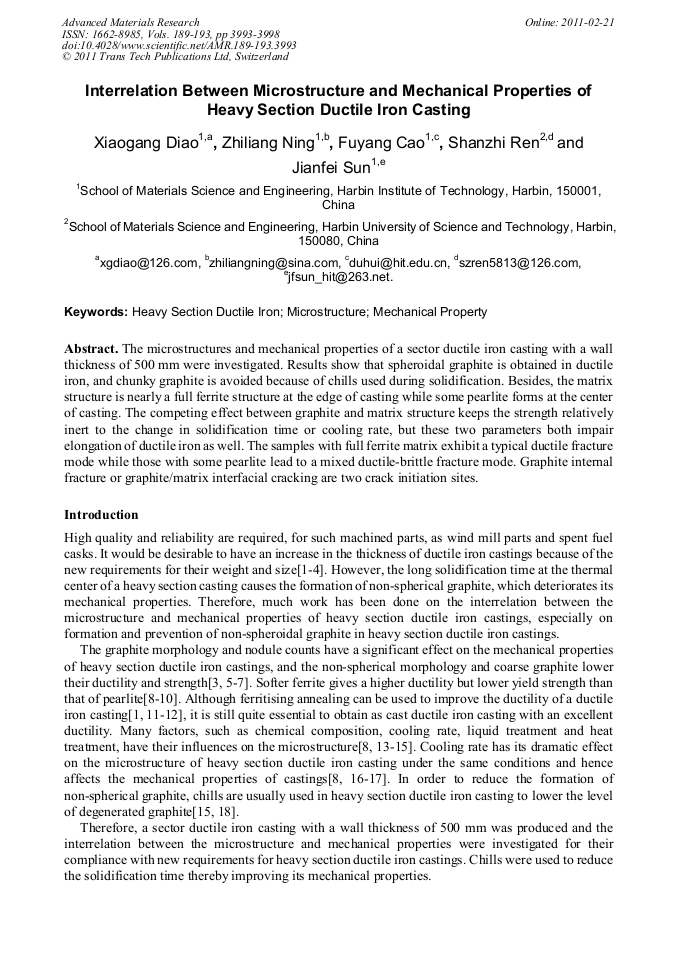

Abstract:

The microstructures and mechanical properties of a sector ductile iron casting with a wall thickness of 500 mm were investigated. Results show that spheroidal graphite is obtained in ductile iron, and chunky graphite is avoided because of chills used during solidification. Besides, the matrix structure is nearly a full ferrite structure at the edge of casting while some pearlite forms at the center of casting. The competing effect between graphite and matrix structure keeps the strength relatively inert to the change in solidification time or cooling rate, but these two parameters both impair elongation of ductile iron as well. The samples with full ferrite matrix exhibit a typical ductile fracture mode while those with some pearlite lead to a mixed ductile-brittle fracture mode. Graphite internal fracture or graphite/matrix interfacial cracking are two crack initiation sites.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 3993-3998
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.3993
• Online since: February 2011
• Authors: Xiao Gang Diao, Zhi Liang Ning, Fu Yang Cao, Shan Zhi Ren, Jian Fei Sun
• Keywords: Heavy Section Ductile Iron, Mechanical Property, Microstructure

References

[1] C. Labrecque and M. Gagné: Can. Metall. Quart., Vol. 37 (1998), p.343.

[2] K. F. Nilsson, M. Burstrom, F. Lofajand C. G. Andersson: Eng. Fail. Anal., Vol. 14 (2007), p.47.

[3] R. Källbom, K. Hamberg, M. Wessénand L. E. Björkegren: Mater. Sci. Eng., A, Vol. 413-414 (2005), p.346.

[4] P. Minnebo, K. F. Nilssonand D. Blagoeva: J. Mater. Eng. Perform., Vol. 16 (2007), p.35.

[5] H. W. Hoover: AFS Trans., Vol. 94 (1986), p.601.

[6] I. Asenjo, P. Larranaga, J. Sertucha, R. Suarez, J. M. Gomez, I. Ferrerand J. Lacaze: Int. J. Cast Met. Res., Vol. 20 (2007), p.319.

[7] R. Källbom, K. Hambergand L. E. Björkegren: Chunky Graphite-Formation and Influence on Mechanical Properties in Ductile Cast Iron, Seminar on Competent Design by Castings, Espoo, FINLAND, Jun 13-14, 2005, 63.

[8] K. F. Nilsson and V. Vokal: Mater. Sci. Eng., A, Vol. 502 (2009), p.54.

[9] J. M. Chou, M. H. Honand J. L. Lee: J. Mater. Sci., Vol. 25 (1990), p. (1965).

[10] Y. H. Shy, C. H. Hsu, S. C. Leeand C. Y. Hou: Mater. Sci. Eng., A, Vol. 278 (2000), p.54.

[11] J. P. Monchoux, C. Verduand R. Fougeres: Scr. Mater., Vol. 42 (2000), p.1047.

[12] H. Takeda, K. Asanoand H. Yoneda: Int. J. Cast Met. Res., Vol. 1 (2008), p.81.

[13] M. N. Ahmadabadi, E. Niyama, M. Tanino, T. Abeand T. Ohide: Metall. Mater. Trans. A, Vol. 25 (1994), p.911.

[14] L. Collini, G. Nicolettoand R. Konecna: Mater. Sci. Eng., A, Vol. 488 (2008), p.529.

[15] P. K. Basutkar, C. R. Loperand C. L. Babu: AFS Trans., Vol. 78 (1970), p.429.

[16] N. Fatahalla, S. Bahiand O. Hussein: J. Mater. Sci., Vol. 31 (1996), p.5765.

[17] Y. Tatsuzawa, S. Jungand H. Nakae: Int. J. Cast Met. Res., Vol. 21 (2008), p.17.

[18] P. Larranaga, I. Asenjo, J. Sertucha, R. Suarez, I. Ferrerand J. Lacaze: Metall. Mater. Trans. A, Vol. 40 (2009), p.654.

[19] A. Scozzafava, L. Tomesaniand A. Zucchelli: J. Mater. Process. Technol., Vol. 153 (2004), p.853.

[20] P. W. Voorhees: J. Stat. Phys., Vol. 38 (1985), p.231.

[21] W. W. Mullins and R. F. Sekerka: J. Appl. Phys., Vol. 34 (1963), p.323.

[22] J. S. Zhang, H. W. Du, W. Liang, C. X. Xuand B. F. Lu: J. Alloys Compd., Vol. 427 (2007), p.244.

[23] S. Balos and L. Sidjanin: J. Mater. Process. Technol., Vol. 209 (2009), p.482.

[24] P. Dierickx, C. Verdu, A. Reynaudand R. Fougeres: Scr. Mater., Vol. 34 (1996), p.261.

[25] K. Kocatepe, M. Cerahand M. Erdogan: Mater. Des., Vol. 28 (2007), p.172.

[26] M. Hafiz: J. Mater. Sci., Vol. 36 (2001), p.1293.
