Optimal Design of Cathode’ Working Tooth in ECM for Rifle Based Visual C++

Abstract:

To design an electrochemical machining (ECM) cathode for machining the mixed rifle with large spiral angle and the experiments are difficult, it takes a long period. Visual C++ was adopted to simulate the process for machining rifle as cathode moves according to the Ballistic equation. The models of 3D working tooth on cathode and the processing environment were built and the arithmetic was established. The length of working tooth was initialized. Having compared above points with design parameter, the parameter of cathode’ working tooth will be modified till it be close to design parameter. At last the result for appropriate parameter of cathode’ working tooth was proposed.

You might also be interested in these eBooks

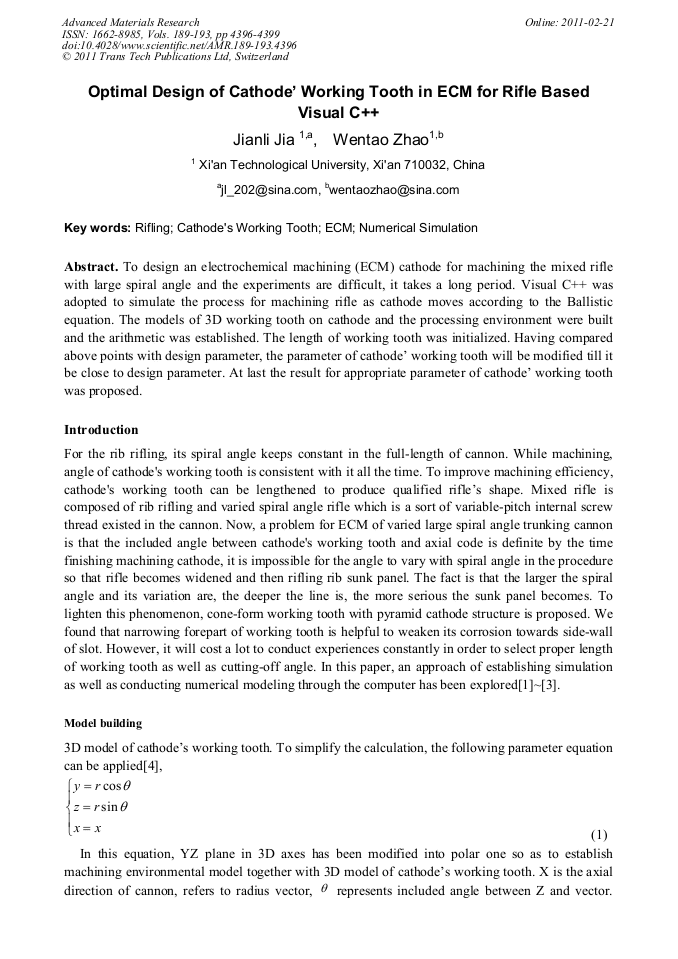

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

4396-4399

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.4396

Citation:

Cite this paper

Online since:

February 2011

Authors:

Jian Li Jia, Wen Tao Zhao

Keywords:

Cathode's Working Tooth, ECM, Numerical Simulation, Rifling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Z.J. Fan, T.C. Wang, Y. J Feng. CNC-ECM of the Mixed Rifle with a Large Spiral Angle in Cannon . Acta Armamentarii, 2005(5): 651～654.

Google Scholar

[2] Davydov A D, Volgin V M, Lyubimov VV: Electrochemical Machining of metals: Fundamentals of Electrochemical Shaping. Russia Journal of Electrochemistry, Vol . 40(2004), pp.1230-1265.

DOI: 10.1007/s11175-005-0045-8

Google Scholar

[3] Rajurkar K P, D Zhu. Minimization of machining allowance in ECM. Annals of the CIRP，Vol . 47(1998), pp.165-168.

DOI: 10.1016/s0007-8506(07)62809-1

Google Scholar

[4] Delores M. Etter, Jeanine A. Inber. Engineering Problem Solving with C++, Beijing, Tsinghua University Press, 2004. 3.

Google Scholar

[5] Z.J. Fan, T.C. Wang. Process technology and research technique of ECM, National defence industrial press, 2004. 10.

Google Scholar
