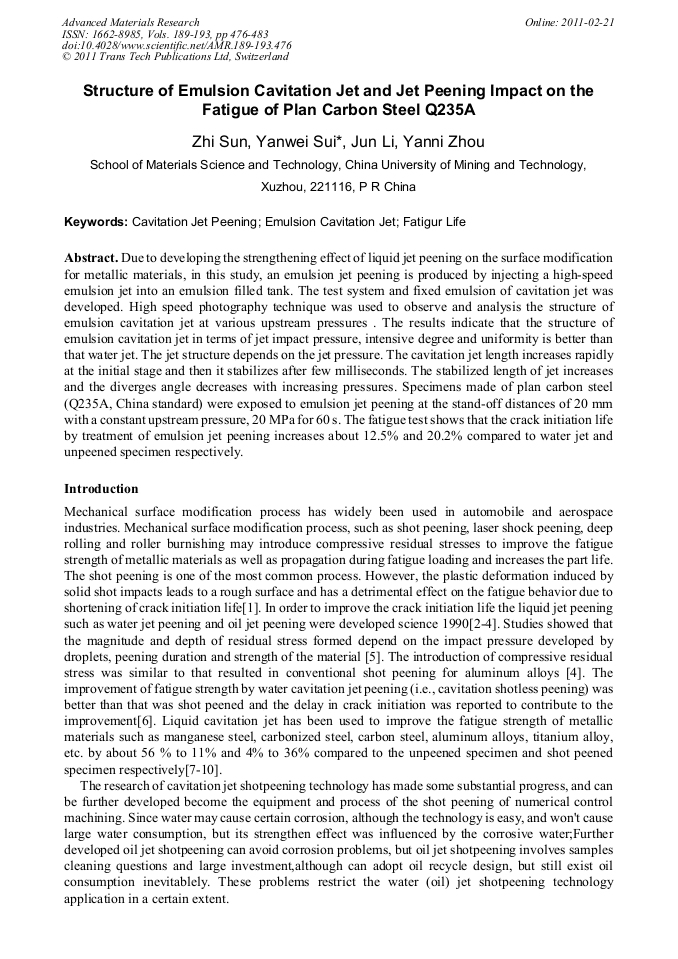

Structure of Emulsion Cavitation Jet and Jet Peening Impact on the Fatigue of Plan Carbon Steel Q235A

Abstract:

Due to developing the strengthening effect of liquid jet peening on the surface modification for metallic materials, in this study, an emulsion jet peening is produced by injecting a high-speed emulsion jet into an emulsion filled tank. The test system and fixed emulsion of cavitation jet was developed. High speed photography technique was used to observe and analysis the structure of emulsion cavitation jet at various upstream pressures . The results indicate that the structure of emulsion cavitation jet in terms of jet impact pressure, intensive degree and uniformity is better than that water jet. The jet structure depends on the jet pressure. The cavitation jet length increases rapidly at the initial stage and then it stabilizes after few milliseconds. The stabilized length of jet increases and the diverges angle decreases with increasing pressures. Specimens made of plan carbon steel (Q235A, China standard) were exposed to emulsion jet peening at the stand-off distances of 20 mm with a constant upstream pressure, 20 MPa for 60 s. The fatigue test shows that the crack initiation life by treatment of emulsion jet peening increases about 12.5% and 20.2% compared to water jet and unpeened specimen respectively.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 476-483
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.476
• Online since: February 2011
• Authors: Zhi Sun, Yan Wei Sui, Jun Li, Yan Ni Zhou
• Keywords: Cavitation Jet Peening, Emulsion Cavitation Jet, Fatigur Life

References

[1] Y S Zong, X Huang, Z Q Li, Application and development of advanced deformation technology[J] . Engineering plastic, 2006, 13(3)：23-29. In Chinese.

[2] Tonshoff H K, Kroos F, Marzenell C. High pressure water peening – a new mechanical surface strengthening process [J]. Annals of CRIP, 1997, 16: 113-116.

DOI: 10.1016/s0007-8506(07)60787-2

[3] Daniewicz S R, Cummings S D. Characterization of a water peening process [J]. Trans. ASME, J. Eng. Mater. Tech, 1999, 121: 336-340.

[4] Sahaya G A, Gnanamoorthy R. A novel surface modification technique for the introduction compressive residual stress and preliminary studies on aluminum alloy AA6063 [J]. Surf. Coat. Tech, 2006, 201: 1768-1775.

DOI: 10.1016/j.surfcoat.2006.03.002

[5] Sahaya G A, Gnanamoorthy R. Surface modification by oil jet peening in Al alloy AA6063-T6 and AA6061-T4: Residual stress and hardening [J]. App. Surf. Sci, 2006, 253: 989-996.

DOI: 10.1016/j.apsusc.2006.02.060

[6] Odhiambo D, Soyama H. Cavitation shotless peening for improvement of fatigue strength of carbonized steel [J]. Int. J. Fatigue, 2003, 25: 1217-1222.

DOI: 10.1016/s0142-1123(03)00121-x

[7] Soyama H, Asahara M. Improvement in fatigue strength of silicon manganese steel SUP7 by using a cavitation jet [J]. JSME Int. J. Ser. A, 2000, 43: 173-178.

DOI: 10.1299/jsmea.43.173

[8] Wanger L. Mechanical surface treatment on titanium and aluminum and magnesium alloy [J]. Mater. Sci. Eng, 1999, A263: 210-216.

[9] Mutoh Y, Fair G H, Noble B, et al. The effect of residual stresses induced by shot peening on fatigue crack propagation in two high strength aluminum alloys [J]. Fatigue Fract. Eng. Struct, 1997, 10: 261-272.

DOI: 10.1111/j.1460-2695.1987.tb00205.x

[10] A. Eftekhari, J. E. Talia, P. K. Mazumdar. Influence of surface condition on the fatigue of an aluminum-lithium alloy (2090-T3) [J]. Mater. Sci. Eng, 1995, A199: L3-L6.

DOI: 10.1016/0921-5093(95)09805-4

[11] Sun, Z., Kang, X. Q. and Wang, X. H. Experimental system of cavitation erosion with water jet [J]. Mater. Design, 2005, 26, 59-63.

DOI: 10.1016/j.matdes.2004.04.003

[12] Zhenxing Zhao, Jianjing He . Hydraulics [M]. BeiJing, Tsinghua university press. 2005: 112. In Chinese.

[13] A. SAHAYA Grinspan, R. GNANAMOORTHY, Structure of oil cavitation jet and cavitation jet erosion of aluminum alloy, AA 6063 -T6, Structure of cavitation jet and cavitation jet erosion.

DOI: 10.1115/1.3129134

[14] Dular, M., Stoffel, B. & Sirok, B. Development of a cavitation erosion model. Wear, 2006, 261, 642-655.

DOI: 10.1016/j.wear.2006.01.020

[15] Bebedetti, M., Bortolamedi, T., Fontanari, V. & Frendo, F. Bending fatigue behavior of differently shot peened Al 6082-T5 alloy. Int. J. Fatigue, 2004, 26, 889-897.

DOI: 10.1016/j.ijfatigue.2003.12.003

[16] Zhi Sun, Li Jiang, Pengzhan, Ying. Failure Analysis-foundation and application, China Machine Press, 2010, 144-145. In Chinese.

[17] Richard W, Deformation and fracture mechanics of engineering materials, 2th Edi, 1983, John Wiley & Sons, Inc. 541.

[18] Y X Gao, J Z Yi, P D Lee, et al. A micro-cell of the effect of microstructure and on fatigue in cast aluminum alloys [J]. Acta Mater, 2004, 52: 5435-5449. In Chinese. *Corresponding author: Sui Yanwei, email: suiyanwei@cumt. edu. cn , Tel: [phone].

DOI: 10.1016/j.actamat.2004.07.035
