Errosion-Corrosion Critical Performance of Surface Nanocrystalline 20 Carbon Steel in Condensate Water

Abstract:

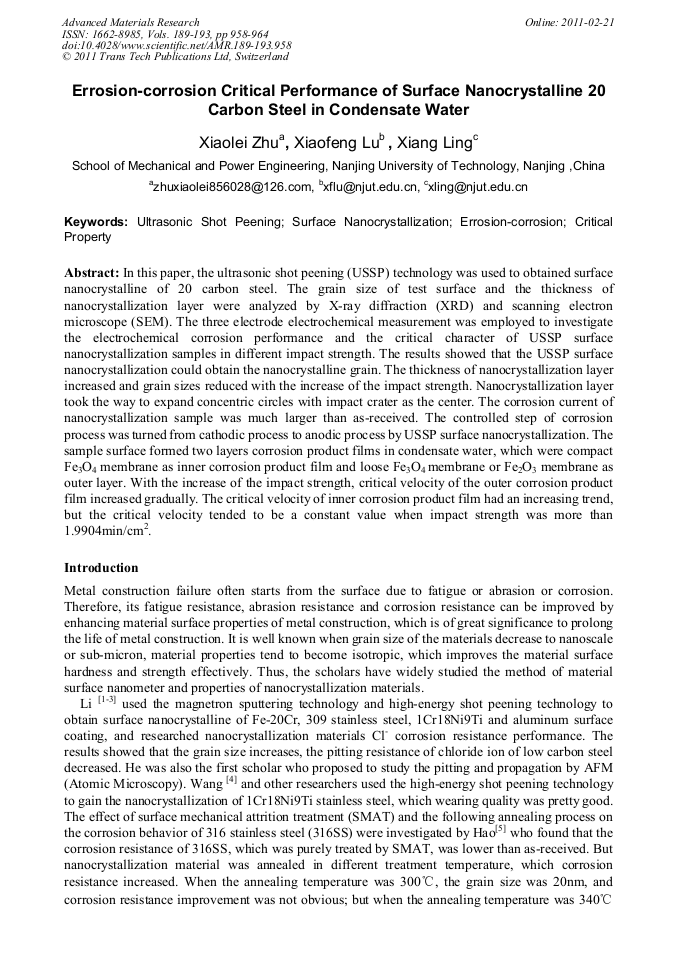

In this paper, the ultrasonic shot peening (USSP) technology was used to obtained surface nanocrystalline of 20 carbon steel. The grain size of test surface and the thickness of nanocrystallization layer were analyzed by X-ray diffraction (XRD) and scanning electron microscope (SEM). The three electrode electrochemical measurement was employed to investigate the electrochemical corrosion performance and the critical character of USSP surface nanocrystallization samples in different impact strength. The results showed that the USSP surface nanocrystallization could obtain the nanocrystalline grain. The thickness of nanocrystallization layer increased and grain sizes reduced with the increase of the impact strength. Nanocrystallization layer took the way to expand concentric circles with impact crater as the center. The corrosion current of nanocrystallization sample was much larger than as-received. The controlled step of corrosion process was turned from cathodic process to anodic process by USSP surface nanocrystallization. The sample surface formed two layers corrosion product films in condensate water, which were compact Fe₃O₄ membrane as inner corrosion product film and loose Fe₃O₄ membrane or Fe₂O₃ membrane as outer layer. With the increase of the impact strength, critical velocity of the outer corrosion product film increased gradually. The critical velocity of inner corrosion product film had an increasing trend, but the critical velocity tended to be a constant value when impact strength was more than 1.9904min/cm²

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 958-964
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.958
• Online since: February 2011
• Authors: Xiao Lei Zhu, Xiao Feng Lu, Xiang Ling
• Keywords: Critical Property, Errosion-Corrosion, Surface Nanocrystallisation, Ultrasonic Shot Peening

References

[1] Wei Ye, Ying Li, Fuhui Wang: Electrochemica Acta. Vol. 5(2006), p: 4426-4432.

[2] Bo Zhang, Ying Li, Fuhui Wang: Corrosion Science. Vol. 49(2007), p: 2071-(2082).

[3] Li Liu, Ying Li, Fuhui Wang: Electrochemica Acta. (2009).

[4] Tiansheng Wang, Jinku Yu, Bingfeng, Dong: Surface & Coatings Technology. Vol. 200(2006), p: 4777-4782.

[5] Yunwei Hao, Bo Deng, Cheng Zhang: Journal of iron and steel Research. Vol. 2(2009), p: 68-72.

[6] Guozhe Meng, Liyan Wei, Tao Zhang: Corrosion Science. Vol. 51(2009), p: 2151-2157.

[7] Feilong Sun, Guozhe Meng, Tao Zhang : Electrochemica Acta. Vol. 54(2009), p: 1578-1583.

[8] C Chen, D Y Li, C J Zhang: Wear. Vol. 267(2009), p: 345-349.

[9] C Chen, D Y Li, C J Zhang: Electrochemica Acta. Vol. 55(2009), p: 118-124.

[10] A Barbucci, G Farne, P Matteazzi, R Riccieri, G Cerisola: Corrosion Science. Vol. 3(1999), p: 463-475.

DOI: 10.1016/s0010-938x(98)00129-2

[11] A Vinogradov, T Mimaki, S Hashmoto, R Valiev: Scripta Materialia. Vol. 3(1999), p: 319-326.

[12] A Balyanov, J Kutnyakova, N A Amirkhanova, V V Stolyarov: Scripta Materialia. Vol. 3(2004), p: 225-229.

[13] Shunsuke UCHIDA, Masanori MAITOH, Yasushi UEHARA: Journal of Nuclear Science and Technology. Vol. 1(2009), p: 31-40.
