Corrosion Behavior Research of Fe3Al Intermetallic Compound in H2S/CO2 Environment

Bin Wang; Jiang Hu Bai; Dong Mei Zhou; Zhong Ying Jiang; Zhen Yang; Jun Ling Zhang

doi:10.4028/www.scientific.net/AMR.189-193.965

Paper Titles

Effect of Equal Channel Angular Pressing on Microstructure and Dislocation Strengthening of 3003Al Ingot
p.943

Design of the Range-Measurement System for Mobile Robots Based on ARM
p.949

Numerical Simulation of Impact Process of Coal and Gangue
p.953

Errosion-Corrosion Critical Performance of Surface Nanocrystalline 20 Carbon Steel in Condensate Water
p.958

Corrosion Behavior Research of Fe₃Al Intermetallic Compound in H₂S/CO₂ Environment
p.965

Study on the Structure of Grind-Hardened Layer and Parameter of Hardening Depth of 42CrMo Steel
p.969

Study on Rollers’ Angular Velocity Matching of Rolling Driven Equal Channel Angular Deformation Technology
p.974

Friction/Wear Behaviors of Magnetron Sputtered TiB₂-C Composite Films on Ti6Al4V Alloy Substrate
p.979

Research on Anti-Cracking Performance of Polypropylene Fiber Reinforced Cement Mortar
p.983

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 189-193Corrosion Behavior Research of Fe3Al Intermetallic...

Corrosion Behavior Research of Fe₃Al Intermetallic Compound in H₂S/CO₂ Environment

Abstract:

The corrosion behavior of Fe₃Al was studied by high temperature autoclaves in H₂S/CO₂ environment. By Stereo Microscope, we found that the corrosion film of Fe₃Al is thin and crack at 60°C, 4.0 Mpa,after 72h in autoclaves; Phase analysis by XRD showed that the main composition of corroded products is FeS; its corrosion are Ⅲ corrosion resistant type and corrosion rating of 4, mainly pitting, and average corrosion rate of 0.2106 mm/a.

You might also be interested in these eBooks

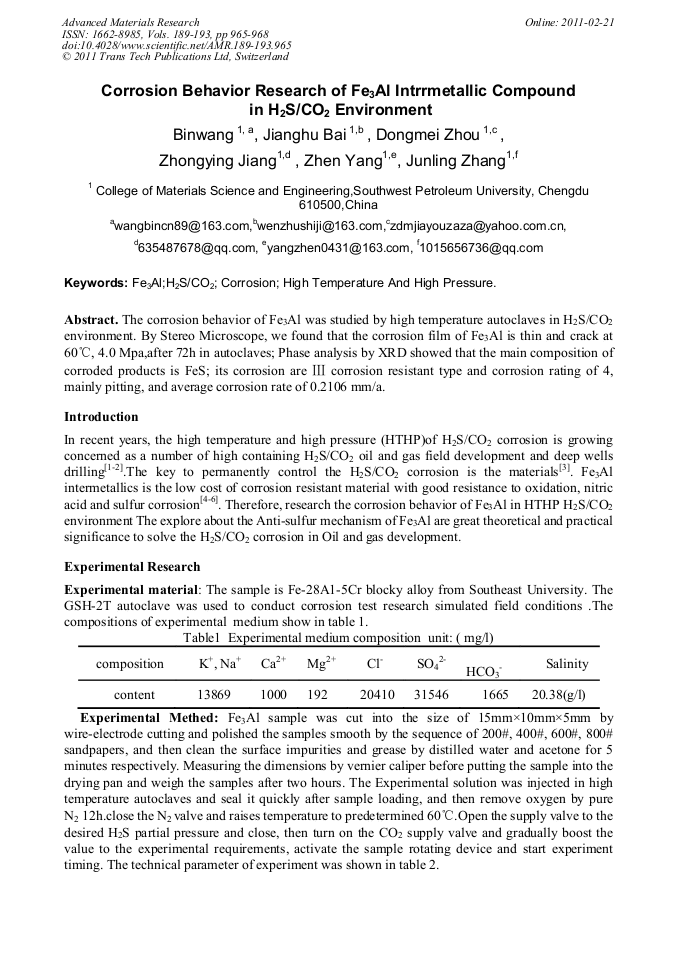

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

965-968

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.965

Citation:

Cite this paper

Online since:

February 2011

Authors:

Bin Wang, Jiang Hu Bai, Dong Mei Zhou, Zhong Ying Jiang, Zhen Yang, Jun Ling Zhang

Keywords:

Corrosion, Fe₃Al, H₂S/CO₂, High-Pressure, High-Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Hou Lizhong, Wu Junxia. Mechanism Analysis and Preventive Measures of Drill String Washout Caused by Corrosion. Petroleum Drilling echniques, 2006, 34(2): 26-28. (In Chinese).

Google Scholar

[2] Jinxing Dai, Jianyi Hu, Chengzao Jia, Yisheng Fang, Zhidao Sun, ect. Suggestions for scientifically and safely exploring and developing high H2S gas fields[J]. Petroleum Exploation and Development, 2004, 31(2): 1. (In Chinese).

Google Scholar

[3] Wei Liu , Xiaolin Pu , Xiaodong Bai: Haowei Zhao. Development of Hydrogen Sulfide Corrosion and Prevention[J]. Petroleum Drilling Techniques, 008, 36(1): 83-86. (In Chinese).

Google Scholar

[4] Guoliang Chen, li Junping. Order INTERMETALLIC STRUCTURAL MATERIALS. Beijing：Metallurgical Industry Publishing House, 1999, 1 (In Chinese).

Google Scholar

[5] N S Stoloff. Iron aluminides: present status and future prospects. Materials Sciencean dengineering, 1998, A258: 1.

Google Scholar

[6] Jing Li, Yansheng Yin, Hongtao Ma. Microstrueture and Tribology Properties of Hot Pressing Sintered Fe Al Intermetallic Material[J]. Lubrication Engineering, 2004, 6(166): 27-30. (In Chinese).

Google Scholar

[7] Ying Zhang, Chunfu Li, Bin Wang, research of THE Corrosion of Supercritical CO2 on steel material . Southwest Petroleum Institute journal. 2006, 28（2）：92－96.

Google Scholar

[8] S. Franigini,N. De Cristofaro. Analysis of the galvanostatic polarization method for determining reliable pitting potentials on stainless steels in crevice-free conditions. Corrosion Science 45, 2003, 2769-2786.

DOI: 10.1016/s0010-938x(03)00102-1

Google Scholar

[9] Moyor.E. H, Riggs O L, Mcglasson R L, Sudbury J D. Corrosion products of misteel in hydrogen suolfide environments[J]. Corrosion, 1958, 14(2): 109-115.

DOI: 10.5006/0010-9312-14.2.69

Google Scholar

[10] Helin Li. Hot Topics in Study and Application of Steel LinePipeforNatural gas . ransportation [J]. CHINA mechanical engineering, 2001: 12(3). (In Chinese).

Google Scholar

[11] ChengX. L, Ma.H. Y et al, Corrosion, Vol. 54, 1988, 369.

Google Scholar

[12] H.H. Huang W.T. Tsai J.T. Lee, Scripta metallurgica et meterialia, Vol. 31. No. 7. p.826(1994).

Google Scholar

[13] Das C. Corros. Sci. Vol. 27, No. 12, 1987, p.1287.

Google Scholar

[14] Chaoliu Zeng, Wen. Wang electrochemical impedance spectroscopy of The hot corrosion in Molten Salt [j] . metal college journal, 1999, 35(7): 749－751 (In Chinese).

Google Scholar

[15] Zhou Songxuan, Zhao Jingsheng. Mossbauer study of the corrosion of iron in salt water [J]. Huazhong University college journal, 1993, 21(2): 155(In Chinese).

Google Scholar

[16] Bin Wang, Xiaohu Zhou, Chunfu. li, Drilling and Completion Casing in HTHP H2S/CO2 Environment . tubing corrosion research. Natural Gas Industry. 2007, 27(2): 67－69; (In Chinese).

Google Scholar
