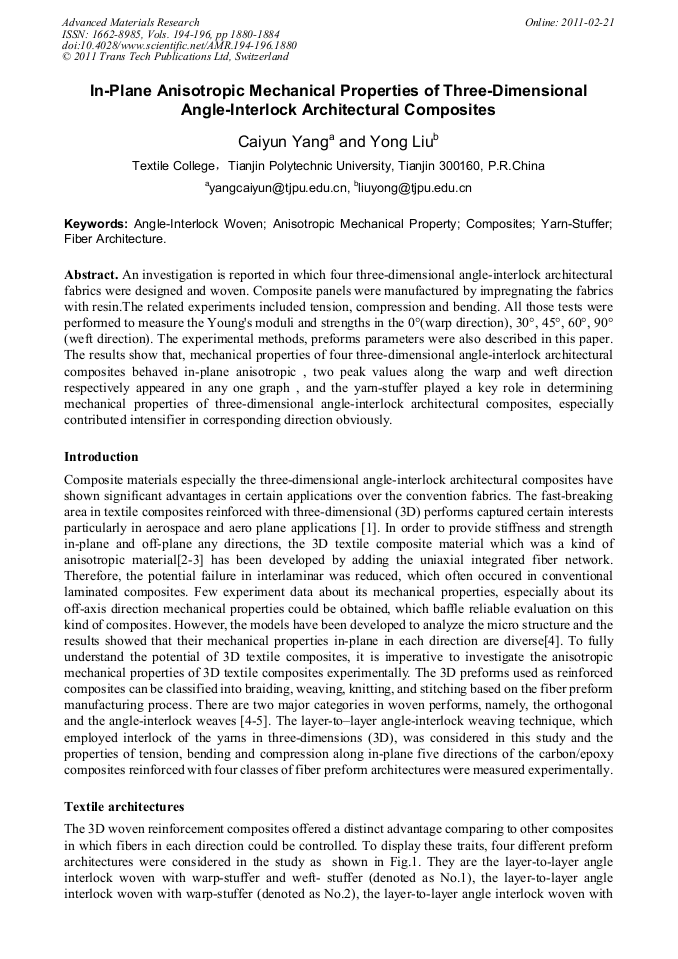

In-Plane Anisotropic Mechanical Properties of Three-Dimensional Angle-Interlock Architectural Composites

Abstract:

An investigation is reported in which four three-dimensional angle-interlock architectural fabrics were designed and woven. Composite panels were manufactured by impregnating the fabrics with resin.The related experiments included tension, compression and bending. All those tests were performed to measure the Young's moduli and strengths in the 0°(warp direction), 30°, 45°, 60°, 90° (weft direction). The experimental methods, preforms parameters were also described in this paper. The results show that, mechanical properties of four three-dimensional angle-interlock architectural composites behaved in-plane anisotropic , two peak values along the warp and weft direction respectively appeared in any one graph , and the yarn-stuffer played a key role in determining mechanical properties of three-dimensional angle-interlock architectural composites, especially contributed intensifier in corresponding direction obviously.

• Periodical: Advanced Materials Research (Volumes 194-196)
• Pages: 1880-1884
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.194-196.1880
• Online since: February 2011
• Authors: Cai Yun Yang, Yong Liu
• Keywords: Angle-Interlock Woven, Anisotropic Mechanical Property, Composite, Fiber Architecture, Yarn-Stuffer

References

[1] A.P. Mouritz, M.K. Bannister, P.J. Falzon: Composites Part A: Applied Science and Manufacturing, Vol. 11(1999), pp.1445-1461.

DOI: 10.1016/s1359-835x(99)00034-2

[2] K. Pochiraju, T. W. Chou: Polymer Composites, Vol. 20(1999), pp.565-580.

[3] K. Pochiraju, T. W. Chou: Polymer Composites, Vol. 20(1999), pp.733-747.

[4] O. Siron: Composites Science and Technology. Vol. 59(1999), pp.1-12.

[5] T. W. Chow, F. K. Ko : Textile Structural Composites ( Elsevier Science Publishers B. V, U.S. A, 1989).

[6] Cai-yun Yang, Jia-lu Li, in Chiese: Journal of Donghua University，Vol. 31(2005), pp.53-58.
