Preparation of Coral-Like α-Fe2O3 Nanostructures and Magnetic Properties

Hong Wang; Min Gong; Jing Yu Zhang

doi:10.4028/www.scientific.net/AMR.194-196.625

Paper Titles

Effect of Additive on Microstructure and Property of Bulk Nanocrystalline Co-Ni Alloys Prepared by JED
p.606

Coagulation Method for Preparing Antimony-Doped Tin Oxide (ATO)/Poly(methyl Methacrylate) Nanocomposites and their Electrical Conductivity and Thermal Stability
p.610

Preparation and Photoluminescence Properties of Tadpole-Like Amorphous Silica Nanowires
p.614

Optical Studies on Multiwalled Carbon Nanotubes via Modified Wolff-Kishner Reduction Process
p.618

Preparation of Coral-Like α-Fe₂O₃ Nanostructures and Magnetic Properties
p.625

Effects of Solution Parameters on Morphology and Diameter of Electrospun Polystyrene Nanofibers
p.629

One-Step Wet Synthesis and Characterisation of Hydrophobic Magnesium Hydroxide
p.633

Facile Fabrication of Single Crystalline Fe₃O₄ Nanorods and its Magnetic Properties
p.638

Preparation of Composite Conductive Microspheres Used in Anisotropic Conductive Adhesive Films
p.643

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 194-196Preparation of Coral-Like α-Fe2O3 Nanostructures...

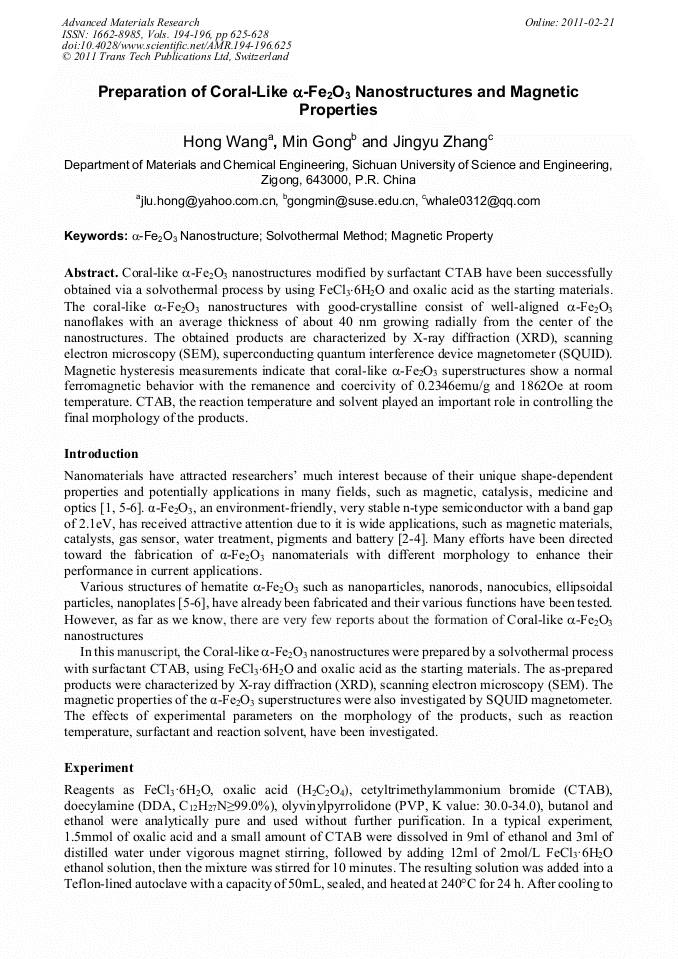

Preparation of Coral-Like α-Fe₂O₃ Nanostructures and Magnetic Properties

Abstract:

Coral-like α-Fe₂O₃ nanostructures modified by surfactant CTAB have been successfully obtained via a solvothermal process by using FeCl₃ 6H₂O and oxalic acid as the starting materials. The coral-like α-Fe₂O₃ nanostructures with good-crystalline consist of well-aligned α-Fe₂O₃ nanoflakes with an average thickness of about 40 nm growing radially from the center of the nanostructures. The obtained products are characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), superconducting quantum interference device magnetometer (SQUID). Magnetic hysteresis measurements indicate that coral-like α-Fe₂O₃ superstructures show a normal ferromagnetic behavior with the remanence and coercivity of 0.2346emu/g and 1862Oe at room temperature. CTAB, the reaction temperature and solvent played an important role in controlling the final morphology of the products.
