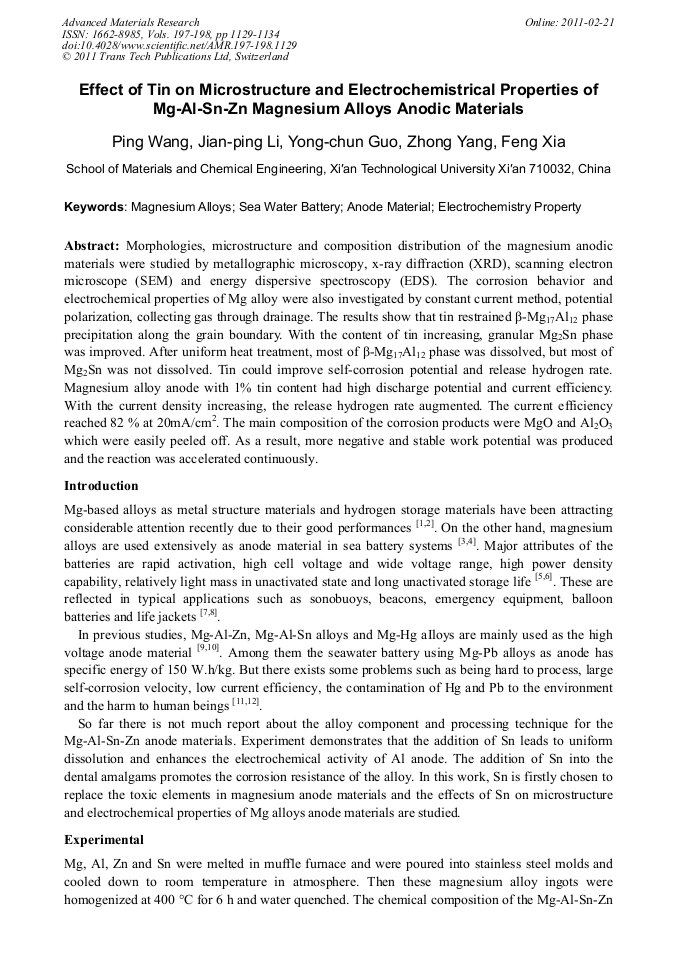

Effect of Tin on Microstructure and Electrochemistrical Properties of Mg-Al-Sn-Zn Magnesium Alloys Anodic Materials

Abstract:

Morphologies, microstructure and composition distribution of the magnesium anodic materials were studied by metallographic microscopy, x-ray diffraction (XRD), scanning electron microscope (SEM) and energy dispersive spectroscopy (EDS). The corrosion behavior and electrochemical properties of Mg alloy were also investigated by constant current method, potential polarization, collecting gas through drainage. The results show that tin restrained β-Mg₁₇Al₁₂ phase precipitation along the grain boundary. With the content of tin increasing, granular Mg₂Sn phase was improved. After uniform heat treatment, most of β-Mg₁₇Al₁₂ phase was dissolved, but most of Mg₂Sn was not dissolved. Tin could improve self-corrosion potential and release hydrogen rate. Magnesium alloy anode with 1% tin content had high discharge potential and current efficiency. With the current density increasing, the release hydrogen rate augmented. The current efficiency reached 82 % at 20mA/cm². The main composition of the corrosion products were MgO and Al²O³ which were easily peeled off. As a result, more negative and stable work potential was produced and the reaction was accelerated continuously.

• Periodical: Advanced Materials Research (Volumes 197-198)
• Pages: 1129-1134
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.197-198.1129
• Online since: February 2011
• Authors: Ping Wang, Jian Ping Li, Yong Chun Guo, Zhong Yang, Feng Xia
• Keywords: Anode Material, Electrochemistry Property, Magnesium Alloy, Sea Water Battery

References

[1] Y Feng, R C Wang, C Q Peng, et al. Aging behaviour and electrochemical properties in Mg–4. 8Hg–8Ga (wt. %) alloy. Corrosion Science, Vol. 52 (2010), p.3474.

DOI: 10.1016/j.corsci.2010.06.024

[2] N G Wang, R C Wang, C Q Peng, et al. Influence of aluminium and lead on activation of magnesium as anode. Trans. Nonferrous Met Soc, Vol. 20 (2010), p.1403.

[3] Lancry Eli, Levi E, Gofer Y, et al. The effect of milling on the performance of a Mo6S8 Chevrel phase as a cathode material for rechargeable Mg batteries. Journal of Solid State Chemistry, Vol. 9 (2005), p.259.

DOI: 10.1007/s10008-004-0633-7

[4] F G Meng, J Wang, M H Rong, et al. Thermodynamic assessment of Mg-Ga binary system. Trans. Nonferrous Met Soc, Vol. 20 (2010), p.450.

[5] L Yu, X G Zhang. Electrochemical insertion of magnesium ions into V2O5 from aprotic electrolytes with varied water content. Journal of Colloid and Interface Science, Vol. 278 (2004), p.160.

DOI: 10.1016/j.jcis.2004.05.028

[6] M.C. Lin, C.Y. Tsai, J.Y. Uan. Electrochemical behaviour and corrosion performance of Mg–Li–Al–Zn anodes with high Al composition. Corrosion Science, Vol. 51 (2009), p.2463.

DOI: 10.1016/j.corsci.2009.06.036

[7] A. Zazoua , N. Azzouz. An investigation on the use of indium to increase dissolution of AlZn anodes in sea water. Materials and Design, Vol. 29 (2008), p.806.

DOI: 10.1016/j.matdes.2007.01.010

[8] Y Feng, R C Wang, K Yu, et al. Influence of Ga and Hg on microstructure and electrochemical corrosion behavior of Mg alloy anode materials. Trans. Nonferrous Met Soc, Vol. 17 (2007), p.1363.

DOI: 10.1016/s1003-6326(07)60278-7

[9] Yoshimoto N, Yakushiji S, Ishikawa M. Rechargeable magnesium batteries with polymeric gel electrolytes containing magnesium salts. Electrochemical Acta, Vol. 48 (2003), p.2317.

DOI: 10.1016/s0013-4686(03)00221-4

[10] Firass, Kibl, Liw L. Water-activated disposable and long shelf-life microbatteries. Sensors and Actuators A, Vol. 111 (2004), p.79.

DOI: 10.1016/j.sna.2003.10.020

[11] Leandro C. P, Wislei R. O, Amauri G. Microstructure and electrochemical corrosion behavior of a Pb–1 wt%Sn alloy for lead-acid battery components. Journal of Power Sources， Vol. 192 (2009), p.724.

DOI: 10.1016/j.jpowsour.2009.02.081

[12] Y Feng, R C Wang, C Q Peng, et al. Influence of Mg21Ga5Hg3 compound on electrochemical properties of Mg-5%Hg-5%Ga alloy. Trans. Nonferrous Met Soc, Vol. 19 (2009), p.154.

DOI: 10.1016/s1003-6326(08)60244-7
