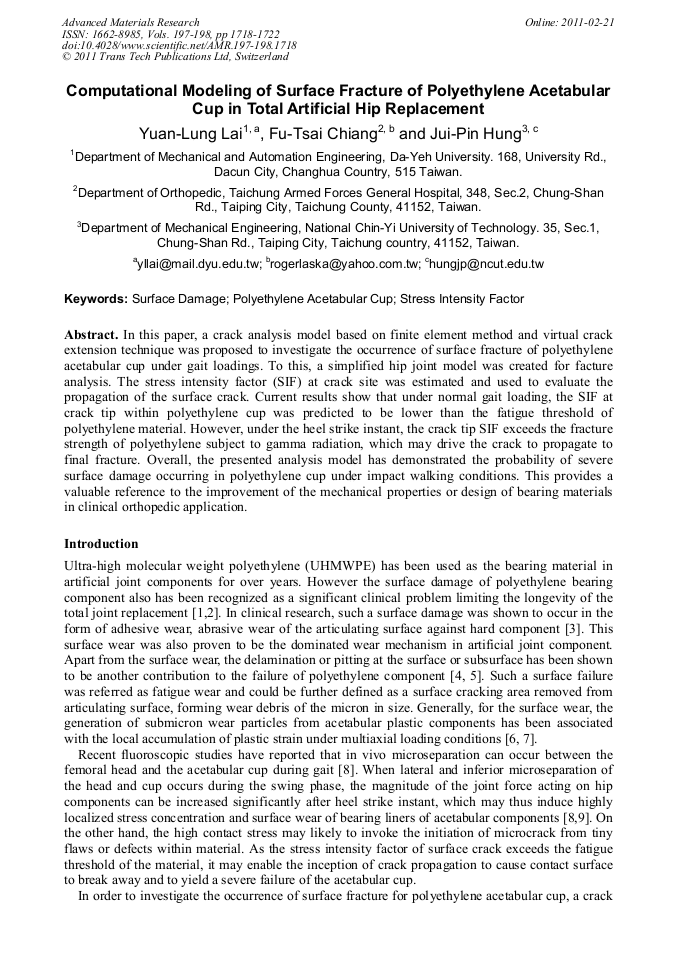

Computational Modeling of Surface Fracture of Polyethylene Acetabular Cup in Total Artificial Hip Replacement

Abstract:

In this paper, a crack analysis model based on finite element method and virtual crack extension technique was proposed to investigate the occurrence of surface fracture of polyethylene acetabular cup under gait loadings. To this, a simplified hip joint model was created for facture analysis. The stress intensity factor (SIF) at crack site was estimated and used to evaluate the propagation of the surface crack. Current results show that under normal gait loading, the SIF at crack tip within polyethylene cup was predicted to be lower than the fatigue threshold of polyethylene material. However, under the heel strike instant, the crack tip SIF exceeds the fracture strength of polyethylene subject to gamma radiation, which may drive the crack to propagate to final fracture. Overall, the presented analysis model has demonstrated the probability of severe surface damage occurring in polyethylene cup under impact walking conditions. This provides a valuable reference to the improvement of the mechanical properties or design of bearing materials in clinical orthopedic application.

• Periodical: Advanced Materials Research (Volumes 197-198)
• Pages: 1718-1722
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.197-198.1718
• Online since: February 2011
• Authors: Yuan Lung Lai, Fu Tsai Chiang, Jui Pin Hung
• Keywords: Polyethylene Acetabular Cup, Stress Intensity Factor (SIF), Surface Damage

References

[1] W.C. Dannenmair, D.W. Haynes, C.L. Nelson: Granulomatous reaction and cyclic bony destruction associated with higher wear rates in a total knee prostheses. Clinical Orthopedic Related Research 1985; 198: 224-230.

DOI: 10.1097/00003086-198509000-00033

[2] J.M. Mirra, R.A. Marder, H.C. Amstutz: The pathology of failed total joint arthoplasty. Clinical Orthopedic Related Research 1982; 170: 175-183.

DOI: 10.1097/00003086-198210000-00023

[3] K.E. Elbert, T.M. Wright, C.M. Rimnac, et al. Fatigue crack propagation behavior of ultra high molecular weight polyethylene under mixed mode conditions. J Biomedical Material Research 1994; 28: 181-187.

DOI: 10.1002/jbm.820280207

[4] J.P. Collier, D.K. Sperling, J.H. Currier, et al. Impact of gamma sterilization on clinical performance of polyethylene in the knee. Journal of Arthroplasty. 1996; 11(4): 377-389.

DOI: 10.1016/s0883-5403(96)80026-x

[5] G.W. Blunn, A.B. Joshi, R.J. Minns, et al. Wear in retrieved condylar knee arthroplasties. Journal of Arthroplasty. 1997; 12: 281-290.

DOI: 10.1016/s0883-5403(97)90024-3

[6] A. Wang, C. Stark, J.H. Dumbleton: Role of cyclic plastic deformation in the wear of UHMWPE acetabular cups. J Biomedical Material Research 1955; 29: 619-626.

DOI: 10.1002/jbm.820290509

[7] M. Wronga, M.B. Mayor, J.P. Collier, R.E. Jensen: The correlation between fusion defect and damage in tibal polyethylene bearings. Clinical Orthopedic Related Research 1994; 299: 92-103.

DOI: 10.1097/00003086-199402000-00013

[8] D. A. Dennis, R. D. Komistek, E. J. Northcut, et al. In vivo determination of hip joint separation and the forces generated due to impact loading conditions. J Biomechanics 2001; 34: 623-629.

DOI: 10.1016/s0021-9290(00)00239-6

[9] J. E. Nevelos, E. Ingham, C. Doyle, et al. Microseparation of the centers of alumina–alumina arti. cial hip joints during simulator testing produces clinically relevant wear and patterns. J. Arthroplasty. 2000; 15: 793-795.

DOI: 10.1054/arth.2000.8100

[10] G.R. Irwin: Analysis of stresses and strains nera the end of a crack traversing a plate. J Applied Mechanics 1957; 24: 361-364.

DOI: 10.1115/1.4011547

[11] S. Glodez, Z. Ren: Modeling of crack growth under cyclic contact loading. Theoretical and Applied Fracture Mechanics 1998; 30: 159-173.

DOI: 10.1016/s0167-8442(98)00053-6

[12] L. Pruitt, L. Bailey: Factors affecting near-threshold fatigue crack propagation behavior of orthopedic grade ultra high molecular eight polyethylene. Polymer 1998; 39(8-9): 1545-1553.

DOI: 10.1016/s0032-3861(97)00448-5

[13] V. Saikko: A Multidirectional motion pin-on-disk wear test method for prosthetic joint materials. J Biomedical Material Research 1998; 41(1): 58-64.

DOI: 10.1002/(sici)1097-4636(199807)41:1<58::aid-jbm7>3.0.co;2-p

[14] H. Oonishi: Long term clinical results of THR: clinical results of THR of an alumina head with a cross-linked UHMWPE cup. J. Orthopaedic Surgery and Traumatology 1995: 1255-1263.

[15] D.A. Baker, A. Bellare, L. Pruitt: The effect of degree of crosslinking on the fatigue crack initiation and propagation resistance of orthopedic-grade polyethylene. J Biomedical Material Research 2003; 66A: 146-154.

DOI: 10.1002/jbm.a.10606

[16] O. Ebru, S. M. Arnaz, K.M. Orhun: Mechanisms of decrease in fatigue crack propagation resistance in irradiated and melted UHMWPE. Biomaterials 2006; 27: 9 17-925.

DOI: 10.1016/j.biomaterials.2005.06.025
