Numerical Modeling and Simulation Analysis of Temperature Field of Disc Brake on Trains

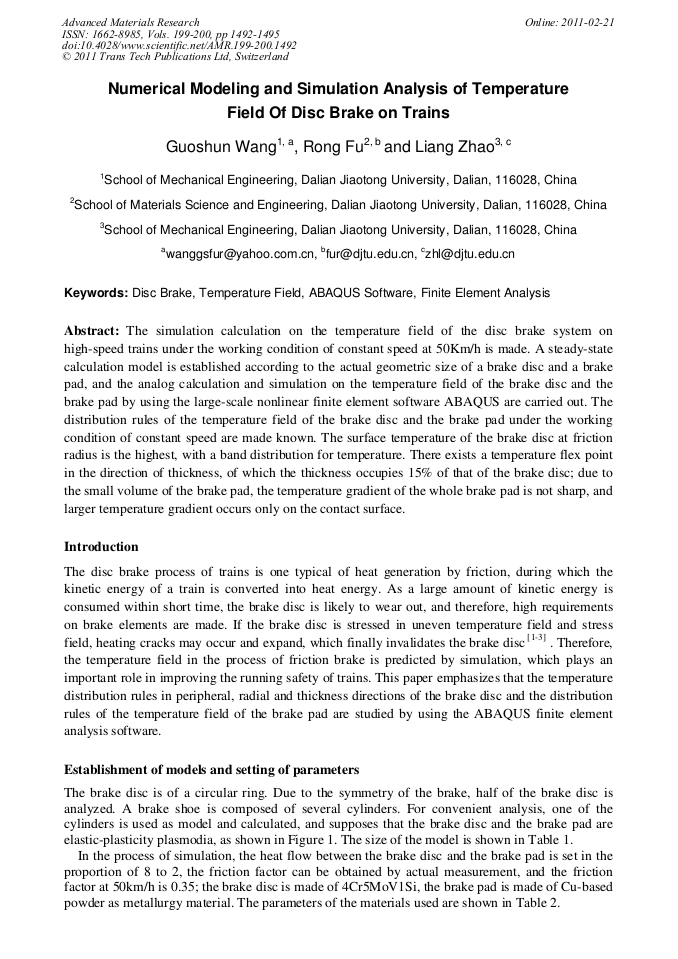

Abstract:

The simulation calculation on the temperature field of the disc brake system on high-speed trains under the working condition of constant speed at 50Km/h is made. A steady-state calculation model is established according to the actual geometric size of a brake disc and a brake pad, and the analog calculation and simulation on the temperature field of the brake disc and the brake pad by using the large-scale nonlinear finite element software ABAQUS are carried out. The distribution rules of the temperature field of the brake disc and the brake pad under the working condition of constant speed are made known. The surface temperature of the brake disc at friction radius is the highest, with a band distribution for temperature. There exists a temperature flex point in the direction of thickness, of which the thickness occupies 15% of that of the brake disc; due to the small volume of the brake pad, the temperature gradient of the whole brake pad is not sharp, and larger temperature gradient occurs only on the contact surface.

• Periodical: Advanced Materials Research (Volumes 199-200)
• Pages: 1492-1495
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.199-200.1492
• Online since: February 2011
• Authors: Guo Shun Wang, Rong Fu, Liang Zhao
• Keywords: ABAQUS Software, Disc Brake, Finite Element Analysis (FEA), Temperature Field

References

[1] Qun Ding, Jilong Xie Journal of the China Railway Society 2002, 21(6): 35-38(In Chinese).

[2] Junyi He, Xiangdu Lin Numerical methods applied in nonlinear structure engineer Beijing: National Defence Industry Press 1994: 68-72(In Chinese).

[3] Fanhua Zhou Calculation of Disc Brake Temperature in 15-Cycle Braking Automotive Engineering 2001, 23(6): 411-418(In Chinese).
