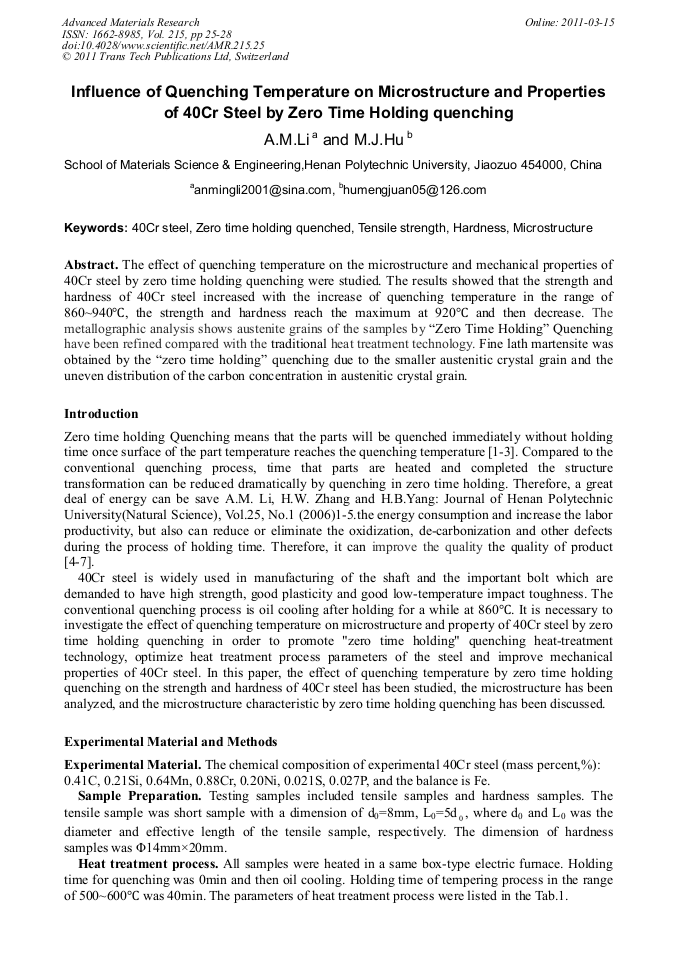

Influence of Quenching Temperature on Microstructure and Properties of 40Cr Steel by Zero Time Holding Quenching

Abstract:

The effect of quenching temperature on the microstructure and mechanical properties of 40Cr steel by zero time holding quenching were studied. The results showed that the strength and hardness of 40Cr steel increased with the increase of quenching temperature in the range of 860~940°C, the strength and hardness reach the maximum at 920°C and then decrease. The metallographic analysis shows austenite grains of the samples by “Zero Time Holding” Quenching have been refined compared with the traditional heat treatment technology. Fine lath martensite was obtained by the “zero time holding” quenching due to the smaller austenitic crystal grain and the uneven distribution of the carbon concentration in austenitic crystal grain.

• Periodical: Advanced Materials Research (Volume 215)
• Pages: 25-28
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.215.25
• Online since: March 2011
• Authors: An Ming Li, Meng Juan Hu
• Keywords: 40Cr Steel, Hardness, Microstructure, Tensile Strength, Zero Time Holding Quenched

References

[1] A.M. Li: Journal of Coal Science & Engineering, Vol. 32, No. 4(2007) 445-448.

[2] X.Q. Wang: Joumal of Sichuan Institute of Technology, Vol. 13, No. 4 (1994)23-29.

[3] F.S. Meng. Journal of Fuxin Mining Institute, Vol. 14, No. 4 (1995) 54-58.

[4] ASM. Report of the Heat Treating Technology Roadmap Wordshop [R](1997).

[5] X.J. Wang: Master Thesis, Henan Polytechnic University (2008).

[6] D.H. Xu: Joumal of Automobile Technoloby Materital, No. 6, (1994)10-12.

[7] Y.H. Chen: Journal of Anqing Teachers College (NaturalScience), Vol. 6, No. 2 (2000)84-85.

[8] W.C. Bai: Joumal of Liaoning Institute of Technology on Social Science, Vol. 15, No. 1 (1995) 1-4.

[9] F.Y. Zhu. Journal of Shenyang University of Technology, Vol. 25, No. 3 (2003)203-205.

[10] A.M. Li, H.W. Zhang and H.B. Yang: Journal of Henan Polytechnic University (Natural Science), Vol. 25, No. 1 (2006)1-5.
