Study on the Salt Spray Corrosion and Erosion Behavior of TC4 Titanium Alloy

Shu Ai Shao; Hui Zhi Xi; Yun Peng Chang

doi:10.4028/www.scientific.net/AMR.233-235.2409

Paper Titles

Effect of the Content of Air Bubble in Oil on Pressure of Oil in Working Cavity of High Pressure Vane Pump
p.2391

Effect of Fe₂O₃ on the Sintering Property of MgO-CaO Refractory
p.2395

A Study on the Process of ZnO Thin Films Prepared by Ion Beam Sputtering
p.2399

Synthesis of Calcium Oxide Stabilized Cubic Zirconia Powders by Electrochemical Method
p.2403

Study on the Salt Spray Corrosion and Erosion Behavior of TC4 Titanium Alloy
p.2409

Crystallization Behavior and Melting Characteristics of Isotactic Polypropylene Nucleated by a Novel Nucleating Agent
p.2413

Study on the Electrolyte Material BaCe_1-xY_xO_3-δ’s Raman Spectra and Electrical Properties for Intermediate-Temperature Solid Oxide Fuel Cells
p.2419

A Method Study of Recognizing the Defect Type for the Continuous Casting Slab by Pulsed Eddy Current
p.2424

The Steady-State Model of Heating Process in Horizontal Continuous Annealing Furnace
p.2428

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 233-235Study on the Salt Spray Corrosion and Erosion...

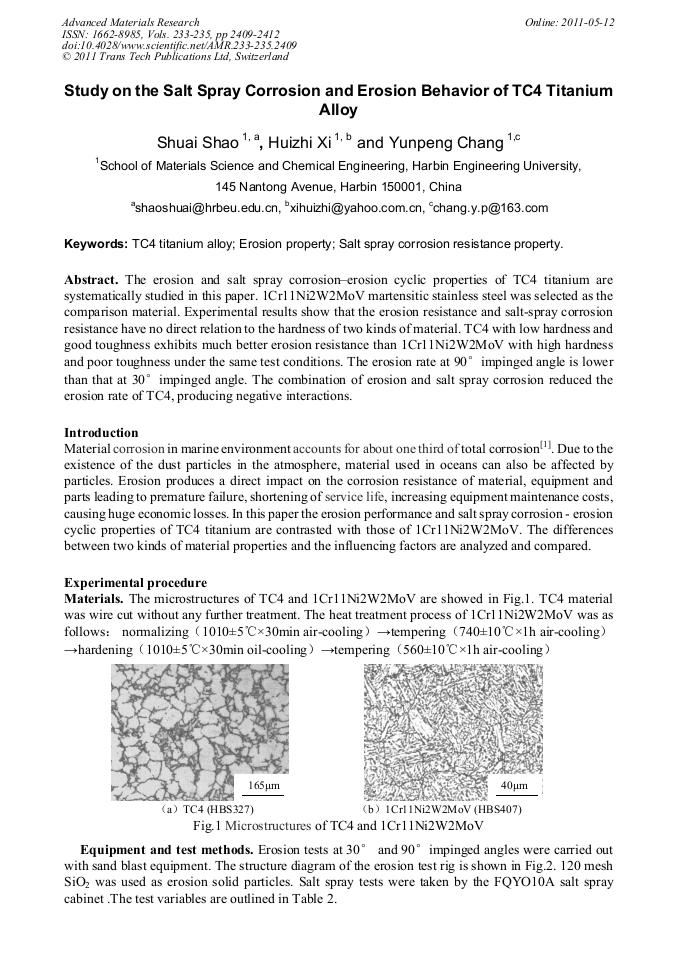

Study on the Salt Spray Corrosion and Erosion Behavior of TC4 Titanium Alloy

Abstract:

The erosion and salt spray corrosion–erosion cyclic properties of TC4 titanium are systematically studied in this paper. 1Cr11Ni2W2MoV martensitic stainless steel was selected as the comparison material. Experimental results show that the erosion resistance and salt-spray corrosion resistance have no direct relation to the hardness of two kinds of material. TC4 with low hardness and good toughness exhibits much better erosion resistance than 1Cr11Ni2W2MoV with high hardness and poor toughness under the same test conditions. The erosion rate at 90°impinged angle is lower than that at 30°impinged angle. The combination of erosion and salt spray corrosion reduced the erosion rate of TC4, producing negative interactions.
