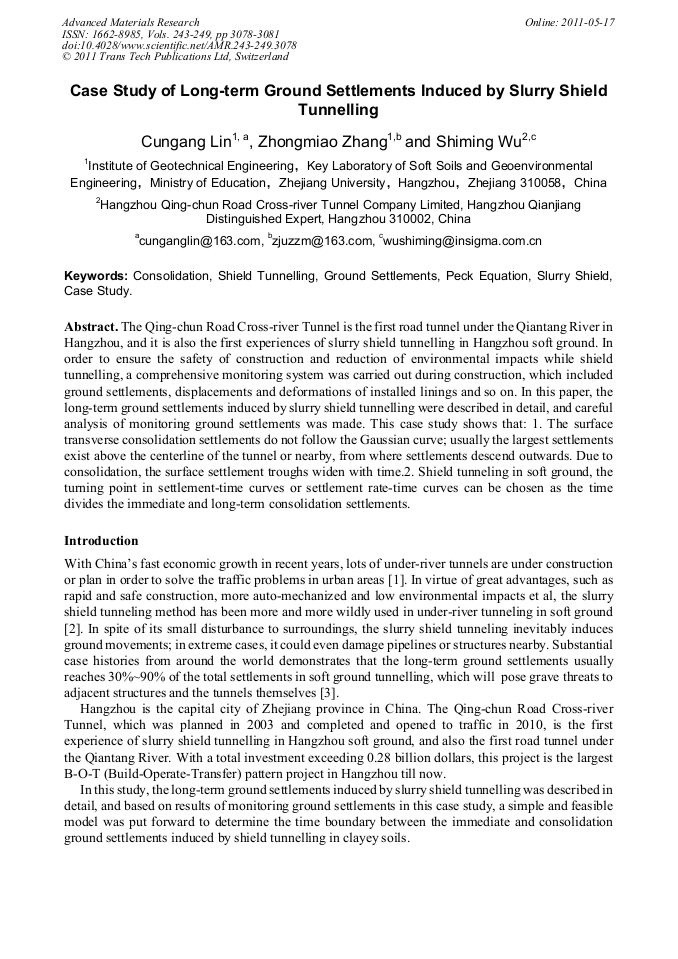

Case Study of Long-Term Ground Settlements Induced by Slurry Shield Tunnelling

Abstract:

The Qing-chun Road Cross-river Tunnel is the first road tunnel under the Qiantang River in Hangzhou, and it is also the first experiences of slurry shield tunnelling in Hangzhou soft ground. In order to ensure the safety of construction and reduction of environmental impacts while shield tunnelling, a comprehensive monitoring system was carried out during construction, which included ground settlements, displacements and deformations of installed linings and so on. In this paper, the long-term ground settlements induced by slurry shield tunnelling were described in detail, and careful analysis of monitoring ground settlements was made. This case study shows that: 1. The surface transverse consolidation settlements do not follow the Gaussian curve; usually the largest settlements exist above the centerline of the tunnel or nearby, from where settlements descend outwards. Due to consolidation, the surface settlement troughs widen with time.2. Shield tunneling in soft ground, the turning point in settlement-time curves or settlement rate-time curves can be chosen as the time divides the immediate and long-term consolidation settlements.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 3078-3081
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.3078
• Online since: May 2011
• Authors: Cun Gang Lin, Zhong Miao Zhang, Shi Ming Wu
• Keywords: Case Study, Consolidation, Ground Settlement, Peck Equation, Shield Tunnelling, Slurry Shield

References

[1] YANG Hong-yu, ZHOU Jian-min. On the Development of Under-river Tunnel in China [J].Underground Space, 2000, 20(3): 209-213. (in Chinese)

[2] Vittorio Guglielmetti, Piergiorgio Grasso, Ashraf Mahtab et al. Mechanized tunneling in urban areas-design methodology and construction control [M]. Taylor & Francis Group, London, UK, 2008:125-152.

DOI: 10.1201/9780203938515

[3] J.N. Shirlaw. Observed and calculated pore pressure and deformations induced by an earth balance shield: discussion[J].Canadian Geotechnical Journal, 1995, 32(1):181-189.

DOI: 10.1139/t95-017

[4] R.N. Hang, C.B. Fan, G.R. Yang. Consolidation settlements due to tunneling[C]//Proceedings of South East Asian Symposium on Tunnelling and Underground Space Develpoment, January 18-19,1995,Bangkok,Thailand:79-86.

[5] Tadashi Hashimoto, Junichi Nagaya, Takahiro Konda. Prediction of ground deformation due to shield excavation in clayey soils [J]. Soils and foundations,1999,39(3):53-61.

DOI: 10.3208/sandf.39.3_53

[6] R.N. Hang, D.H.Ju, M.S. Tsai et al. Soft ground tunneling in Taiwan[C]//Proceedings of U.S. Taiwan Geotechnical Engineering Collaboration Workshop, January 9-11, 1995, Taipei, Taiwan: 13-26.

[7] R.N. Hang, D.J.Wu, C.J. Lee. Pore pressure response to shield tunneling in soft clay[C]//Proceedings of South East Asian Symposium on Tunnelling and Underground Space Develpoment, January 18-19, 1995, Bangkok, Thailand: 33-40.

[8] S.M. Liao, L.Q. Gao and H.H. Zhu. Soft ground movement under small disturbance of shield driving[C]// Proceedings of Sessions of GeoShanghai 2006, Soil and Rock Behavior and Modeling (GSP 150) 194, 7 (2006): 62-69.

DOI: 10.1061/40862(194)7

[9] Peck R B. Deep excavations and tunneling in soft ground[C]//State of the Art Report. Proceedings of 7th International Conference on Soil Mechanics and Foundation Engineering. Mexico City: [s.n.], 1969: 225-290.
