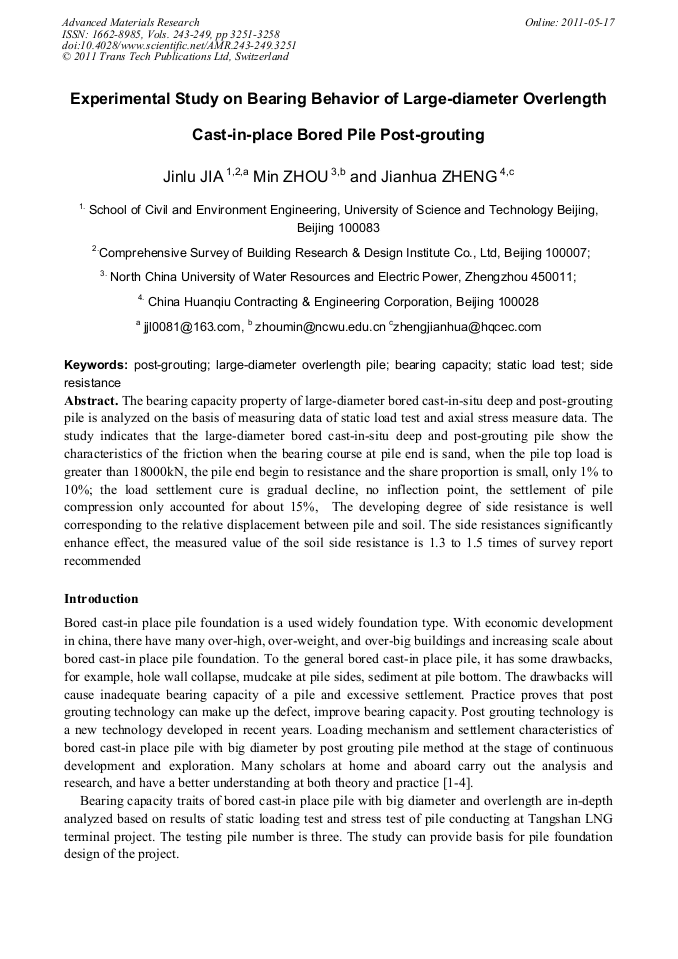

Experimental Study on Bearing Behavior of Large-Diameter Overlength Cast-in-Place Bored Pile Post-Grouting

Abstract:

The bearing capacity property of large-diameter bored cast-in-situ deep and post-grouting pile is analyzed on the basis of measuring data of static load test and axial stress measure data. The study indicates that the large-diameter bored cast-in-situ deep and post-grouting pile show the characteristics of the friction when the bearing course at pile end is sand, when the pile top load is greater than 18000kN, the pile end begin to resistance and the share proportion is small, only 1% to 10%; the load settlement cure is gradual decline, no inflection point, the settlement of pile compression only accounted for about 15%, The developing degree of side resistance is well corresponding to the relative displacement between pile and soil. The side resistances significantly enhance effect, the measured value of the soil side resistance is 1.3 to 1.5 times of survey report recommended.

You might also be interested in these eBooks

Advances in Civil Engineering and Architecture

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 243-249)

Pages:

3251-3258

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.243-249.3251

Citation:

Cite this paper

Online since:

May 2011

Authors:

Jin Lu Jia, Min Zhou, Jian Hua Zheng

Keywords:

Bearing Capacity, Large Displacement/Rotation, Post-Grouting, Side Resistance, Static Load Test

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Xu Xinyue. Test on bearing capacity of Large Diameter Cast-in Place Piles in Soft soil foundation in Wenzhou. China Academic Journal Electronic Pbulishing House, 2004, 34(12): 8-10 (In Chinese).

Google Scholar

[2] Wang Tao, Ma Ye. Study on over-length drilled pile bearing behavior under vertical load. Rock and soil mechanics, 2005, 26(7): 1053-1057 (In chinese).

Google Scholar

[3] Huang Shenggen, Gong Weiming. Study on bearing behavior of super long-large diameter piles after grouting. Chinese Journal of Geotechnical Engineering, 2006,28(1): 113-117 (In Chinese).

Google Scholar

[4] Deng Yousheng, Gong Weiming, Li Zhouqiu. Research on load transferring characteristics of super-long and large diameter single pile. Highway, 2007, (4): 73-76 (In Chinese).

Google Scholar
