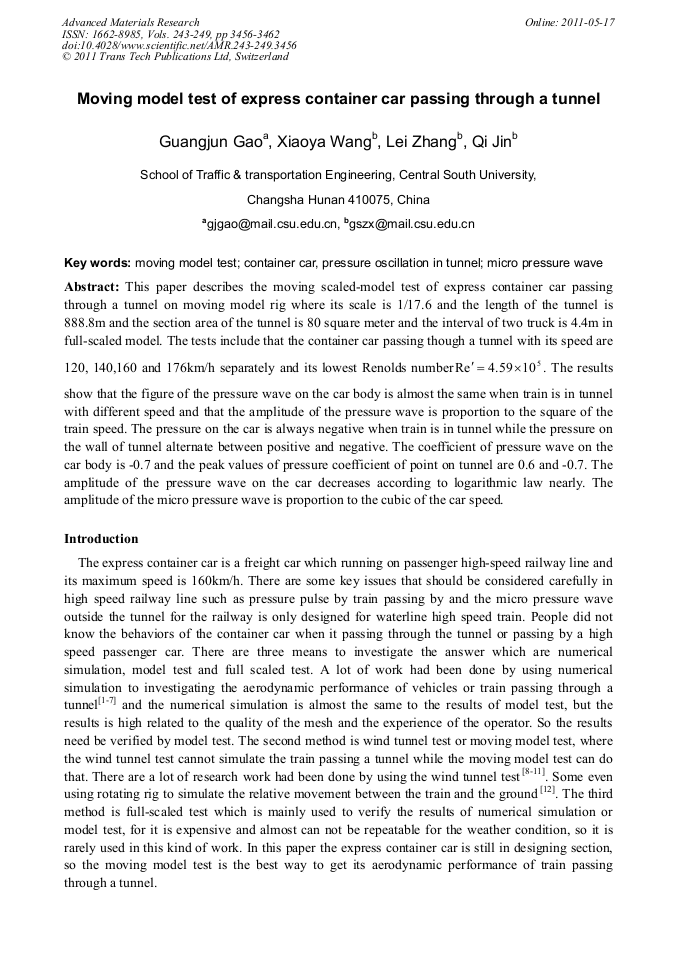

Moving Model Test of Express Container Car Passing through a Tunnel

Abstract:

This paper describes the moving scaled-model test of express container car passing through a tunnel on moving model rig where its scale is 1/17.6 and the length of the tunnel is 888.8m and the section area of the tunnel is 80 square meter and the interval of two truck is 4.4m in full-scaled model. The tests include that the container car passing though a tunnel with its speed are 120, 140,160 and 176km/h separately and its lowest Renolds number. The results show that the figure of the pressure wave on the car body is almost the same when train is in tunnel with different speed and that the amplitude of the pressure wave is proportion to the square of the train speed. The pressure on the car is always negative when train is in tunnel while the pressure on the wall of tunnel alternate between positive and negative. The coefficient of pressure wave on the car body is -0.7 and the peak values of pressure coefficient of point on tunnel are 0.6 and -0.7. The amplitude of the pressure wave on the car decreases according to logarithmic law nearly. The amplitude of the micro pressure wave is proportion to the cubic of the car speed.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 3456-3462
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.3456
• Online since: May 2011
• Authors: Guang Jun Gao, Xiao Ya Wang, Lei Zhang, Qi Jin
• Keywords: Container Car, Micro-Pressure Wave, Moving Model Test, Pressure Oscillation in Tunnel

References

[1] Hassan Hemida, Siniša Krajnovic. LES Study of the Influence of a Train-Nose Shape on the Flow Structures Under Cross-Wind Conditions. Journal of Fluids Engineering. Vol. 130 (2008), pp.0911011-09110112

DOI: 10.1115/1.2953228

[2] Hassan Hemida, Nahia Gil, Chris Baker. LES of the slipstream of a Rotating Train. Journal of Fluids Engineering. Vol. 132 (2010), pp.0511031-0511039

DOI: 10.1115/1.4001447

[3] W. Khier, M. Breuer, F. Durst. Flow structure around trains under side wind conditions: a numerical study. Computers & Fluids. Vol. 29 (2000), pp.179-195

DOI: 10.1016/s0045-7930(99)00008-0

[4] Sinisˇ a Krajnovic, Lars Davidson. Influence of floor motions in wind tunnels on the aerodynamics of road vehicles. Journal of Wind Engineering and Industrial Aerodynamics. Vol. 93 (2005), pp.677-696

DOI: 10.1016/j.jweia.2005.05.002

[5] Chang-Hoon Shin, Warn-Gyu Park. Numerical study of flow characteristics of the high speed train entering into a tunnel. Mechanics Research Communications. Vol. 30 (2003), pp.287-296

DOI: 10.1016/s0093-6413(03)00025-9

[6] J.K. Mok, J. Yoo. Numerical study on high speed train and tunnel hood interaction. Journal of Wind Engineering and Industrial Aerodynamics. Vol. 89 (2001), pp.17-29

DOI: 10.1016/s0167-6105(00)00021-0

[7] Hassan Hemida, Siniša Krajnovic. Transient Simulation of the Aerodynamic Response of a Double-Deck Bus in Gusty Winds. Journal of Fluids Engineering. Vol. 131 (2009), pp.0311011-03110110

DOI: 10.1115/1.3054288

[8] Emmanuel Guilmineau, Francis Chometon. Effect of Side Wind on a Simplified Car Model:Experimental and Numerical Analysis. Journal of Fluids Engineering. Vol. 131 (2009), pp.0211041-02110412

DOI: 10.1115/1.3063648

[9] Hyeok-bin Kwon, Young-Whe Park, Dong-ho Lee, Moon-Sang Kim. Wind tunnel experiments on Korean high-speed trains using various ground simulation techniques. Journal of Wind Engineering and Industrial Aerodynamics. Vol. 89 (2001), pp.1179-1195

DOI: 10.1016/s0167-6105(01)00107-6

[10] Federico Cheli, Roberto Corradi, Daniele Rocchi, Gisella Tomasini, Emilio Maestrini. Wind tunnel tests on train scale models to investigate the effect of infrastructure scenario. Journal of Wind Engineering and Industrial Aerodynamics, Vol. 98 (2010), pp.353-362

DOI: 10.1016/j.jweia.2010.01.001

[11] Marco Bocciolone, Federico Cheli, Roberto Corradi, Sara Muggiasca, Gisella Tomasini. Crosswind action on rail vehicles: Wind tunnel experimental analyses. Journal of Wind Engineering and Industrial Aerodynamics, Vol. 96 (2008), P. 584-610

DOI: 10.1016/j.jweia.2008.02.030

[12] N. Gil, C. J. Baker, C. Roberts, A. Quinn. Passenger Train Slipstream Characterization Using a Rotating Rail Rig. Journal of Fluids Engineering. Vol. 132 (2010), P. 0614011-06140111

DOI: 10.1115/1.4001577
