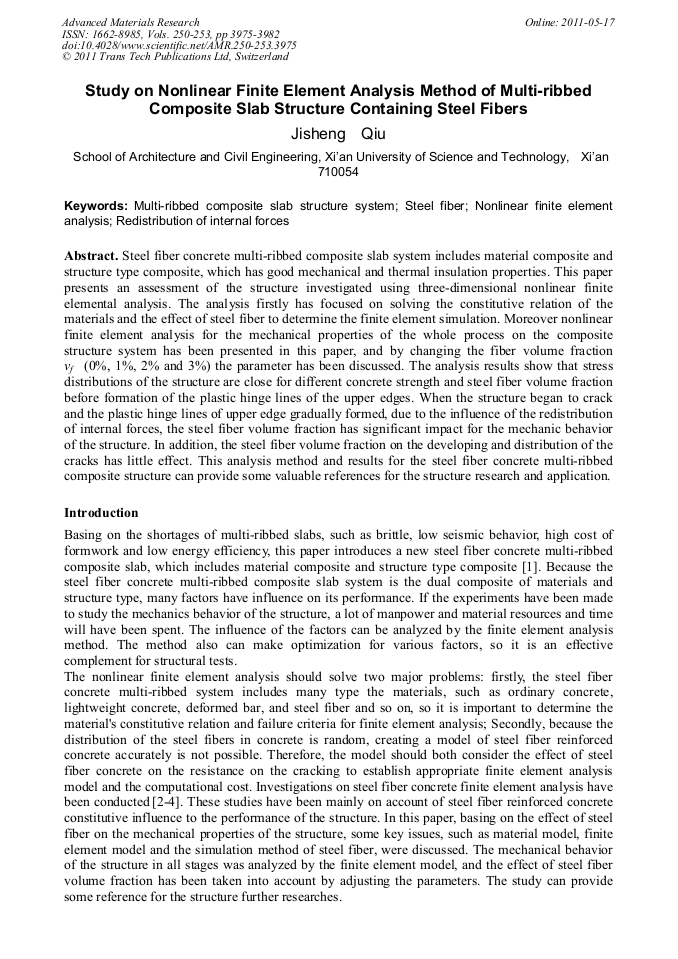

Study on Nonlinear Finite Element Analysis Method of Multi-Ribbed Composite Slab Structure Containing Steel Fibers

Abstract:

Steel fiber concrete multi-ribbed composite slab system includes material composite and structure type composite, which has good mechanical and thermal insulation properties. This paper presents an assessment of the structure investigated using three-dimensional nonlinear finite elemental analysis. The analysis firstly has focused on solving the constitutive relation of the materials and the effect of steel fiber to determine the finite element simulation. Moreover nonlinear finite element analysis for the mechanical properties of the whole process on the composite structure system has been presented in this paper, and by changing the fiber volume fraction v_f (0%, 1%, 2% and 3%) the parameter has been discussed. The analysis results show that stress distributions of the structure are close for different concrete strength and steel fiber volume fraction before formation of the plastic hinge lines of the upper edges. When the structure began to crack and the plastic hinge lines of upper edge gradually formed, due to the influence of the redistribution of internal forces, the steel fiber volume fraction has significant impact for the mechanic behavior of the structure. In addition, the steel fiber volume fraction on the developing and distribution of the cracks has little effect. This analysis method and results for the steel fiber concrete multi-ribbed composite structure can provide some valuable references for the structure research and application.

• Periodical: Advanced Materials Research (Volumes 250-253)
• Pages: 3975-3982
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.250-253.3975
• Online since: May 2011
• Authors: Ji Sheng Qiu
• Keywords: Multi-Ribbed Composite Slab Structure System, Nonlinear Finite Element Analysis, Redistribution of Internal Forces, Steel Fiber (SF)

References

[1] Jisheng Qiu. Pseudo-Plate Method for the Design of High-strength Concrete Prestressed Waffle Slab ContainingSteel Fiber, China doctors forum(civil engineering), Changsha,2009: 386-391.

[2] S.K. Padmarajaiah , Ananth Ramaswamy. Cement & Concrete Composites, 2002,(24): 229–241.

[3] Jianjing Jian, Xinzheng Lu, Ye lieping. Finite element analysis of concrete structures. Beijing: Tsinghua university Press, 2005.(In Chinese)

[4] Bo Zhang, Hetai Sheng. ANSYS finite element analysis theory and applications in civil engineering. Beijing: Tsinghua university Press, 2005. (In Chinese)

[5] Faella D A, Naaman A E. ACI Journal, 1985,82(4):475-483.

[6] M. A. Mansur, M. S. Chin, T. H. Wee. Journal of material in civil engineering, 1999:21-29

[7] Hsu. L. S. and Hsu. T.. ACI Structure Journal, 1994,91(4):448-457

[8] Jisheng Qiu. Study on Calculation Method of the Ultimate Torque of Steel Fiber Concrete Edge Beams in Torsion. the 3rd international conference on the concrete future, October 17-19 2008, Yantai, China

[9] ANSYS: 5.5. Theory Reference Manual. In: Kohnke P, editor.Elements Reference Manual. 8th ed. September 1998.
