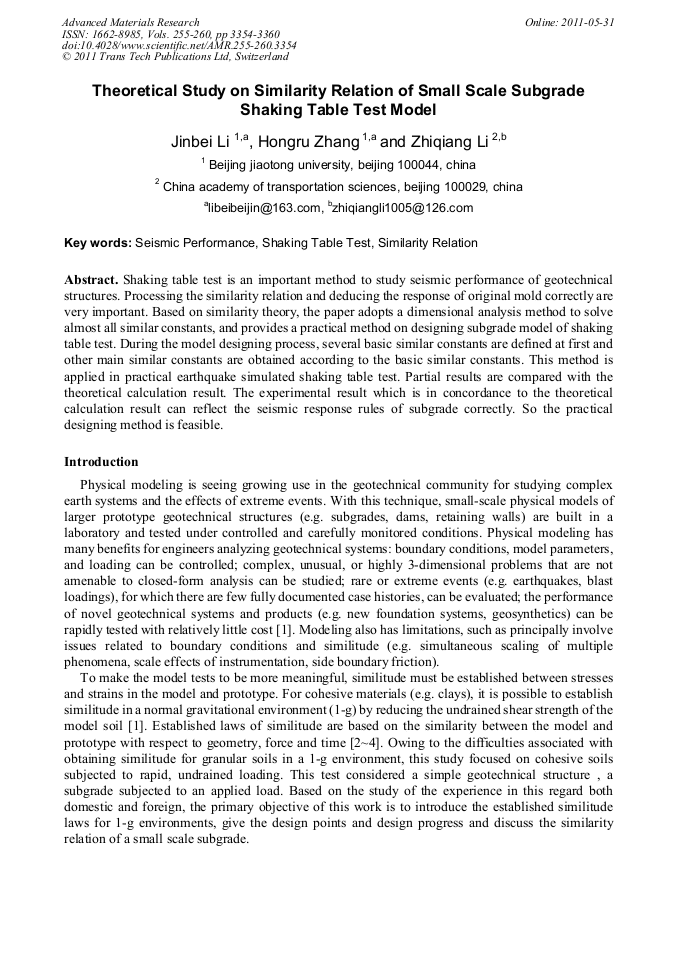

Theoretical Study on Similarity Relation of Small Scale Subgrade Shaking Table Test Model

Abstract:

Shaking table test is an important method to study seismic performance of geotechnical structures. Processing the similarity relation and deducing the response of original mold correctly are very important. Based on similarity theory, the paper adopts a dimensional analysis method to solve almost all similar constants, and provides a practical method on designing subgrade model of shaking table test. During the model designing process, several basic similar constants are defined at first and other main similar constants are obtained according to the basic similar constants. This method is applied in practical earthquake simulated shaking table test. Partial results are compared with the theoretical calculation result. The experimental result which is in concordance to the theoretical calculation result can reflect the seismic response rules of subgrade correctly. So the practical designing method is feasible.

• Periodical: Advanced Materials Research (Volumes 255-260)
• Pages: 3354-3360
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.255-260.3354
• Online since: May 2011
• Authors: Jin Bei Li, Hong Ru Zhang, Zhi Qiang Li
• Keywords: Seismic Performance, Shaking Table Test, Similarity Relation

References

[1] F. Ozkahriman and J. Wartman: Investigation of 1-g similitude laws by "modeling-of-models" exercise. Submitted to Advances in Measurement and Modeling of Soil Behavior (2007)

DOI: 10.1061/40917(236)21

[2] Clough, R.W. and Pirtz, D: Earthquake resistance of rock fill dams. Submitted to Journal of Soil Mechanics and Foundation Div., ASCE, 82(SM2)(1956)

DOI: 10.1061/jsfeaq.0000010

[3] Roscoe, K: Soils and model tests. Submitted to J. of Strain Analysis, 3(1), 57-64 (1968)

[4] Iai, S: Similitude for shaking table test on soil-structure-fluid model in 1.0-g gravitational field. Submitted to Soil and Foundation, JSSMFE, 29 (1), 105-118 (1989)

DOI: 10.3208/sandf1972.29.105

[5] Li Deyin, Wang Bangmei and Lin Yachao. Structure model test. (SciencePress, Beijing 1996)

[6] Zuo Dongqi, et. The theories and methods for the modeling. (China Water Power Press,Beijing 1996)

[7] LIU Xiaosheng, WANG Zhongning, WANG Xiaogang, et: Shaking table model test and dynamic analysis of core faceplate rockfill dam.(China Water Power Press, Beijing 2005)
