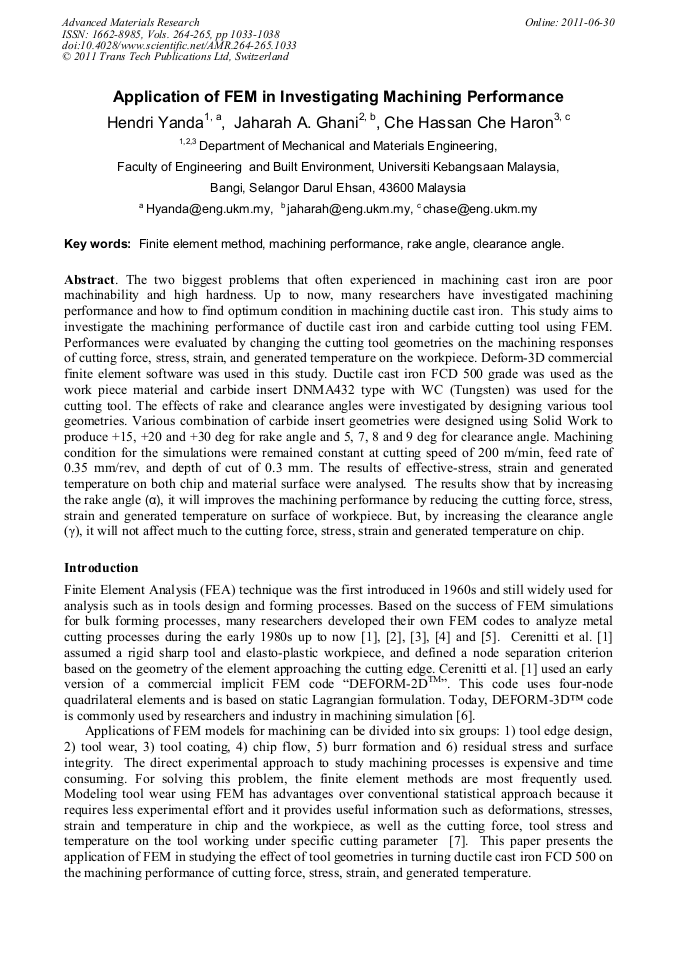

Application of FEM in Investigating Machining Performance

Abstract:

The two biggest problems that often experienced in machining cast iron are poor machinability and high hardness. Up to now, many researchers have investigated machining performance and how to find optimum condition in machining ductile cast iron. This study aims to investigate the machining performance of ductile cast iron and carbide cutting tool using FEM. Performances were evaluated by changing the cutting tool geometries on the machining responses of cutting force, stress, strain, and generated temperature on the workpiece. Deform-3D commercial finite element software was used in this study. Ductile cast iron FCD 500 grade was used as the work piece material and carbide insert DNMA432 type with WC (Tungsten) was used for the cutting tool. The effects of rake and clearance angles were investigated by designing various tool geometries. Various combination of carbide insert geometries were designed using Solid Work to produce +15, +20 and +30 deg for rake angle and 5, 7, 8 and 9 deg for clearance angle. Machining condition for the simulations were remained constant at cutting speed of 200 m/min, feed rate of 0.35 mm/rev, and depth of cut of 0.3 mm. The results of effective-stress, strain and generated temperature on both chip and material surface were analysed. The results show that by increasing the rake angle (α), it will improves the machining performance by reducing the cutting force, stress, strain and generated temperature on surface of workpiece. But, by increasing the clearance angle (γ), it will not affect much to the cutting force, stress, strain and generated temperature on chip.

• Periodical: Advanced Materials Research (Volumes 264-265)
• Pages: 1033-1038
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.264-265.1033
• Online since: June 2011
• Authors: Hendri Yanda, Jaharah A. Ghani, Che Hassan Che Haron
• Keywords: Clearance Angle, Finite Element Model (FEM), Machining Performance, Rake Angle

References

[1] T.D. Marusich and Ortiz: Modeling and Simulation of High-Speed Machining, To appear: International Jour. Num. Metallurgy Engineering. (1995).

[2] A. E. Cerenitti, B.P. Fallbohmer, W. Wu C. W and Altan B. T: Application of 2D FEM to Chip Formation in Orthogonal Cutting, Jour. of materials Processing Technology Vol. 59 (1996), pp.169-180.

DOI: 10.1016/0924-0136(96)02296-0

[3] J. Q. Xie, A. E. Bayoumi, and H. M. Zbib: FEA Modelling and Simulation of Shear Localized Chip Formation in Metal Cutting, Jour. of Materials Processing Technology Vol. 38 (1998), pp.1067-1087.

DOI: 10.1016/s0890-6955(97)00063-1

[4] C. Shet: Finite Element Analysis of the Orthogonal Metal Cutting Process, Jour. of Materials Processing Technology Vol. 105 (2000), pp.95-109.

DOI: 10.1016/s0924-0136(00)00595-1

[5] A.E. Cerenitti, C. Lazzaroni, L. Menegardo and B.T. Altan: Turning Simulation Using a Three- Dimensional FEM Code, Jour. of materials Processing Technology Vol. 98 (2000), pp.99-103.

DOI: 10.1016/s0924-0136(99)00310-6

[6] O.H. Columbus, in : DeformTM - 3D Machining (Turning) Lab, Scientific Forming Tech. Corporation (2007).

[7] J. Mackerle: Finite Element Analysis and Simulation of Machining: a Bibliography (1976 –1996), Jour. of Materials Processing Technology Volume 86 (1999), pp.17-44.

DOI: 10.1016/s0924-0136(98)00227-1

[8] P. L. B. Oxley, in: Mechanics of Machining: An Analytical Approach to Assessing Machinability, Ellis Horwood, Chichester, West Sussex (1989), p.223–227.

[9] V. Kalhori, in: Modelling and Simulation of Mechanical Cutting, Doctoral Thesis, Institutionen for Maskinteknik, Sweden (2001).

[10] M. G. Gunay, I. Korkut, E. Aslan and U. S. Eker: Experimental investigation of the effect of cutting tool rake angle on main cutting force, Jour. of Materials Processing Technology Vol. 166 (2005), p.44–49.

DOI: 10.1016/j.jmatprotec.2004.07.092

[11] E. M. Trent, in: Metal Cutting, Butterworth - Heinmann Ltd, London (1991).
